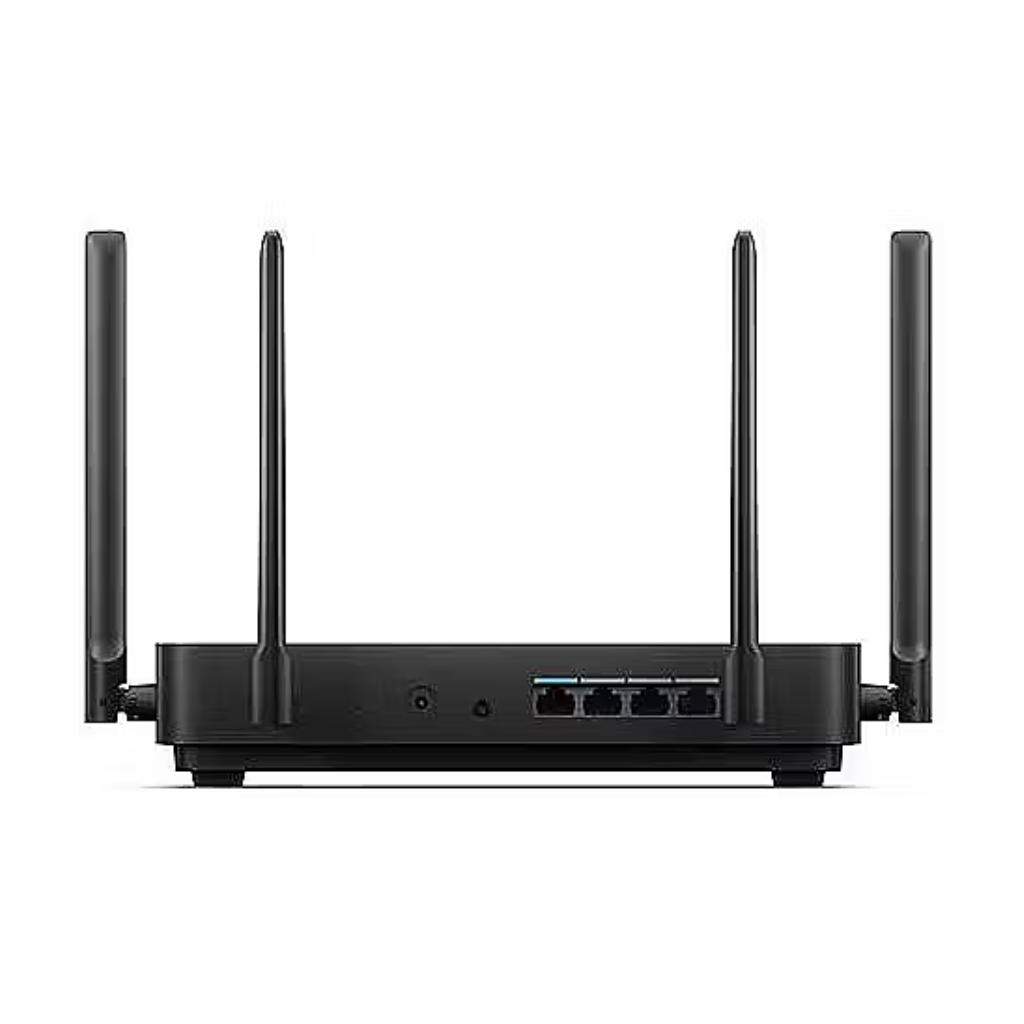

Xiaomi RB01 AX3200 Router

Product Dimensions & Design

Model: Xiaomi Router AX3200
Dimensions (L × W × H): 284 × 186 × 186 mm
Color: Black

Processor & Hardware

CPU: MediaTek Filogic 800 Dual-Core A53 Processor @ 1.35GHz
Memory (RAM): 256MB
Antennas: External omnidirectional antennas

Wireless Technology (Wi-Fi 6 Router)

Wireless Type: Dual-Band Wi-Fi (2.4GHz & 5GHz)

2.4GHz Wireless
4×4
Supports IEEE 802.11n
Theoretical maximum speed: up to 800Mbps

5GHz Wireless
4×4
Supports IEEE 802.11ax (Wi-Fi 6)
Theoretical maximum speed: up to 2402Mbps

Wired Connectivity & Ports

WAN Port:
1 × 10/100/1000Mbps adaptive WAN (Auto MDI/MDIX)
LAN Ports:
3 × 10/100/1000Mbps adaptive LAN (Auto MDI/MDIX)

Buttons & Indicators

LED Indicators:
System Indicator ×1
Internet Indicator ×1
System Reset Button: ×1
Mesh Networking Button: ×1
Power Input Port: ×1

Network & Protocol Standards

Wireless Standards: IEEE 802.11a / b / g / n / ac / ax
Wired Standards: IEEE 802.3 / 3u / 3ab

Wireless Modulation

802.11b: DSSS – DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
802.11a/g: OFDM – BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
802.11n: MIMO-OFDM – BPSK, QPSK, 16QAM, 64QAM, 256QAM
802.11ac: MIMO-OFDM – BPSK, QPSK, 16QAM, 64QAM, 256QAM
802.11ax: MIMO-OFDM – BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Software & Security

Operating System: MiWiFi ROM (based on OpenWRT)
Wi-Fi Security: WPA-PSK / WPA2-PSK / WPA3-SAE
Management: Web Interface, Android App, iOS App

Operating Conditions

Operating Temperature: 0°C – 40°C
Operating Humidity: 10% – 90% RH (non-condensing)
Storage Temperature: −40°C – 70°C
Storage Humidity: 5% – 90% RH (non-condensing)

Package Contents

Xiaomi Router AX3200 ×1
User Manual ×1
Power Cord ×1
Network Cable ×1
