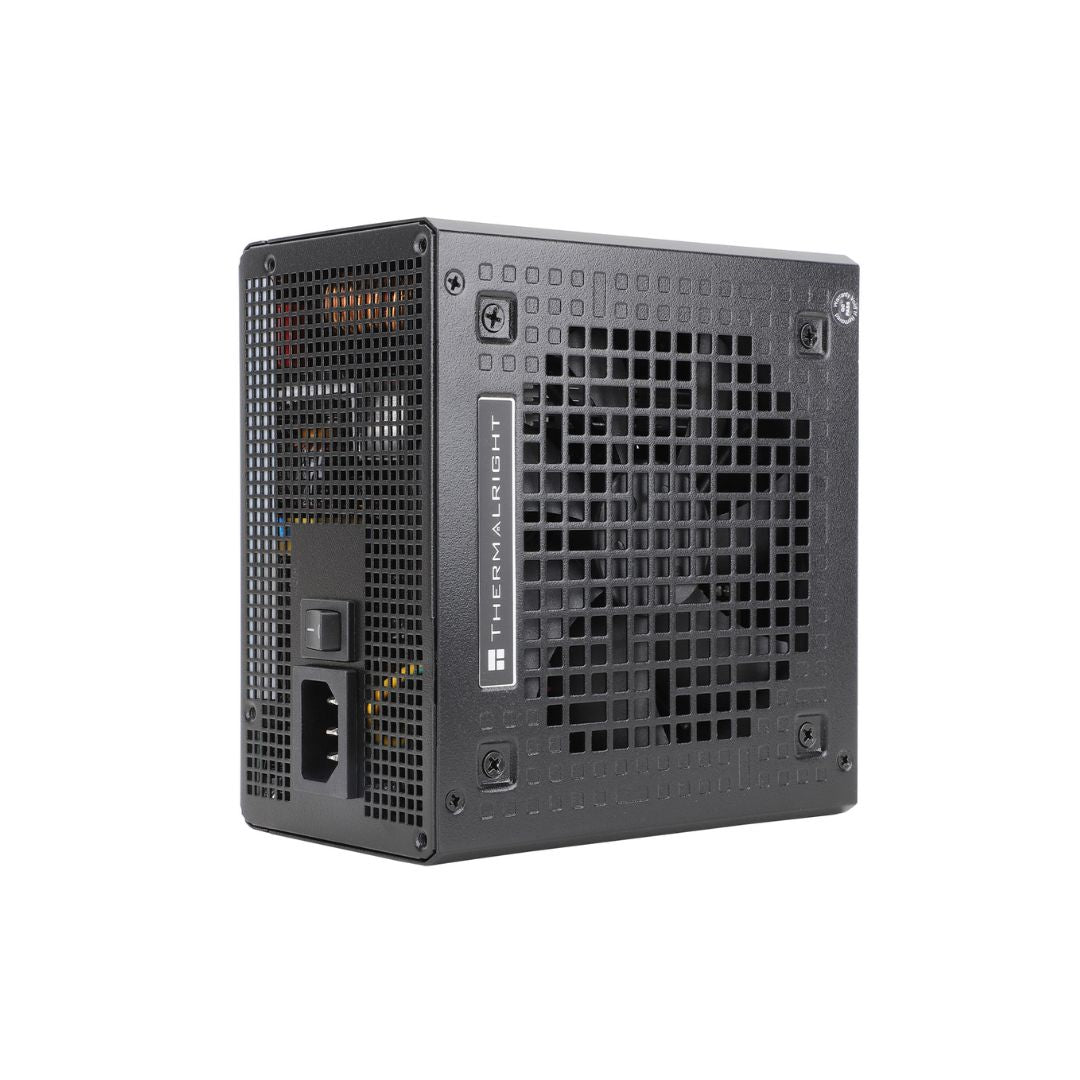

Thermalright TR-TG 1200W 80+ Gold Full Modular Power Supply
Power Supply Specification
• Power Watt: 1200W
• Efficiency Rating: 80 PLUS Gold
• ATX Standard: ATX 3.0
• PCIe Standard: PCIe 5.0

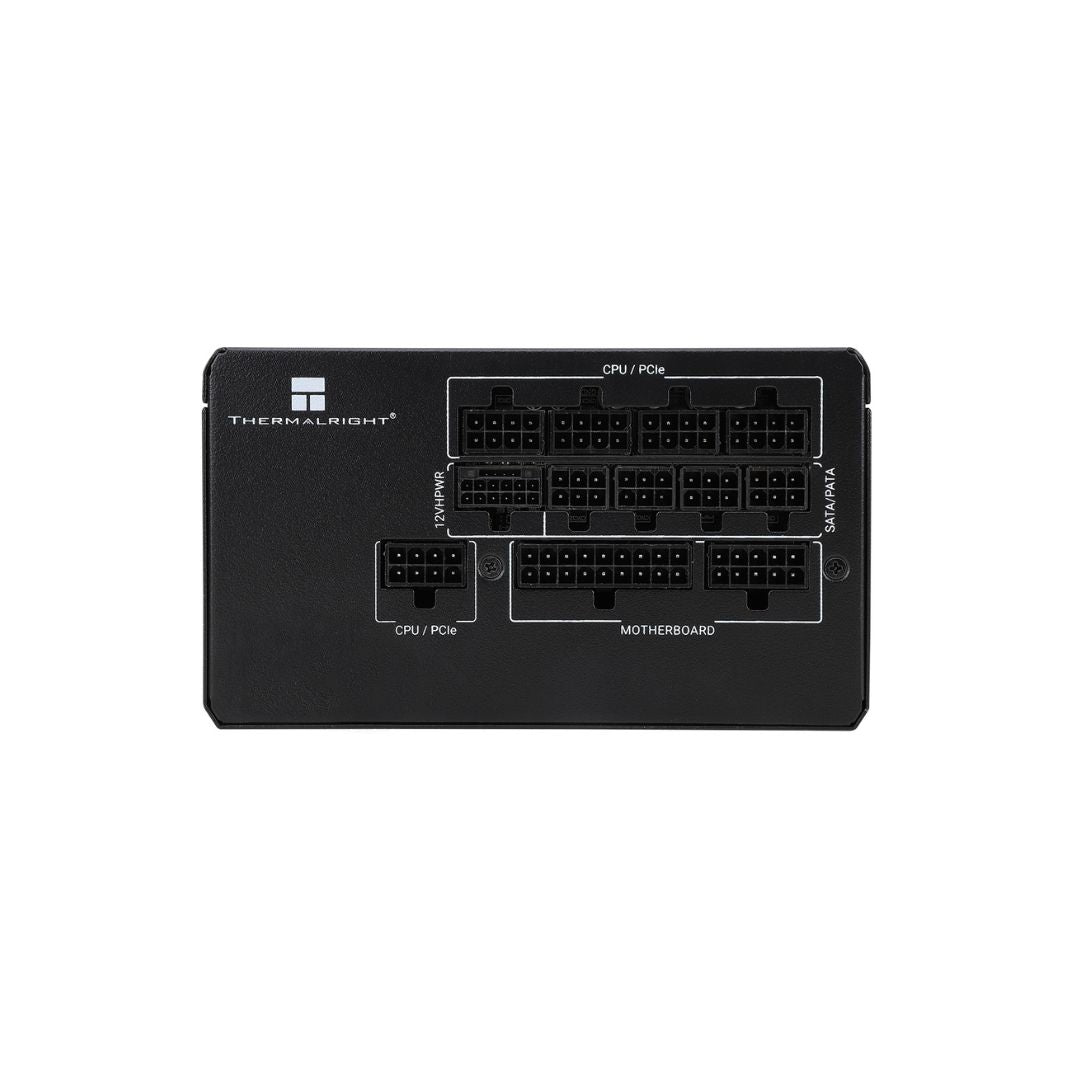

• Modular: Full Modular
• Fan Size: 120mm
• Fan Control: Intelligent Temperature-Controlled Start/Stop
• Dimensions (DxWxH): 150 × 140 × 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100–240V AC
• Input Current: 15–7.5A
• Input Frequency: 47–63Hz
• Operating Temperature: 0–40°C
• MTBF: More than 100,000 Hours
• Protection: OPP / OVP / OTP / OCP / SCP / UVP
• Circuit Design: LLC Resonance + DC-DC
• Capacitors: 105°C Temperature-Resistant Electrolytic Capacitors
• ATX (24 pin): 1 × 20+4 Pin
• ATX PCIe (GPU): 1 × PCIe 5.0 12+4 Pin 12VHPWR
• EPS (4+4 pin): 2
• PCI-E (6+2 pin): 3 Modular Cables
• SATA (15 pin): SATA Modular Cables Included
• MOLEX (4 pin): PATA / Molex Modular Cables Included
