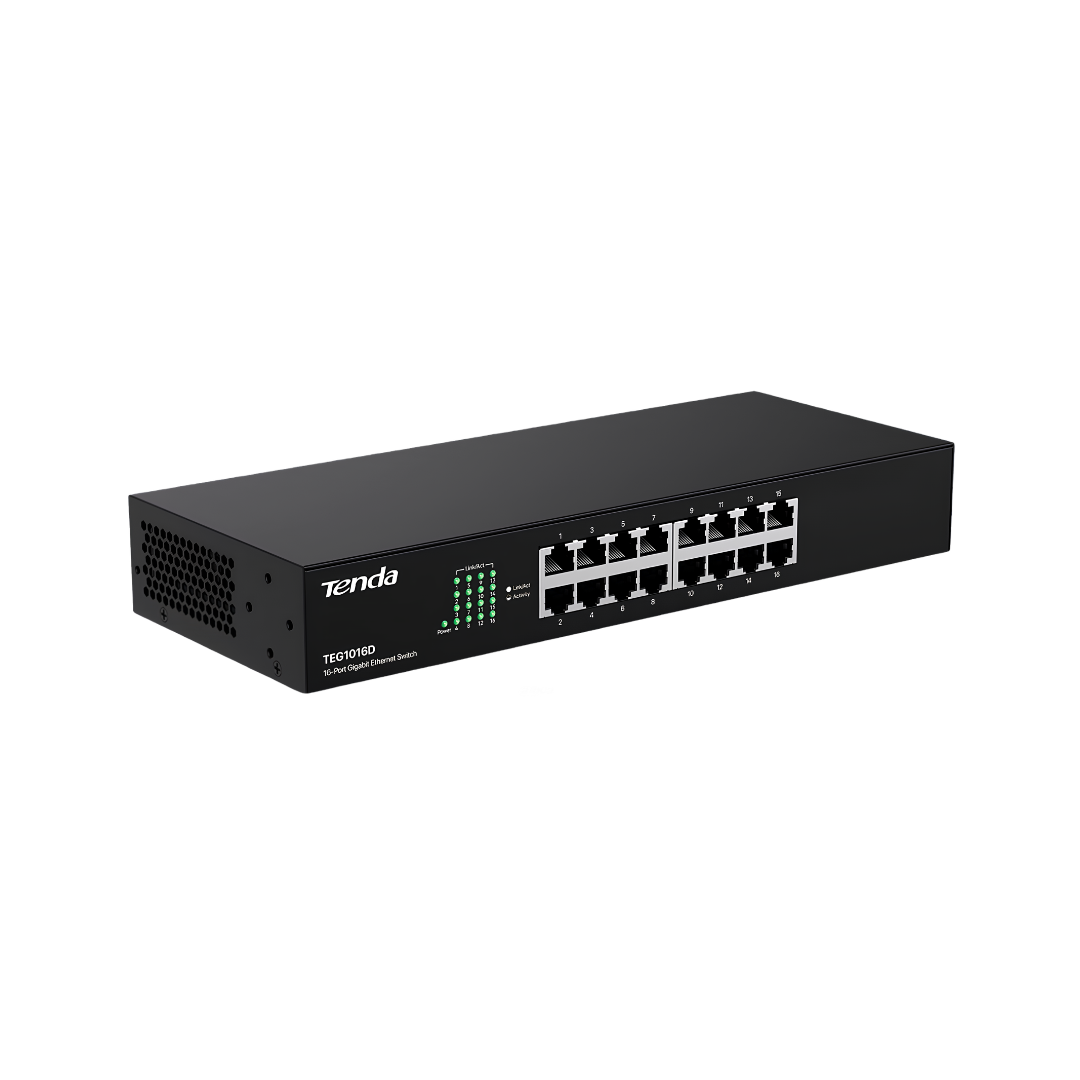

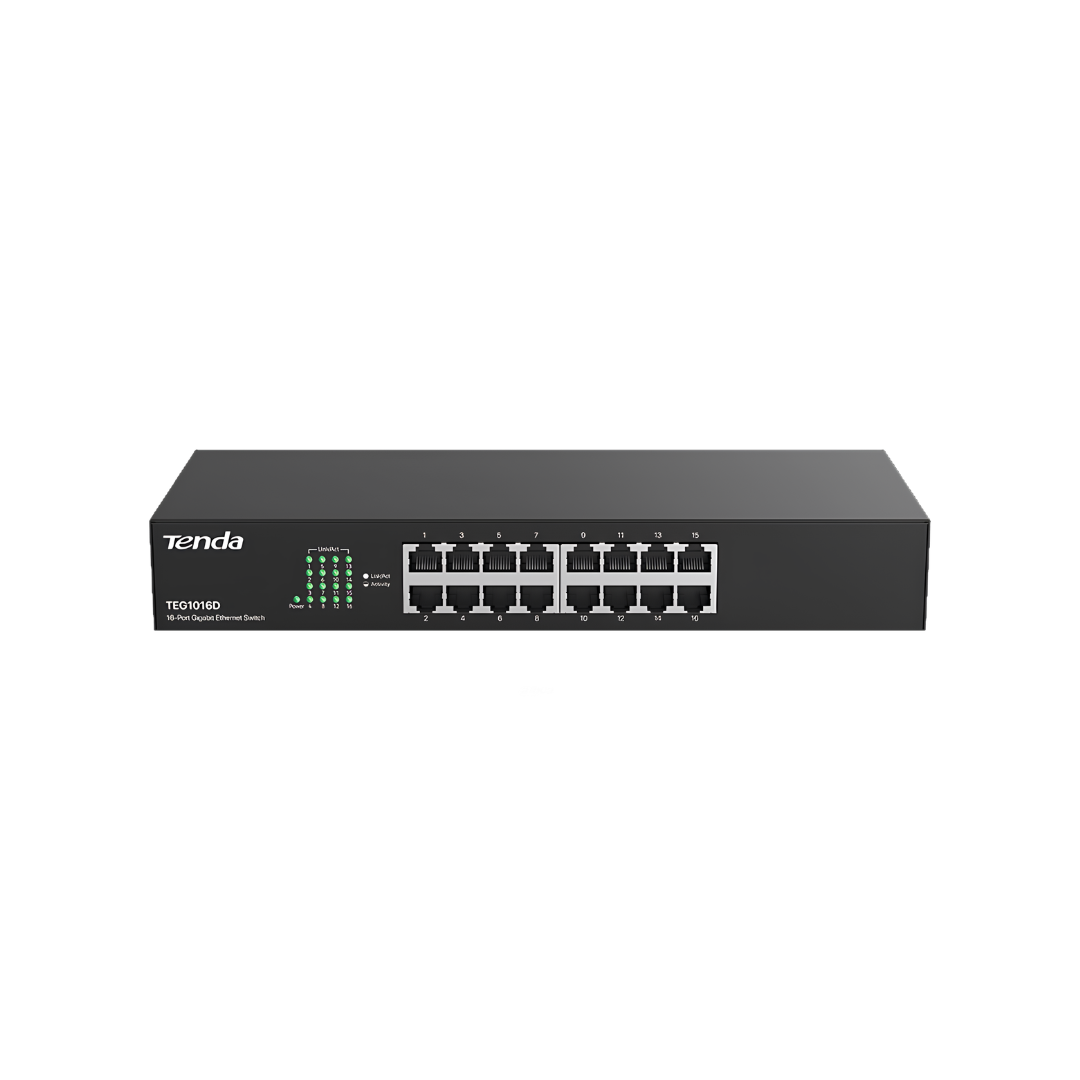

Tenda TEG1016D 16-Port Gigabit - Ethernet Network Switch
Network Switch Specification
• Model: Tenda TEG1016D
• Product Type: 16-Port Gigabit Ethernet Switch
• Ethernet Ports: 16 × 10/100/1000Mbps RJ45
• Port Speed: 10/100/1000Mbps Auto-Negotiation
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
• Switching Capacity: 32Gbps
• Forwarding Rate: 23.8Mpps
• MAC Address Table: 8K
• Packet Buffer: 2Mb
• Jumbo Frame: 10K
• Forwarding Mode: Store-and-Forward
• Transmission Media: CAT3 or Better for 10Mbps, CAT5 or Better for 100Mbps, CAT5e or Better for Gigabit Ethernet
• LED Indicators: Link/Act per Port, Power LED
• PoE: No
• Cooling: Fanless
• Housing Material: Metal
• Lightning Protection: Up to 6kV on Ethernet Ports
• ESD Protection: ±8kV Air Discharge, ±6kV Contact Discharge
• Power Input: 100–240V AC, 50/60Hz, 0.4A
• Power Adapter Output: 12V / 1A
• Maximum Power Consumption: <12W
• Mounting: Desktop / Wall Mount
• Dimensions: 235 × 103 × 27mm
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% RH, Non-Condensing
• Certifications: CE, FCC, RoHS
