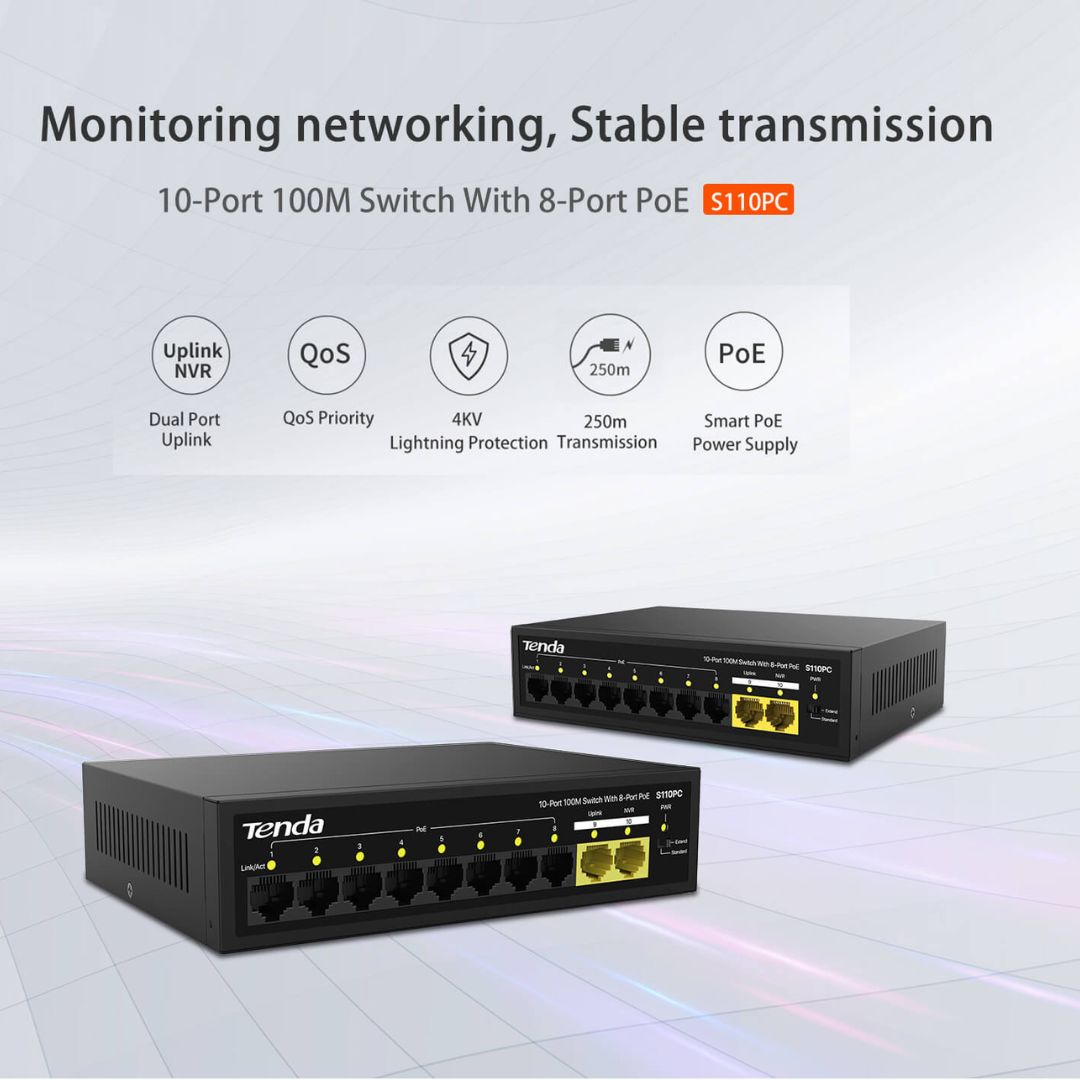

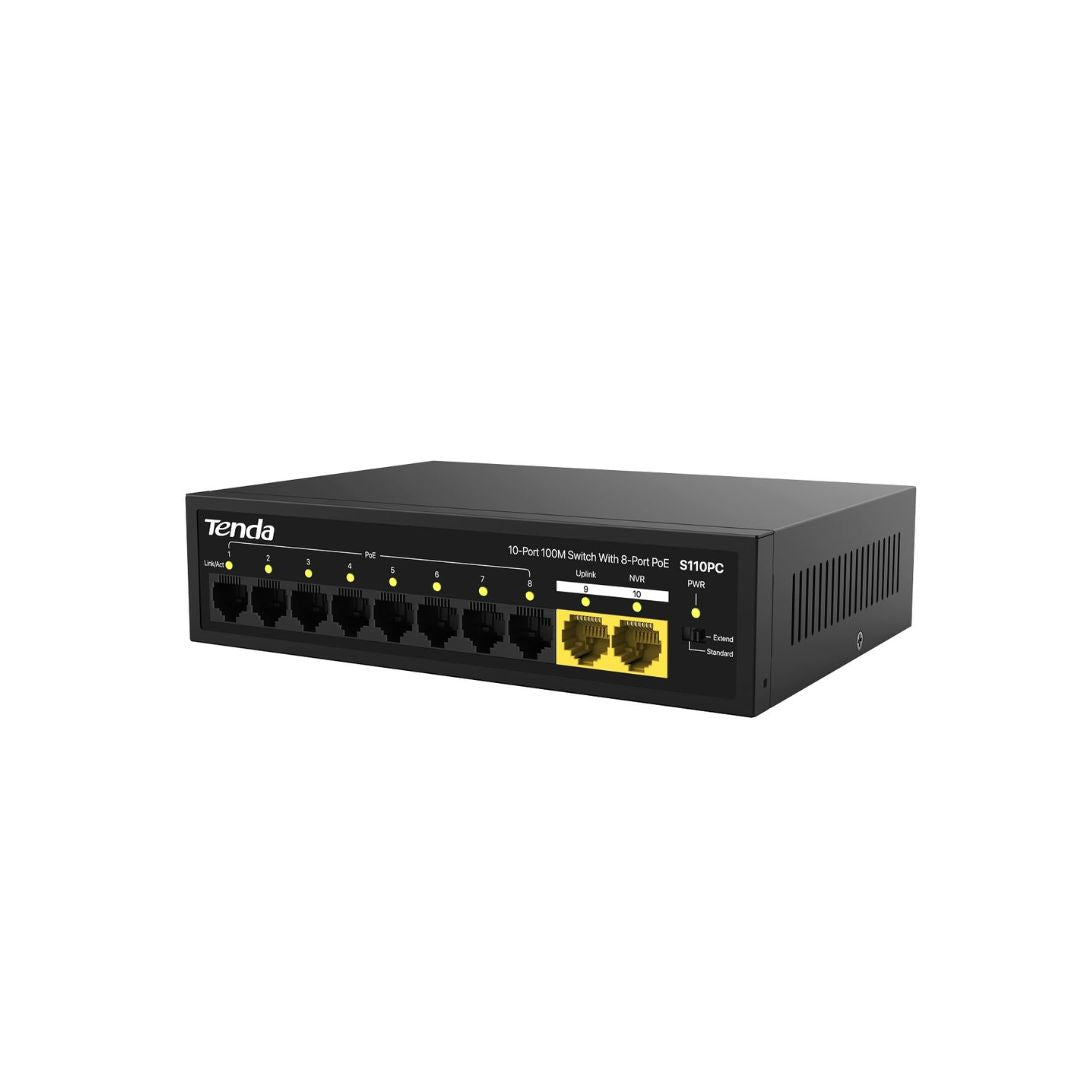

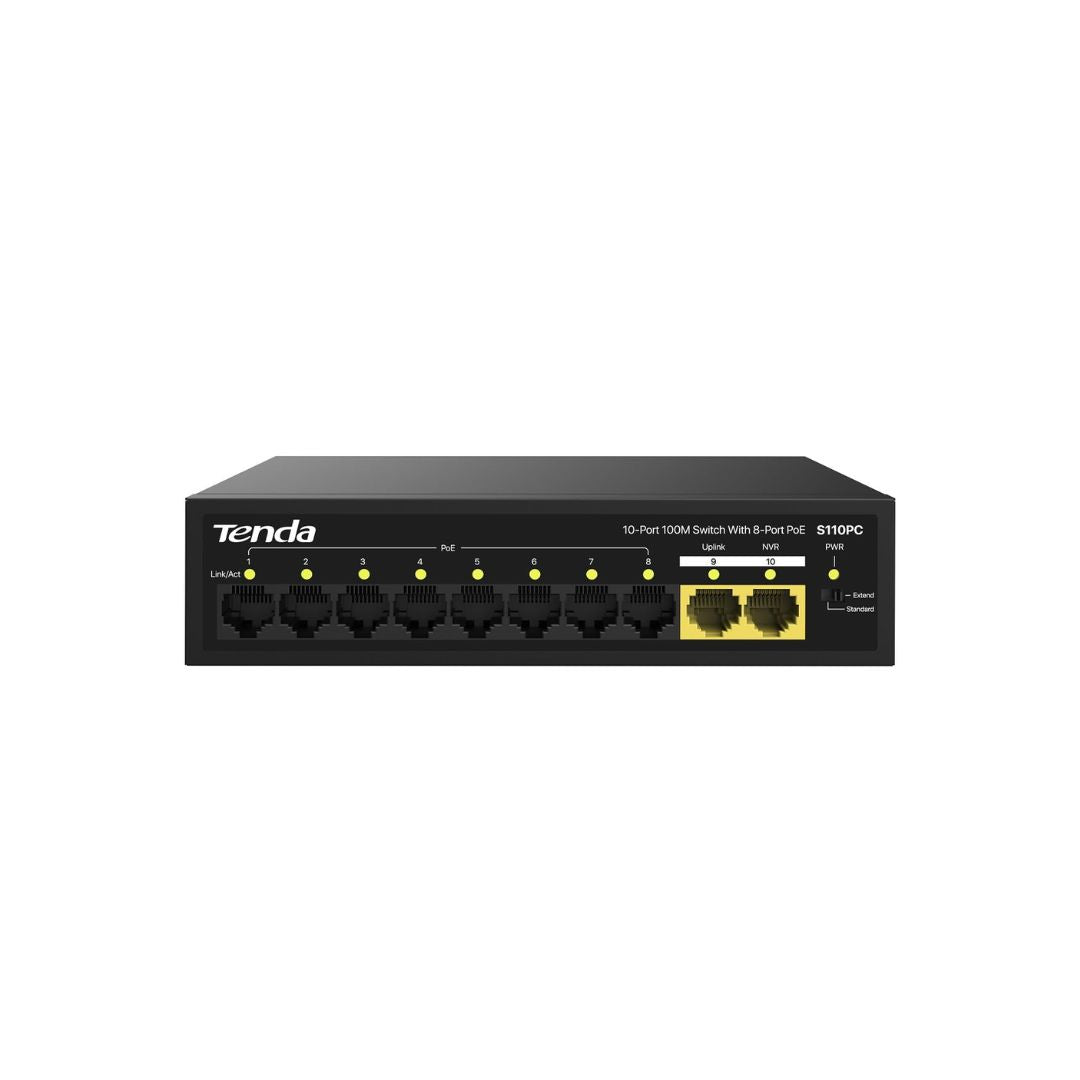

Tenda S110PC 10-Port 10/100Mbps PoE - Ethernet Network Switch

Network Switch Specification

• Model: Tenda S110PC
• Product Type: 10-Port 100Mbps Unmanaged PoE Switch
• Ethernet Ports: 8 × 10/100Mbps PoE+ RJ45 + 2 × 10/100Mbps Uplink RJ45
• PoE Ports: 8
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• Maximum PoE Output per Port: 30W
• PoE Budget: 80W
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Switching Capacity: 2Gbps
• Packet Forwarding Rate: 1.49Mpps
• MAC Address Table: 1K
• Forwarding Mode: Store-and-Forward
• Transmission Distance: Up to 250m in Extend Mode
• Operating Modes: Default, Extend
• QoS: Supported
• Transmission Media: CAT5 / CAT5e UTP or Better
• LED Indicators: 10 × Link/Act, 1 × Power
• Management: Unmanaged, Plug and Play
• Protection: 4kV
• Power Input: 190–240V AC, 50/60Hz
• Mounting: Desktop / Wall Mount
• Dimensions: 175 × 127 × 43mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% RH, Non-Condensing
