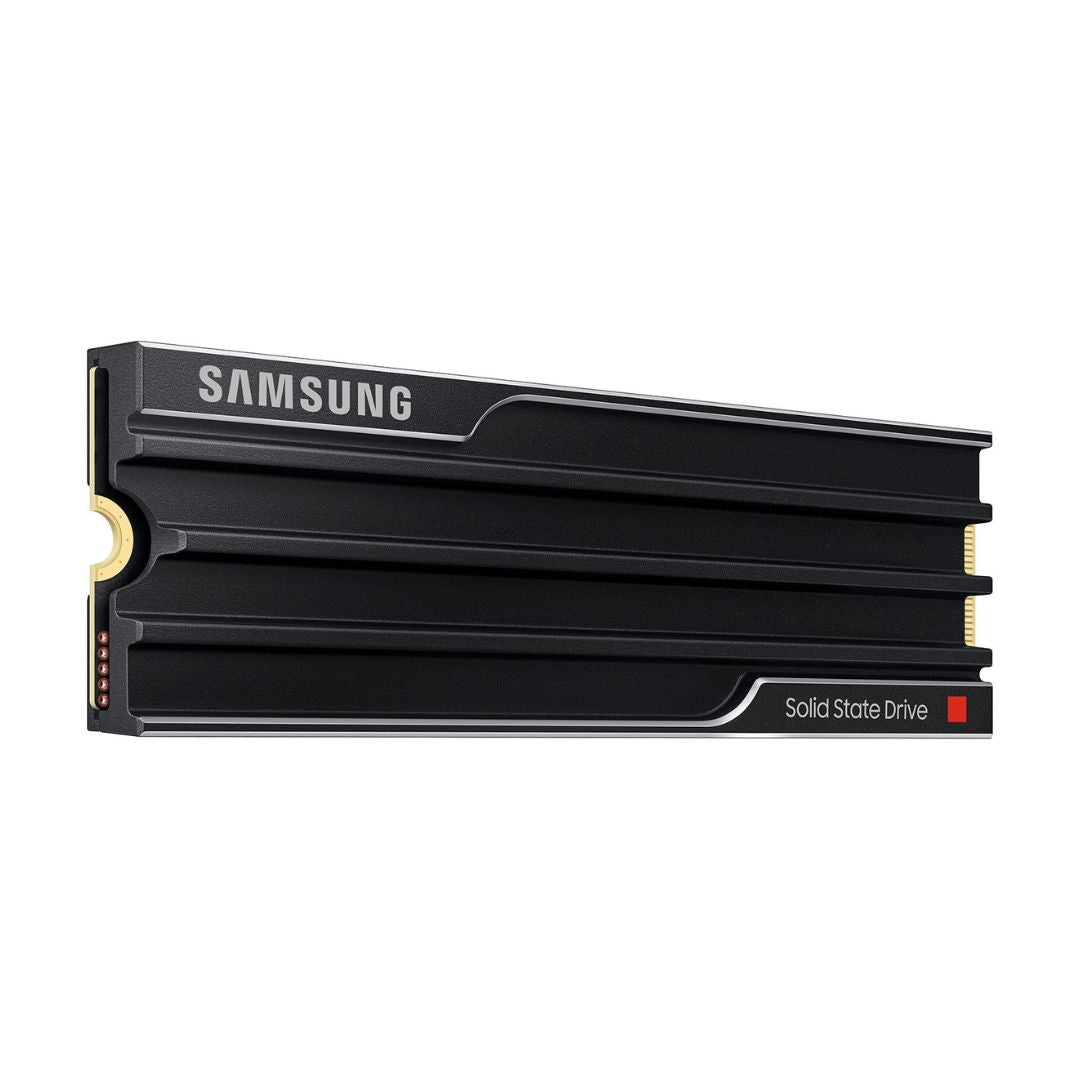

SAMSUNG 9100 PRO 1TB PCIe 5.0 NVMe™ M.2 SSD with Heatsink

Product Title

• Title: Samsung 1TB | PCIe 5.0 | Heatsink | 9100 PRO SSD

General

• Brand: Samsung
• Series: 9100 PRO with Heatsink
• Model: MZ-VAP1T0CW
• Product Type: Internal SSD
• Capacity: 1TB
• Form Factor: M.2 2280
• Interface: PCIe 5.0 ×4, NVMe 2.0

Performance

• Sequential Read: Up to 14,700 MB/s
• Sequential Write: Up to 13,300 MB/s
• Random Read: Up to 1,850K IOPS
• Random Write: Up to 2,600K IOPS
• MTBF: 1.5 million hours

Features

• Controller: Samsung In-House Controller
• NAND: Samsung V-NAND TLC
• Cache: 1GB LPDDR4X
• Heatsink: Pre-Installed Heatsink
• TRIM Support: Supported
• S.M.A.R.T Support: Supported
• Garbage Collection: Supported
• Encryption: AES 256-bit, TCG/Opal V2.0, Encrypted Drive IEEE1667
• Endurance: 600 TBW
• Warranty: 5 Years Limited or 600 TBW

Compatibility

• Primary Use: Client PCs, PlayStation 5
• Backward Compatibility: PCIe 4.0 ×4 and PCIe 3.0 ×4

Power

• Active Read Power: 7.6W Average
• Active Write Power: 7.2W Average
• Idle Power PS3: 4.0mW Typical
• Idle Power PS4: 3.3mW Typical

Physical

• Dimensions: 80.15 × 25 × 8.88 mm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% Non-Condensing
• Shock Resistance: 1,500G, 0.5ms, 3 Axis
• Vibration Resistance: 20Hz to 2,000Hz, 20G

Package Contents

• Samsung 9100 PRO with Heatsink 1TB PCIe 5.0 NVMe SSD × 1
• Warranty Statement × 1
