MSI MAG Z890 TOMAHAWK WIFI, Motherboard
Motherboard Specification
• Processor Support: Intel Core Ultra Processors Series 2, LGA1851
• Chipset: Intel Z890
• Memory Support: 4 × DDR5 UDIMM, Up to 256GB, DDR5 9200+ MT/s OC, Dual Channel, Intel XMP 3.0, CUDIMM Support
• Graphics Ports: 1 × HDMI 2.1 FRL, 2 × Thunderbolt 4 Type-C with DisplayPort 2.1
• Expansion Slots: 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x16 Slots
• Storage: 4 × M.2 Slots, 4 × SATA 6Gb/s, RAID 0 / 1 / 5 / 10 Support
• Ethernet: Intel Killer E5000 5Gbps LAN
• Wireless & Bluetooth: Intel Killer BE1750x Wi-Fi 7, Bluetooth 5.4
• USB: Rear USB 10Gbps Type-C / Type-A, USB 5Gbps Type-A, Thunderbolt 4 Type-C; Front USB 20Gbps Type-C, USB 5Gbps Type-A, USB 2.0
• Audio: Realtek ALC1220P, 7.1-Channel HD Audio, S/PDIF Output
• Internal I/O Connectors: 24-Pin ATX, 2 × 8-Pin CPU Power, 1 × 8-Pin PCIe Power, CPU Fan, Pump Fan, 6 × System Fan, ARGB, RGB, Front USB-C, Front USB, TPM, Front Audio

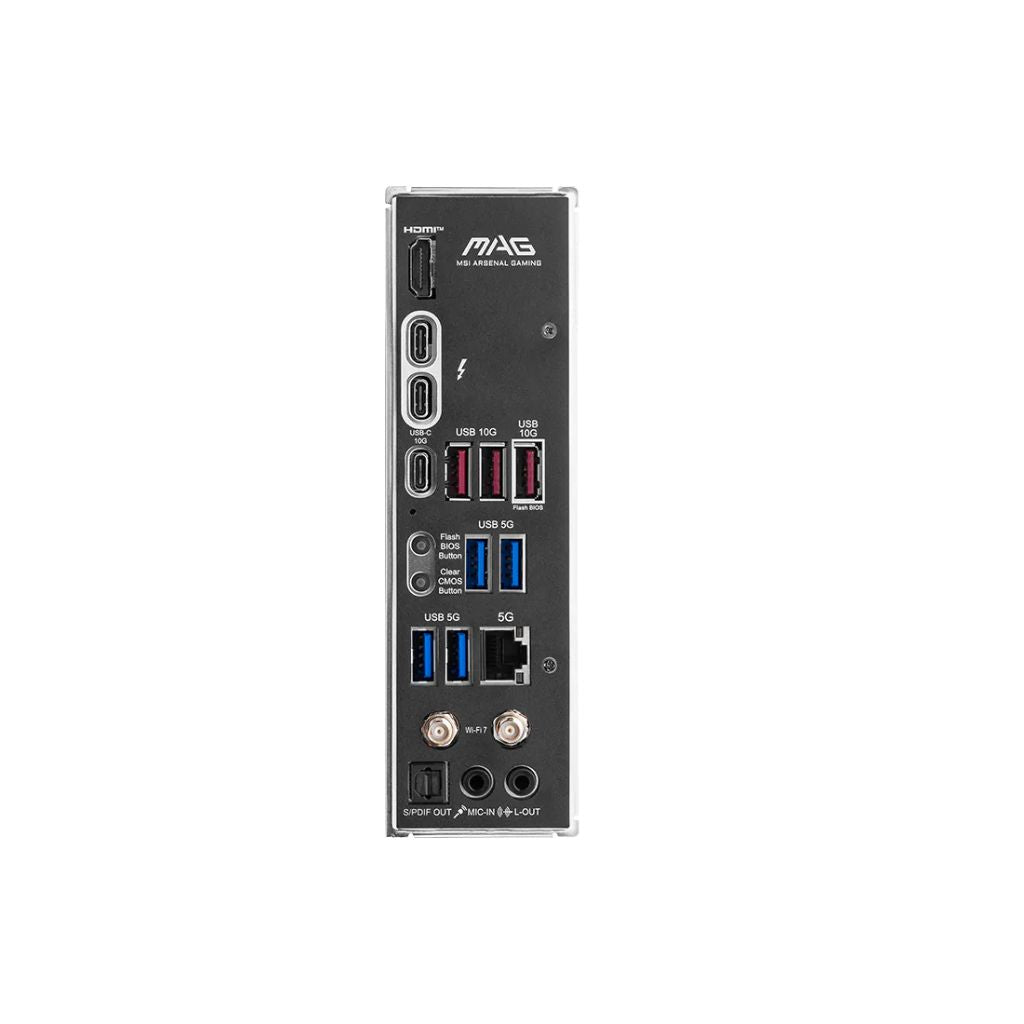

• Back Panel I/O Ports: Flash BIOS Button, Clear CMOS Button, HDMI, 2 × Thunderbolt 4 Type-C, USB Type-C, USB Type-A, 5G LAN, Wi-Fi Antenna Connectors, Audio Jacks, S/PDIF Out
• Form Factor: ATX, 243.84 × 304.8mm
