Huion Inspiroy Dial 2 Q630m Drawing Tablet

Design, Architecture & Working Area

Model: Huion Inspiroy Dial 2 (Q630M)
PC Active Area: 10.5 x 6.56 inches (266.7 x 166.7 mm)
Android Active Area: 166.7 x 83.3 mm (18:9 ratio layout optimization)

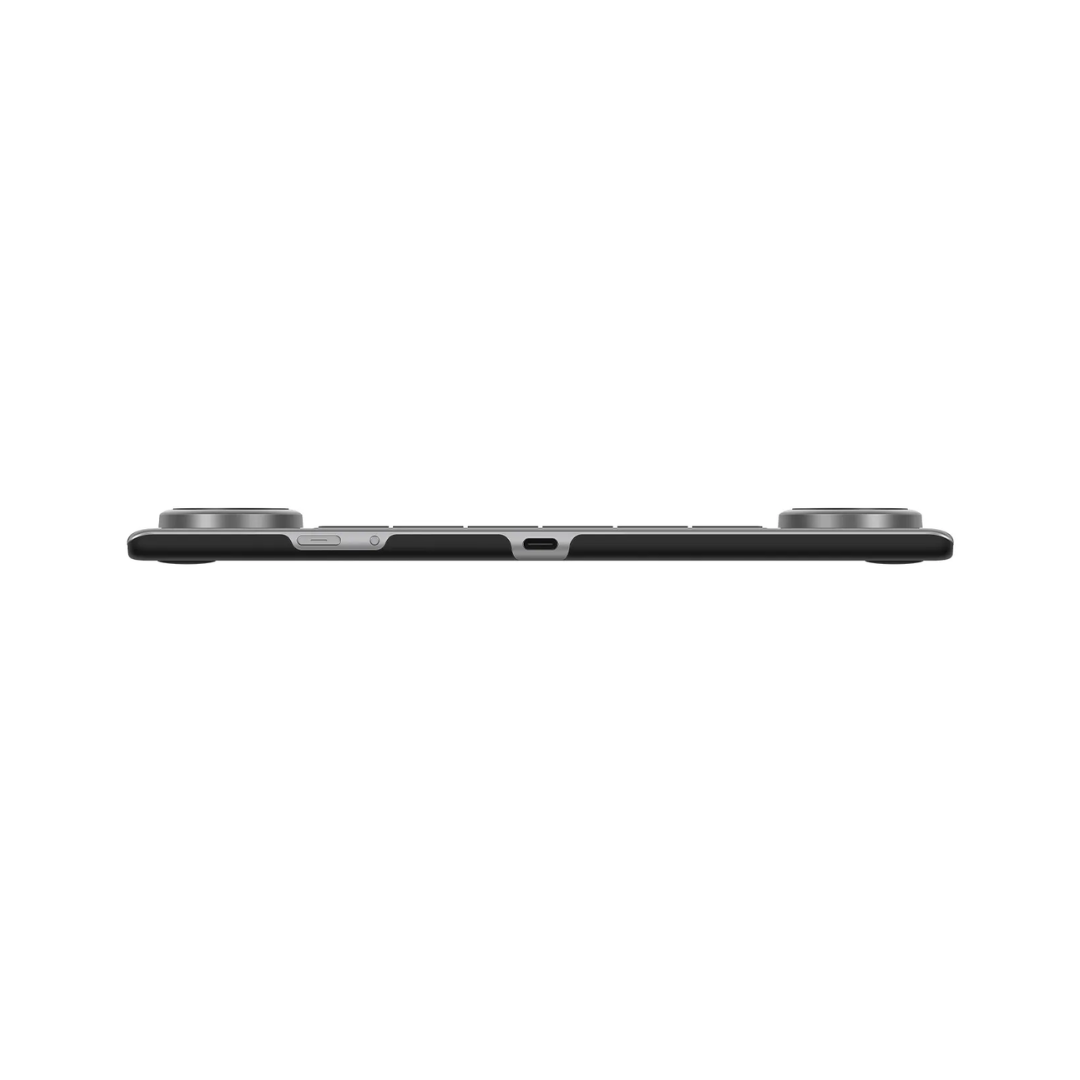

Body Dimensions: 356.6 x 207 x 8 mm (Slim, ultra-portable profile weighing only 710g)

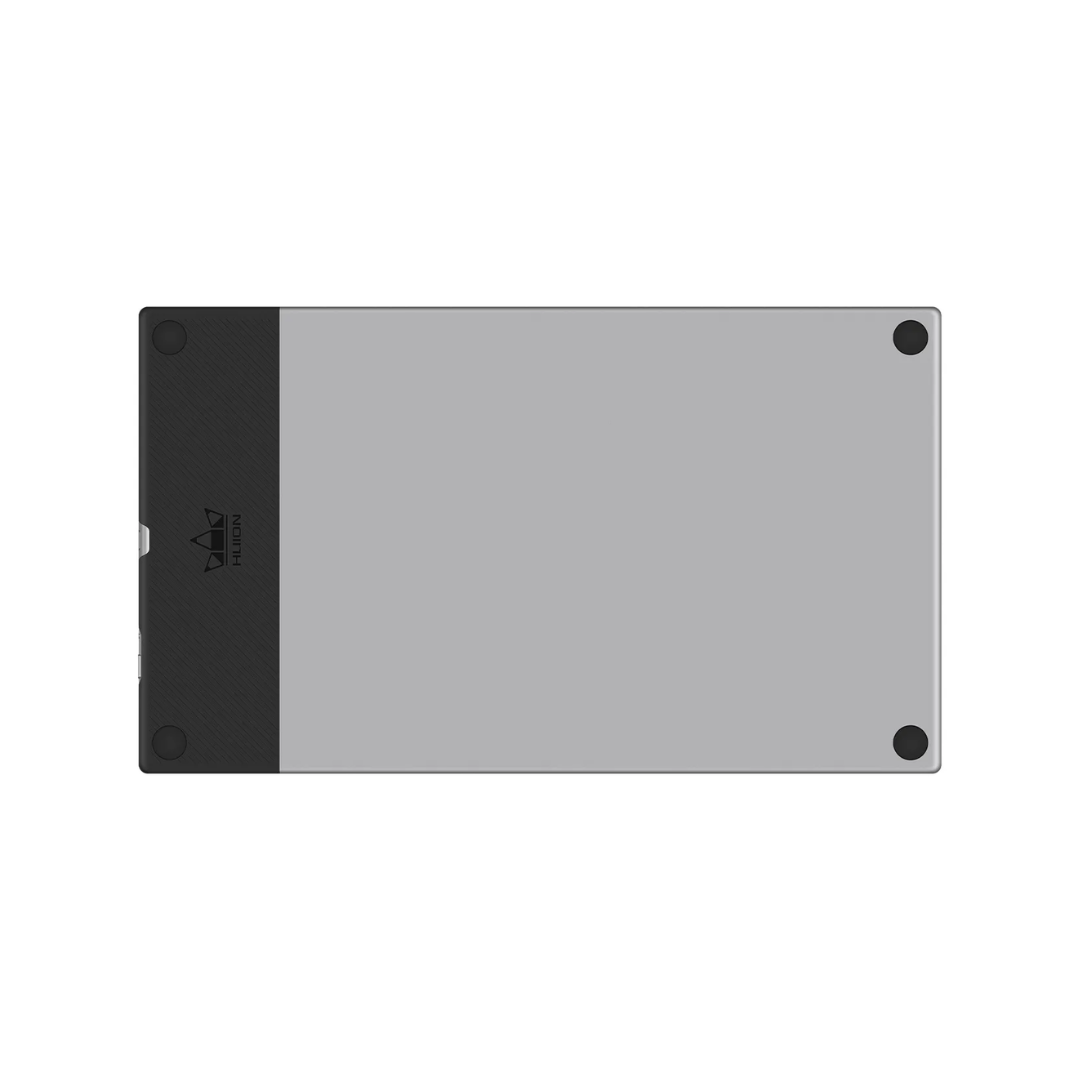

Build & Ergonomics: Premium aluminum alloy metallic rear housing paired with a paper-textured front panel featuring enhanced surface friction

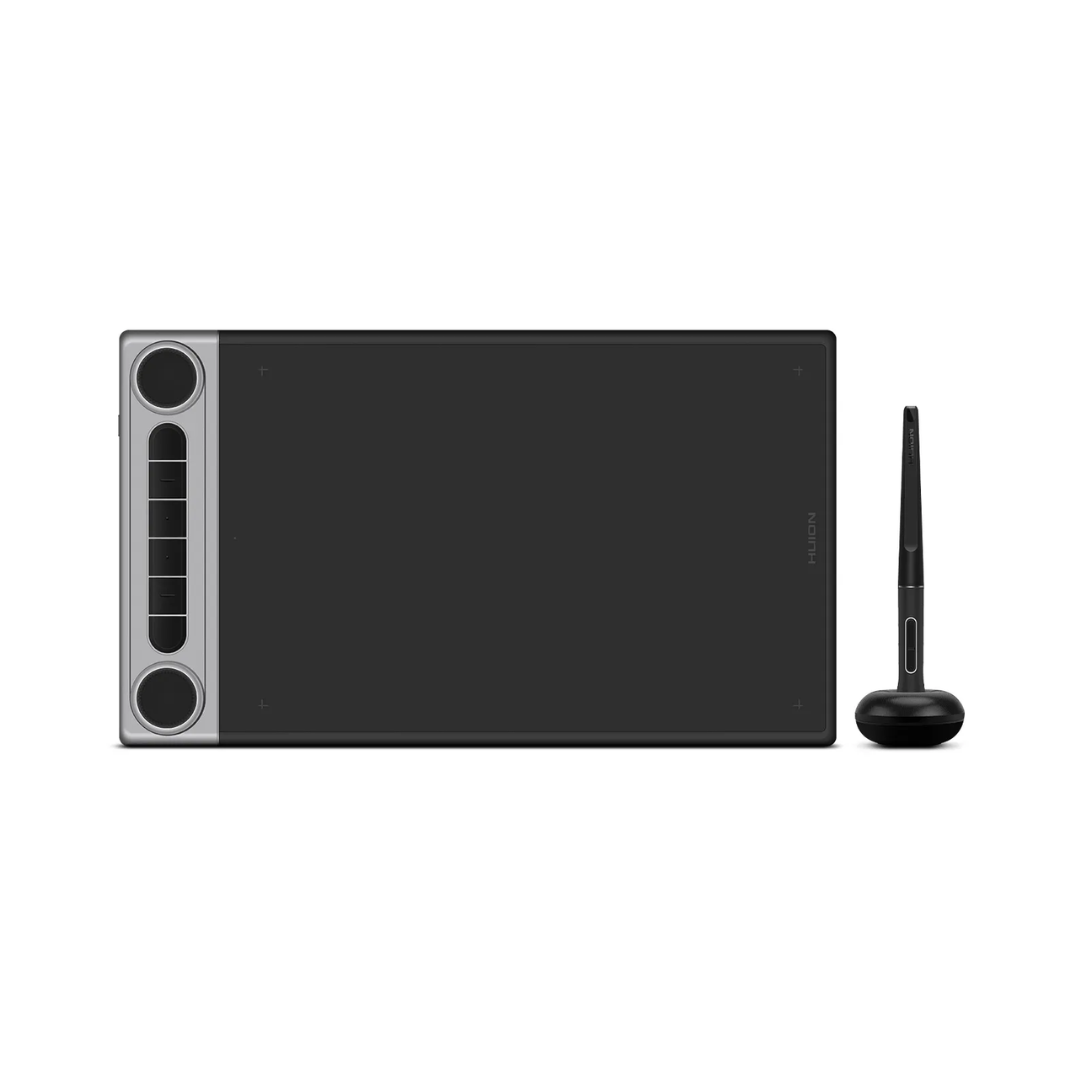

Dual Dial Controllers & Express Keys

Dual Mechanical Dials: 2 x physical rotary dial controllers supporting radial menu navigation, seamless brush resizing, canvas zoom, and layer scrolling
Press Keys: 6 custom programmable press keys positioned between the dual dials for ergonomic blind-touch access
Radial Menu Support: Native integration with Windows Radial Controller protocol for dynamic contextual tool control

PenTech 3.0 Technology & Digitizer Performance

Stylus Technology: PW517 PenTech 3.0 Battery-Free EMR digital pen (Lowered nib retraction distance for solid stroke stability)
Pressure Sensitivity: 8192 levels of pressure sensitivity
Pen Resolution: 5080 LPI (Lines Per Inch)
Tilt Support: ±60° natural tilt recognition for smooth brush shading effects
Report Rate: > 300 PPS (Points Per Second) for ultra-fast, zero-lag pen line execution
Sensing Clearance: 10mm reading height

Wireless Connectivity, Battery & OS Compatibility

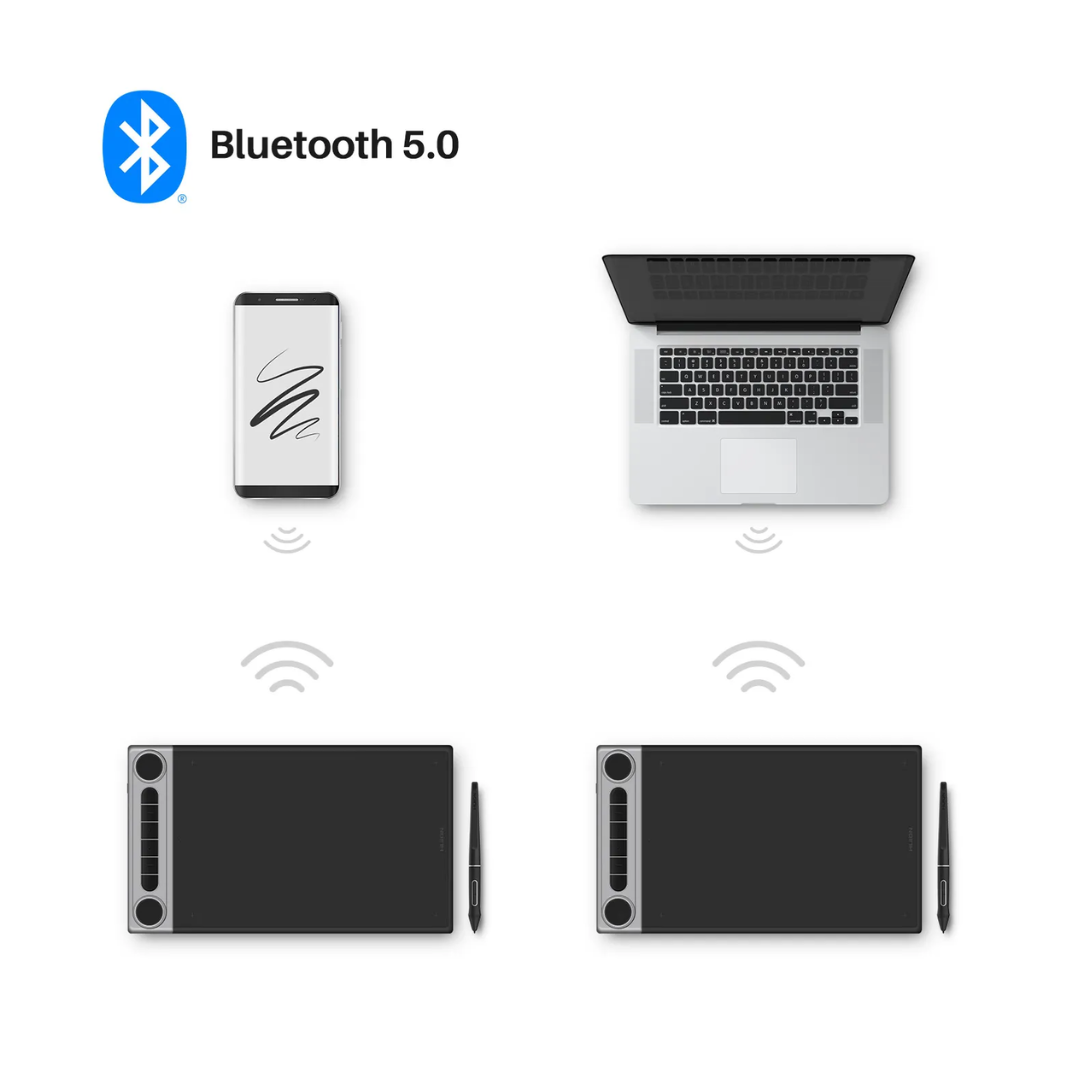

Connectivity Modes: Bluetooth 5.0 Wireless, 2.4GHz Wireless (via USB receiver), and Wired USB-C
Battery Capacity & Endurance: 1300mAh built-in battery providing up to 18 hours of continuous wireless workflow (Fast charging via USB-C in 2.5 hours)
System Compatibility: Windows 7 or later, macOS 10.12 or later, ChromeOS 88 or later, Android 6.0 or later, and Linux (Ubuntu)
Creative App Integration: Fully compatible with major digital software (Adobe Photoshop, Illustrator, Clip Studio Paint, Sai, CorelPainter, Krita, ZBrush, and Blender)
