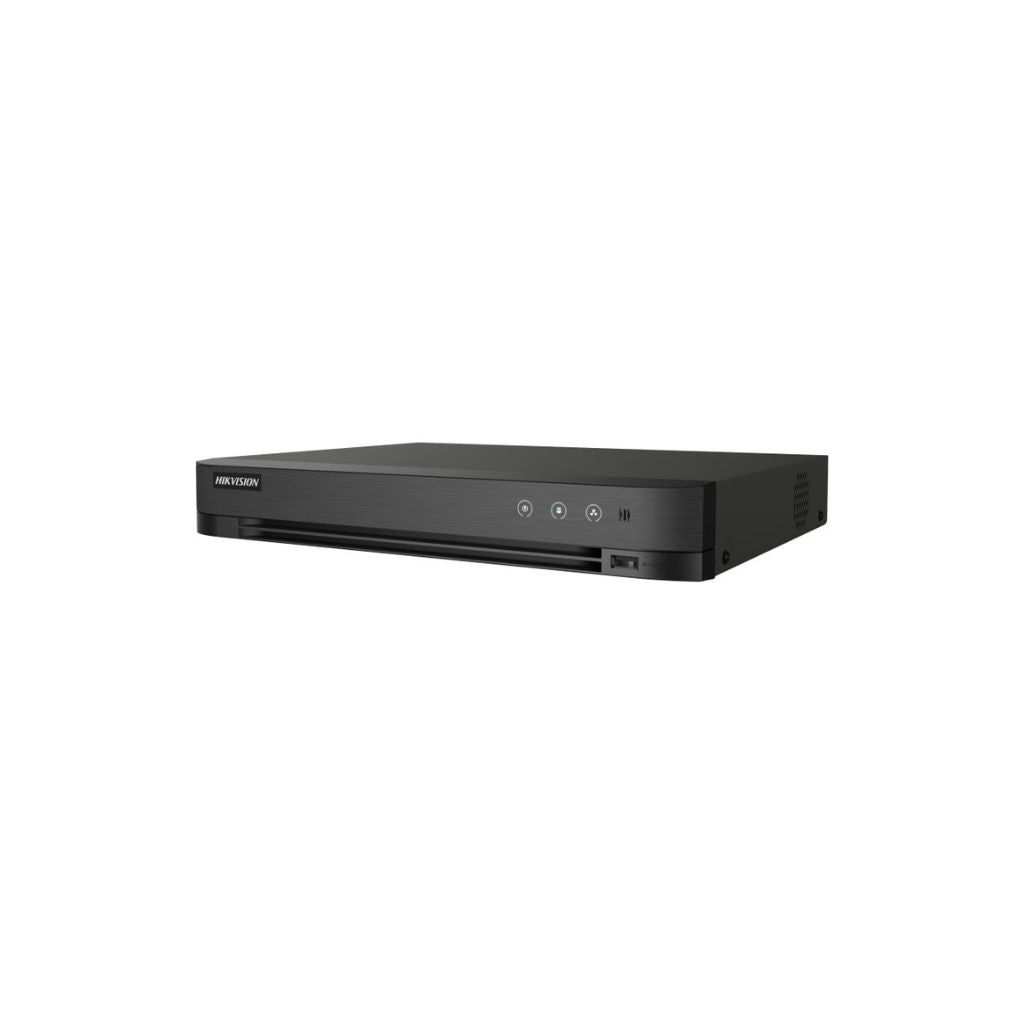

HIKVISION DVR 4-CH 8MP IDS-7204HUHI-M1/XT (STD)

General

• Brand: Hikvision
• Model: IDS‑7204HUHI‑M1/XT (STD)
• Type: Turbo HD DVR
• Channels: 4 (video input)
• Max Resolution: Up to 8MP recording

Video & Recording

• Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Video Input: 4 × BNC (supports TVI/AHD/CVI/CVBS/IP)
• Audio Input: 1 × RCA (expandable via IP channels)
• Recording Resolution: Up to 8MP @ 8 fps, 5MP @ 12 fps, 4MP/1080p @ 15/25/30 fps
• Playback: 4‑channel synchronous playback

IP Camera Support

• Hybrid Mode: Supports up to 6 IP cameras (up to 8MP each)
• Protocol: ONVIF compatible

Storage

• HDD Bays: 1 × SATA (up to 10TB)
• File System: FAT32/NTFS

Connectivity

• HDMI Output: 1 (up to 4K UHD)
• VGA Output: 1 (up to 1080p)
• Audio Output: 1 × RCA
• USB Ports: 2 × USB 2.0
• Network: 1 × RJ‑45 (10/100 Mbps Ethernet)

Features

• Motion detection, intrusion detection, line crossing detection
• Alarm I/O supported (depending on configuration)
• Smart playback and event search
• Cloud storage support (Hik‑Connect)
• Mobile viewing via Hik‑Connect app

Build & Protection

• Dimensions: ~315 × 242 × 45 mm
• Weight: ~1.5 kg (without HDD)
• Operating Temp: ‑10 °C to 55 °C

Power

• Supply: 12 V DC
• Consumption: ≤15 W (without HDD)

Package Contents

• Hikvision IDS‑7204HUHI‑M1/XT DVR × 1
• Power Adapter × 1
• SATA Cable × 1
• Screws × 1 set
• Quick Start Guide × 1
