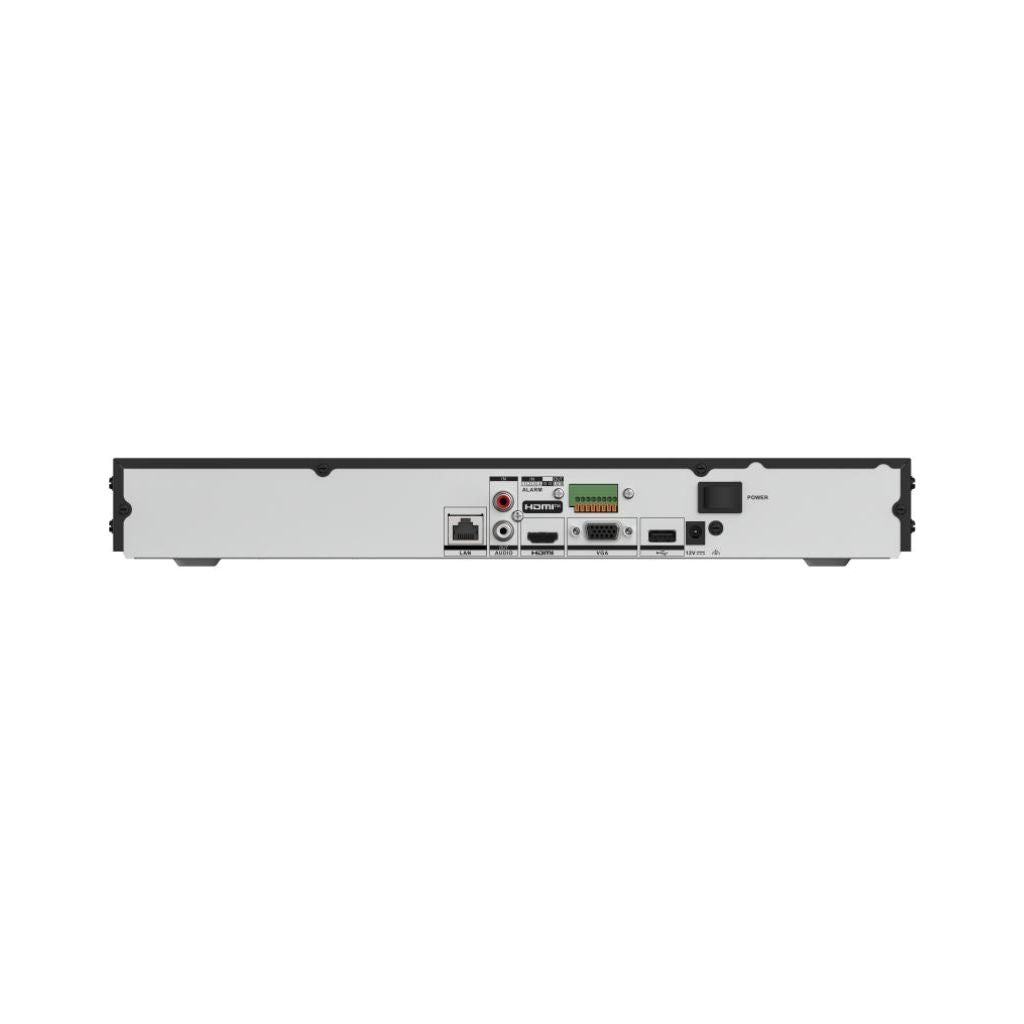

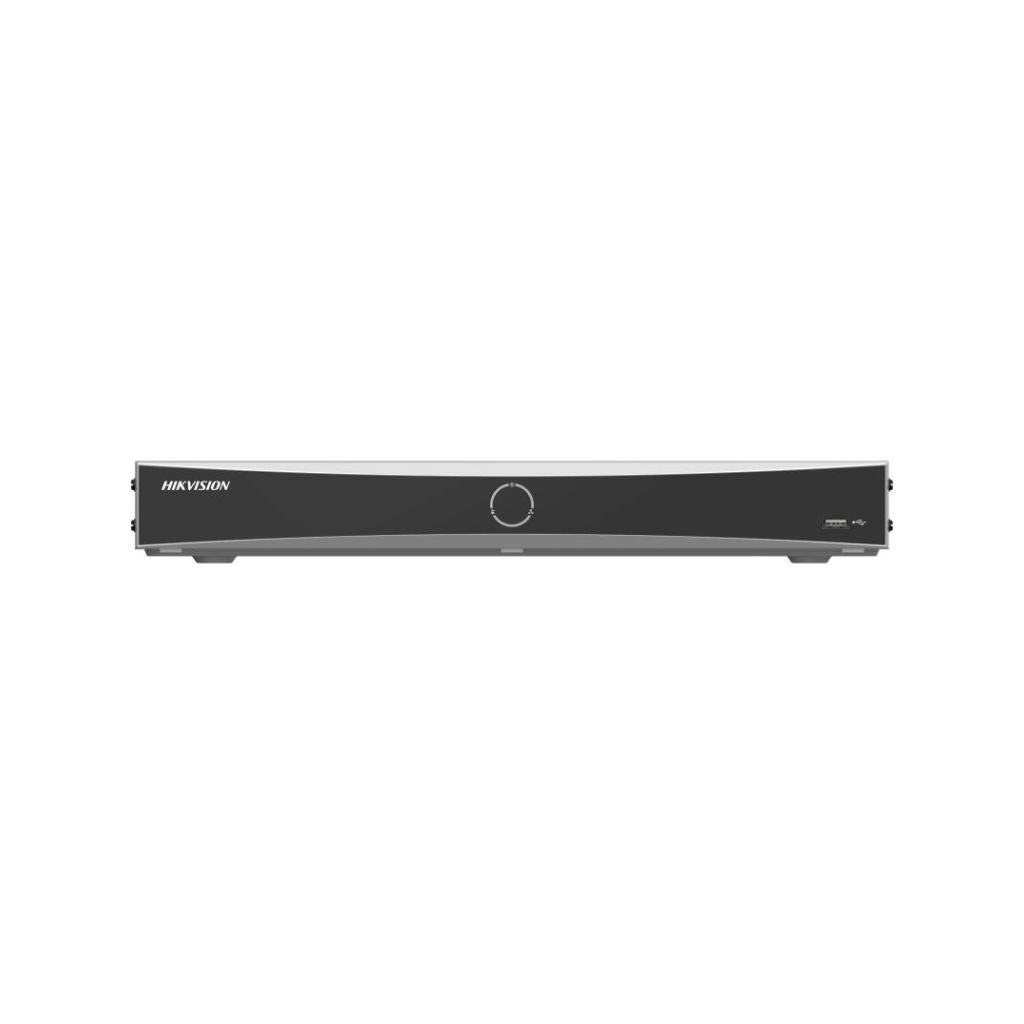

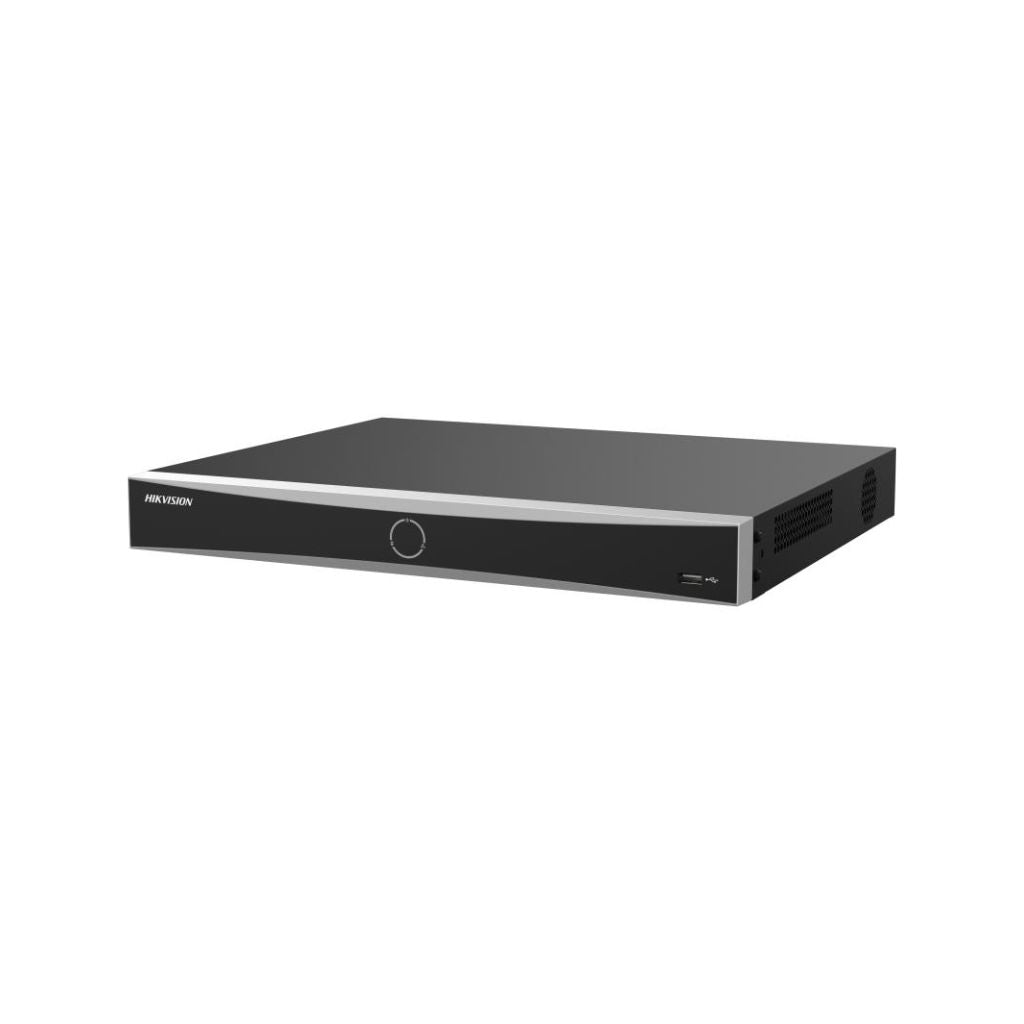

Hikvision DS-7616NXI-K2(D) 16-ch 1U K Series AcuSense 4K NVR

NVR Specifications

• Model: Hikvision DS‑7616NXI‑K2(E)
• Type: 16‑channel 1U K Series AcuSense 4K NVR
• Video/Audio Input:
  • 16 × IP camera inputs
  • Up to 12 MP resolution recording
• Decoding Capacity:
  • Up to 1‑ch @ 12 MP
  • Up to 2‑ch @ 8 MP
  • Up to 4‑ch @ 4 MP
  • Up to 8‑ch @ 1080p

Features

• AcuSense Technology: Human/vehicle classification for reduced false alarms
• Video Compression: H.265+/H.265/H.264+/H.264
• Smart Functions: Motion detection, perimeter protection, face capture
• Display Resolution: HDMI/VGA output up to 4K (3840 × 2160)
• Storage: 2 × SATA interfaces, each up to 10 TB capacity
• Audio: 1‑ch two‑way audio

Connectivity

• Network Interface: 1 × RJ‑45 10/100/1000 Mbps Ethernet
• USB Ports: 2 × USB 2.0
• Alarm I/O: 16 in / 4 out

Physical

• Dimensions (W × D × H): 380 × 290 × 45 mm
• Weight: ~2 kg (without HDD)
• Housing: Metal, 1U rackmount design

Environmental

• Operating Temperature: −10 °C to +55 °C
• Power Supply: 100–240 VAC, 50/60 Hz
• Consumption: ≤ 30 W (without HDD)

Package Contents

• DS‑7616NXI‑K2(E) NVR × 1
• Power Cord × 1
• Mouse × 1
• Rackmount Kit × 1
• Quick Installation Guide × 1
• Warranty Information × 1
