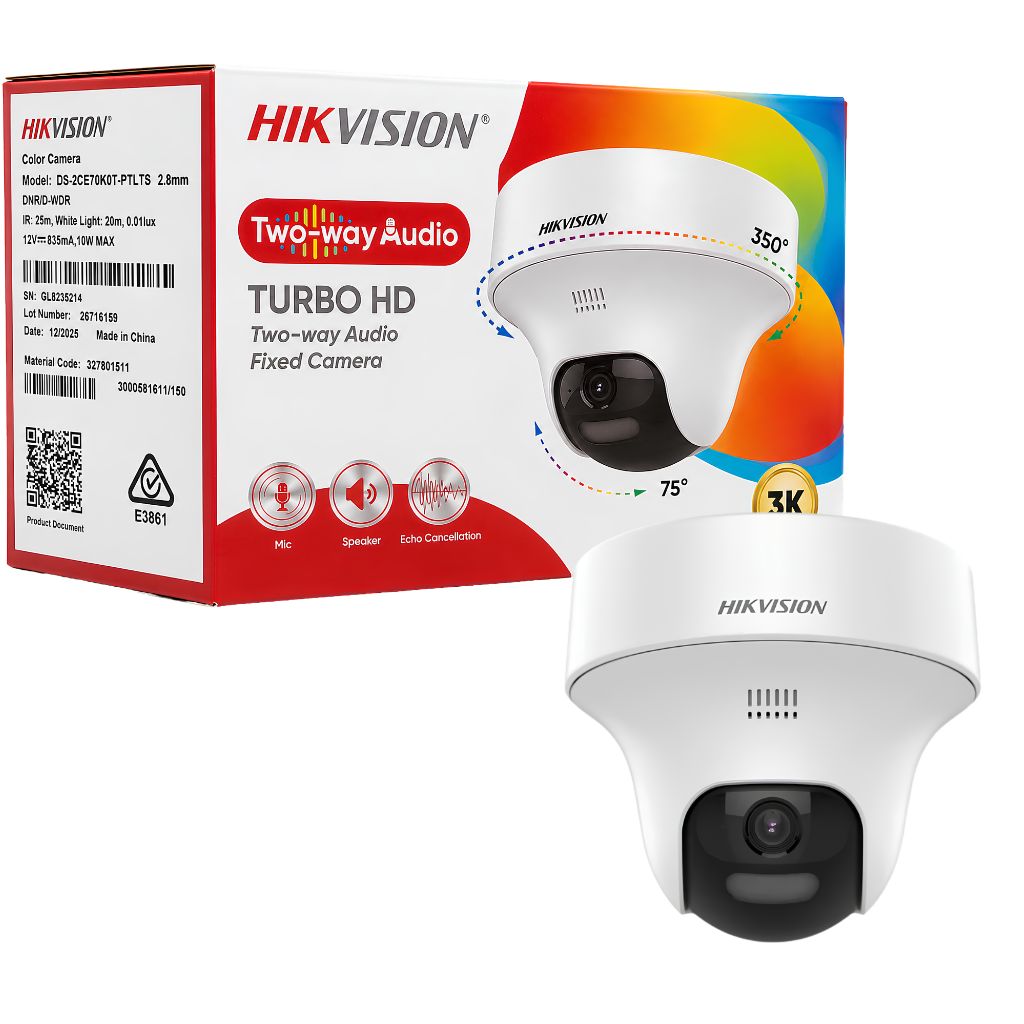

Hikvision DS-2CE70K0T-PTLXTS 3K Two Way Audio & Siren Turbo HD Security Camera

Camera Specifications

• Model: Hikvision DS‑2CE70K0T‑PTLXTS
• Type: Turbo HD Dome Security Camera
• Image Sensor: 3K CMOS
• Signal System: PAL/NTSC
• Max Resolution: 2960 × 1665 (3K)
• Frame Rate: 3K @ 20 fps, 4 MP/1080p @ 25/30 fps
• Lens: 2.8 mm fixed focal lens
• Field of View: H ~105°, V ~59°, D ~139°
• Lens Mount: M12

Illuminator

• Supplement Light Type: Smart Hybrid (IR + White Light)
• IR Range: Up to 40 m
• White Light Range: Up to 40 m
• Day/Night Mode: Auto/Color

Features

• Aperture: F1.0 (excellent low‑light performance)
• Min Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Wide Dynamic Range (WDR): 130 dB True WDR
• Noise Reduction: 3D DNR
• Image Enhancements: WDR, BLC, HLC, Smart Light, Brightness, Contrast, Mirror
• Audio: Built‑in microphone (Two‑Way Audio)
• Alarm: Integrated siren with strobe light
• Privacy Masking: Up to 4 programmable areas
• Motion Detection: 4 programmable zones

Interface

• Video Output: 1 × HD analog output
• Communication: HIKVISION‑C (UTC OSD control)

General

• Power Supply: 12 VDC ± 25%, 0.5 A, max 6 W
• Operating Conditions: –40 °C to 60 °C, ≤ 90% humidity
• Material: Metal housing
• Protection: IP67 weatherproof
• Dimensions: ~85 × 85 × 70 mm
• Weight: ~350 g

Package Contents

• Camera Unit × 1
• Mounting Kit (screws, anchors)
• User Manual × 1
• Warranty Information × 1
