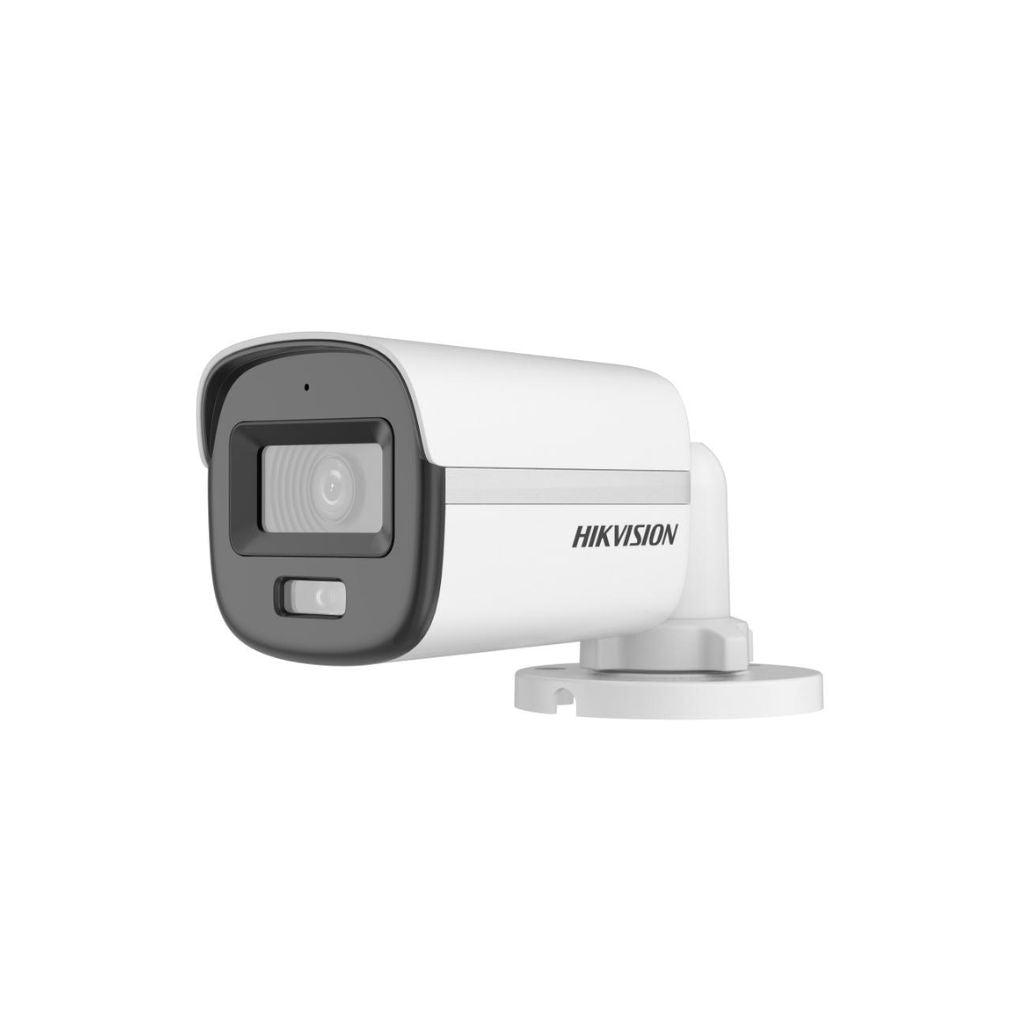

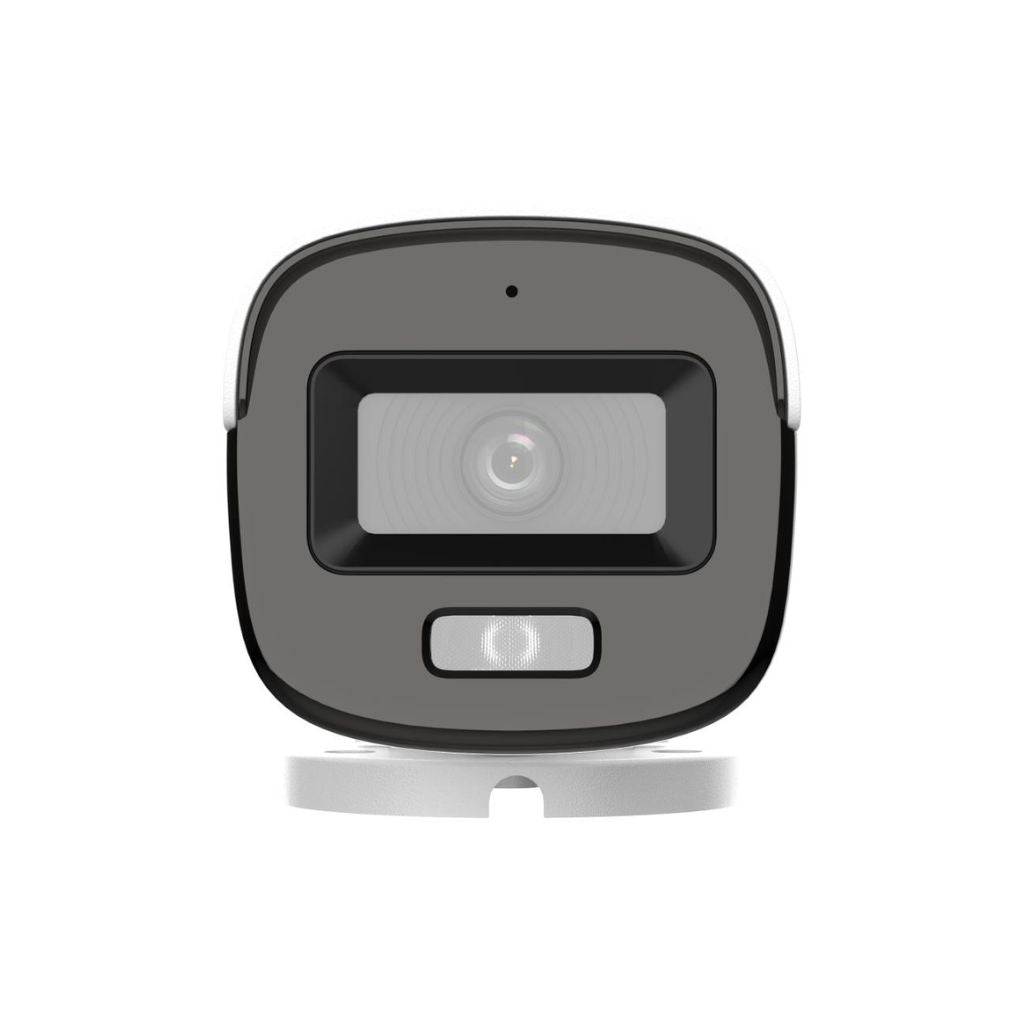

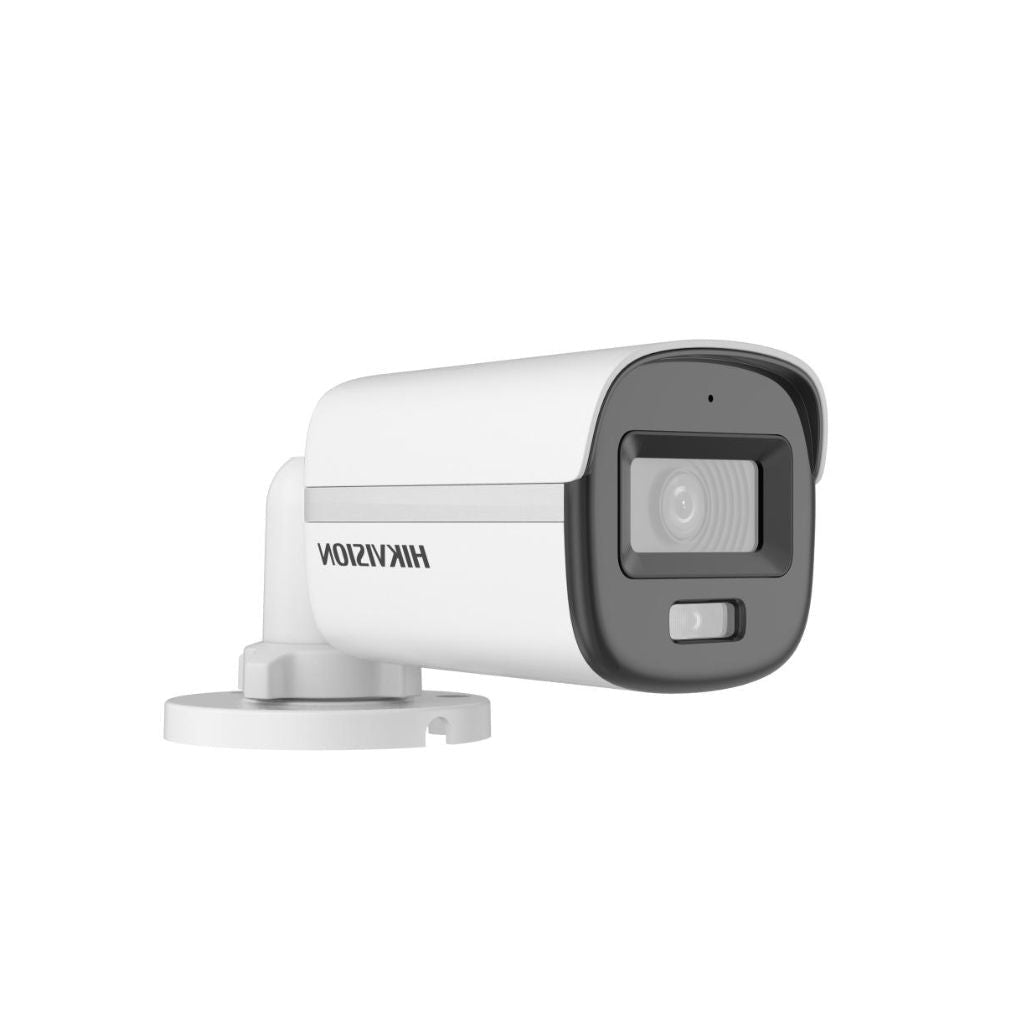

HIKVISION 3K DS-2CE10KF0T-LPTS Two-Way Audio 2.8 mm Outdoor

Camera

• Image Sensor: 3K CMOS
• Max Resolution: 2960 × 1665 (3K)
• Lens: 2.8 mm fixed focal
• Field of View: Horizontal ~102°, Vertical ~56°, Diagonal ~122°
• Minimum Illumination: 0.001 Lux (F1.0, AGC ON), 0 Lux with white light



Night Vision & Lighting

• Lighting: Smart Hybrid Light - ColorVu
  IR Range: Up to 25 m
  White Light: Up to 20 m



Audio

• Built-in Microphone and Speaker
  Two-Way Audio: Supported
  Pickup Distance: ~5 m



Video & Formats

• Frame Rates:
  • TVI: 3K @ 20 fps, 4MP @ 25/30 fps, 1080p @ 25/30 fps
  • AHD: 5MP @ 20 fps, 4MP @ 25/30 fps
  • CVI: 4MP @ 25/30 fps
  • CVBS: PAL/NTSC
• Output: Switchable TVI / AHD / CVI / CVBS (4‑in‑1)
• Image Enhancements: DWDR, BLC, HLC, 2D DNR



Build & Protection

• Material: Metal housing
• Dimensions: 161.1 × 70 × 70 mm
• Weight: ~404 g
• Protection: IP67 (dust & water resistant)
• Operating Temp: ‑40 °C to 60 °C

Power

• Supply: 12 V DC ±25%
• Consumption: Max 2.5 W

Package Contents

• Hikvision DS‑2CE10KF0T-LPTS Camera × 1
• Mounting Kit × 1
• Quick Start Guide × 1
