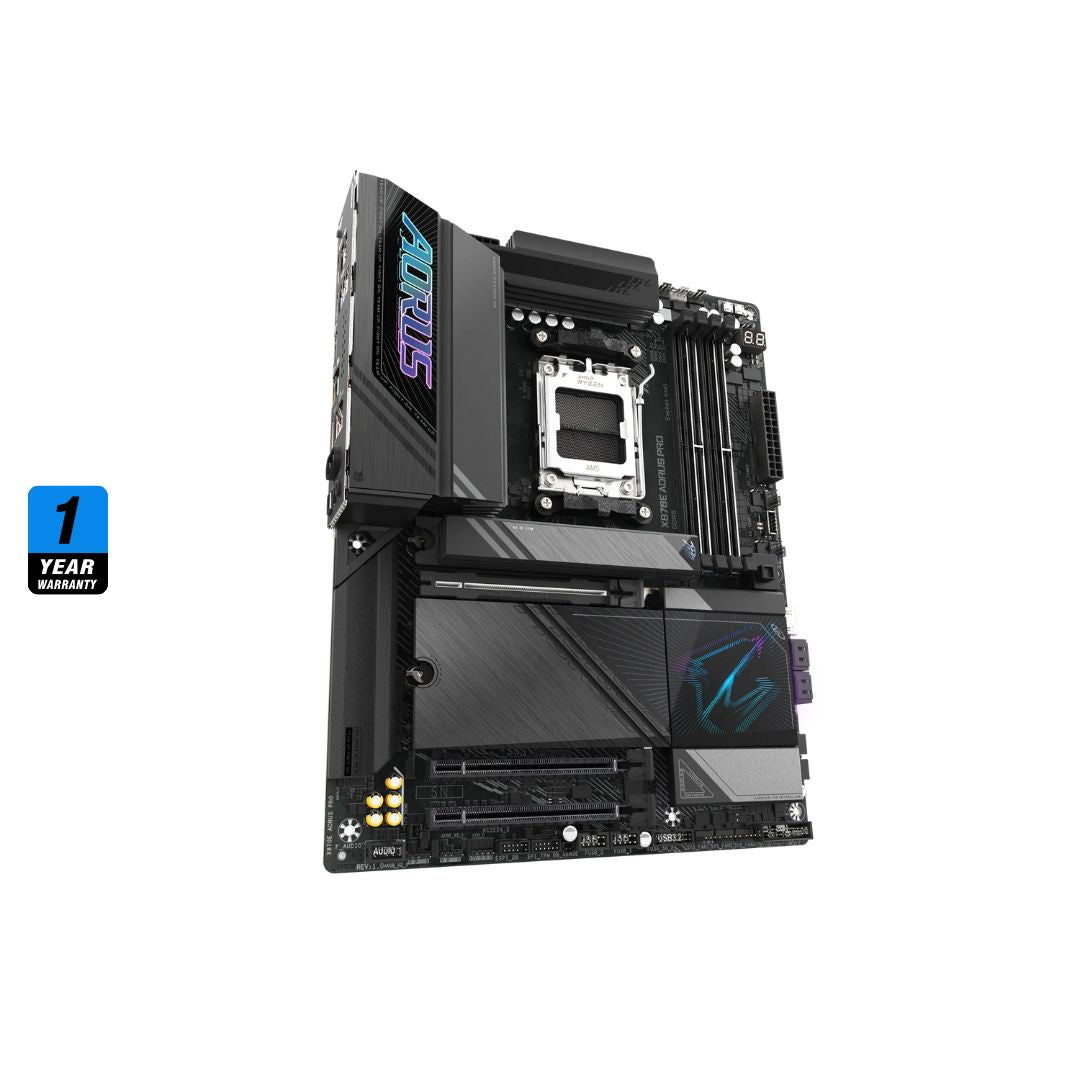

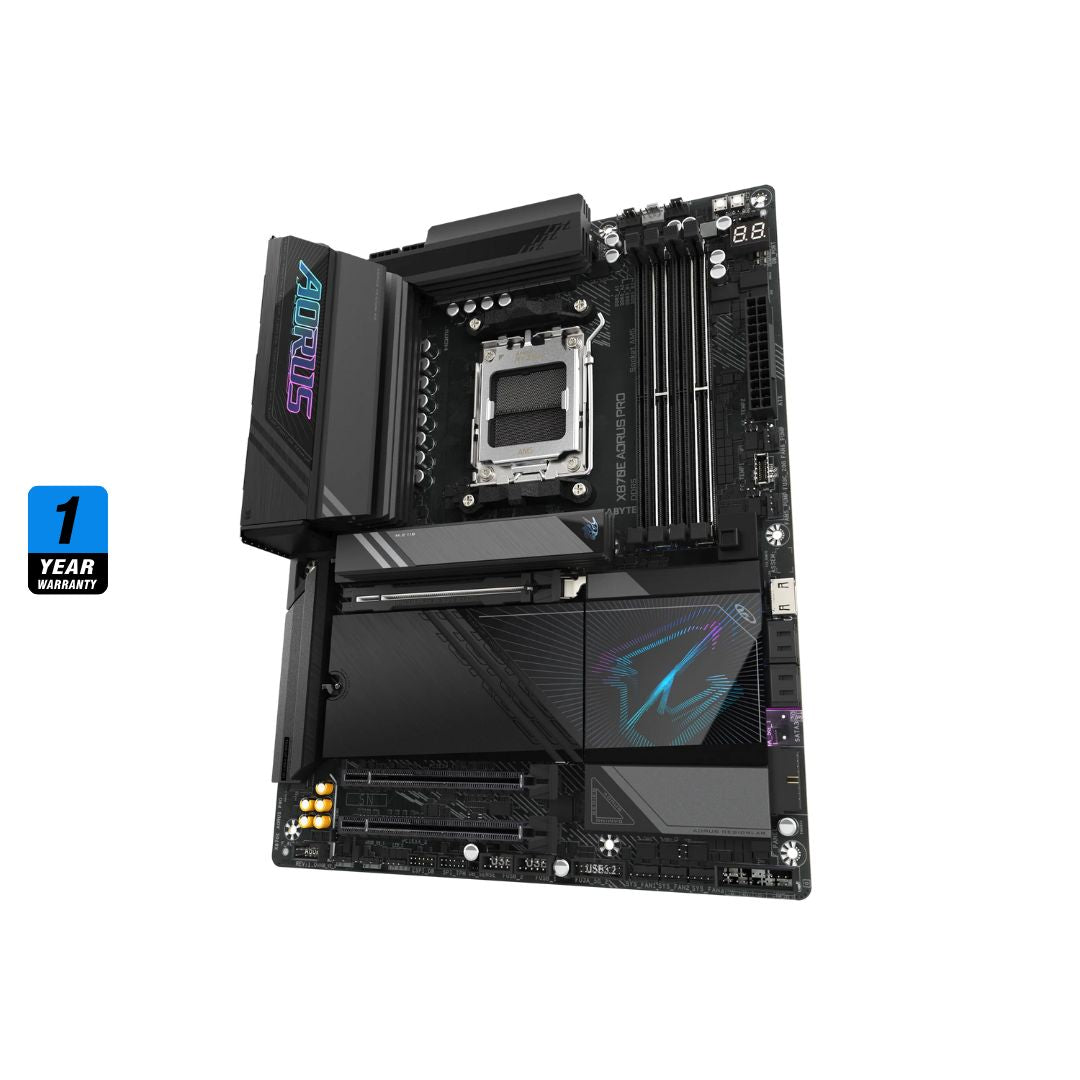

Gigabyte X870E AORUS PRO, Motherboard

Motherboard Specification

• Socket / CPU Support: AMD Socket AM5 (Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors)
• Chipset: AMD X870E
• Form Factor: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)
• Memory Support: DDR5 (Supports up to DDR5-8200+(OC), AMD EXPO™, Extreme Memory Profile / XMP, Dual-Channel, Non-ECC Un-buffered)
• Memory Slots & Max Capacity: 4x DIMM slots, Up to 256 GB
• PCIe Expansion Slots:
  ◦ 1x PCIe 5.0 x16 slot (PCIEX16; supports x16 mode with Ryzen™ 9000/7000; operates at x8 mode if M2B_CPU or M2C_CPU is populated)
  ◦ 1x PCIe 4.0 x16 slot (PCIEX4_1; supports x4 mode from Chipset)
  ◦ 1x PCIe 3.0 x16 slot (PCIEX4_2; supports x4 mode from Chipset)
• M.2 Storage Slots:
  ◦ 1x M.2_1 slot (M2A_CPU, Key M, type 2280/22110 from CPU) — supports PCIe 5.0 x4 mode
  ◦ 1x M.2_2 slot (M2B_CPU, Key M, type 2280/22110 from CPU) — supports PCIe 5.0 x4 mode (shares bandwidth with PCIEX16 slot)
  ◦ 1x M.2_3 slot (M2C_CPU, Key M, type 2280/22110 from CPU) — supports PCIe 5.0 x4 mode (shares bandwidth with PCIEX16 slot)
  ◦ 1x M.2_4 slot (M2D_SB, Key M, type 2280/22110 from Chipset) — supports PCIe 4.0 x4 mode
• SATA Ports: 4x SATA 6Gb/s (Supports RAID 0, 1, 10 for NVMe & SATA storage)

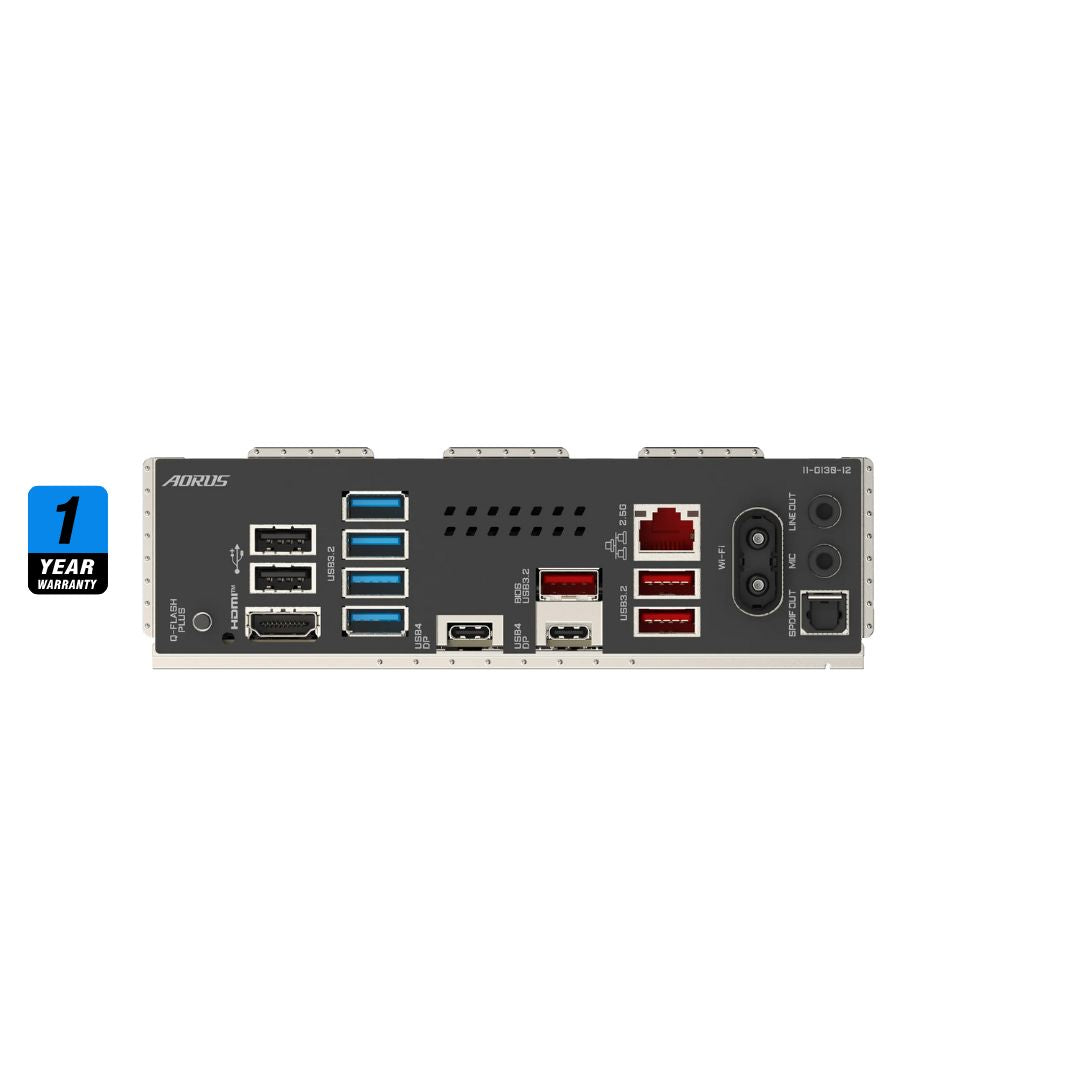

• Rear I/O USB Ports:
  ◦ 2x USB4® 40Gbps Type-C® (supports DisplayPort outputs)
  ◦ 3x USB 3.2 Gen 2 Type-A (10Gbps)
  ◦ 4x USB 3.2 Gen 1 Type-A (5Gbps)
  ◦ 2x USB 2.0/1.1 Type-A
• Internal Front Panel USB Headers:
  ◦ 1x USB 3.2 Gen 2x2 Type-C® header (supports up to 20Gbps)
  ◦ 2x USB 3.2 Gen 1 headers (support 4 additional USB 3.2 Gen 1 Type-A ports)
  ◦ 2x USB 2.0/1.1 headers (support 4 additional USB 2.0 ports)

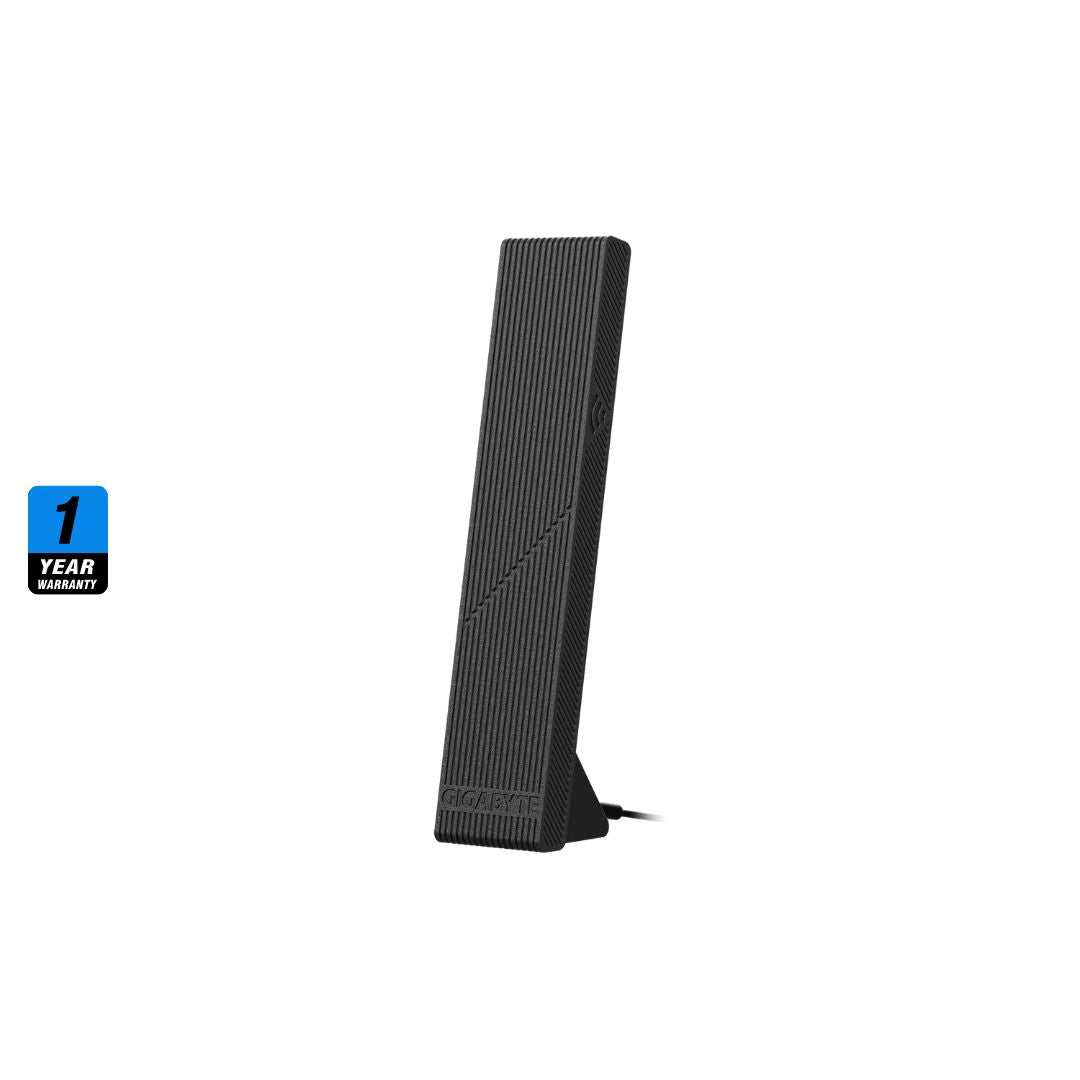

• Networking & Connectivity: Realtek® 2.5GbE LAN, Qualcomm® Wi-Fi 7 (802.11be, 320MHz channel bandwidth), Bluetooth 5.4
• Display Outputs:
  ◦ 1x HDMI 2.1 (supports up to 4096x2160 @ 60Hz)
  ◦ 2x USB4® Type-C® DisplayPort 1.4 (supports up to 3840x2160 @ 240Hz)
  ◦ 1x Internal Front HDMI port (Sensor Panel Link, supports up to 1920x1080 @ 30Hz)
• Audio Codec: Realtek® ALC1220 7.1-Channel High Definition Audio CODEC (with Optical S/PDIF output and 2x Audio jacks)
• Power Delivery / Power Connectors: 16+2+2 Twin Digital VRM (80A Smart Power Stage), 1x 24-pin Main Power, 2x 8-pin ATX 12V Power
• RGB & Fan Headers:
  ◦ 1x 4-pin CPU Fan header
  ◦ 1x 4-pin CPU Fan/Water Cooling Pump header
  ◦ 4x 4-pin System Fan headers
  ◦ 2x 4-pin System Fan/Water Cooling Pump headers
  ◦ 3x Addressable RGB Gen2 headers (ARGB 5V)
  ◦ 1x RGB LED strip header (12V)
• Special Features: PCIe EZ-Latch Plus, M.2 EZ-Latch Click & Plus, WIFI EZ-Plug, Q-Flash Plus button, Power button, Reset button, Clear CMOS button
