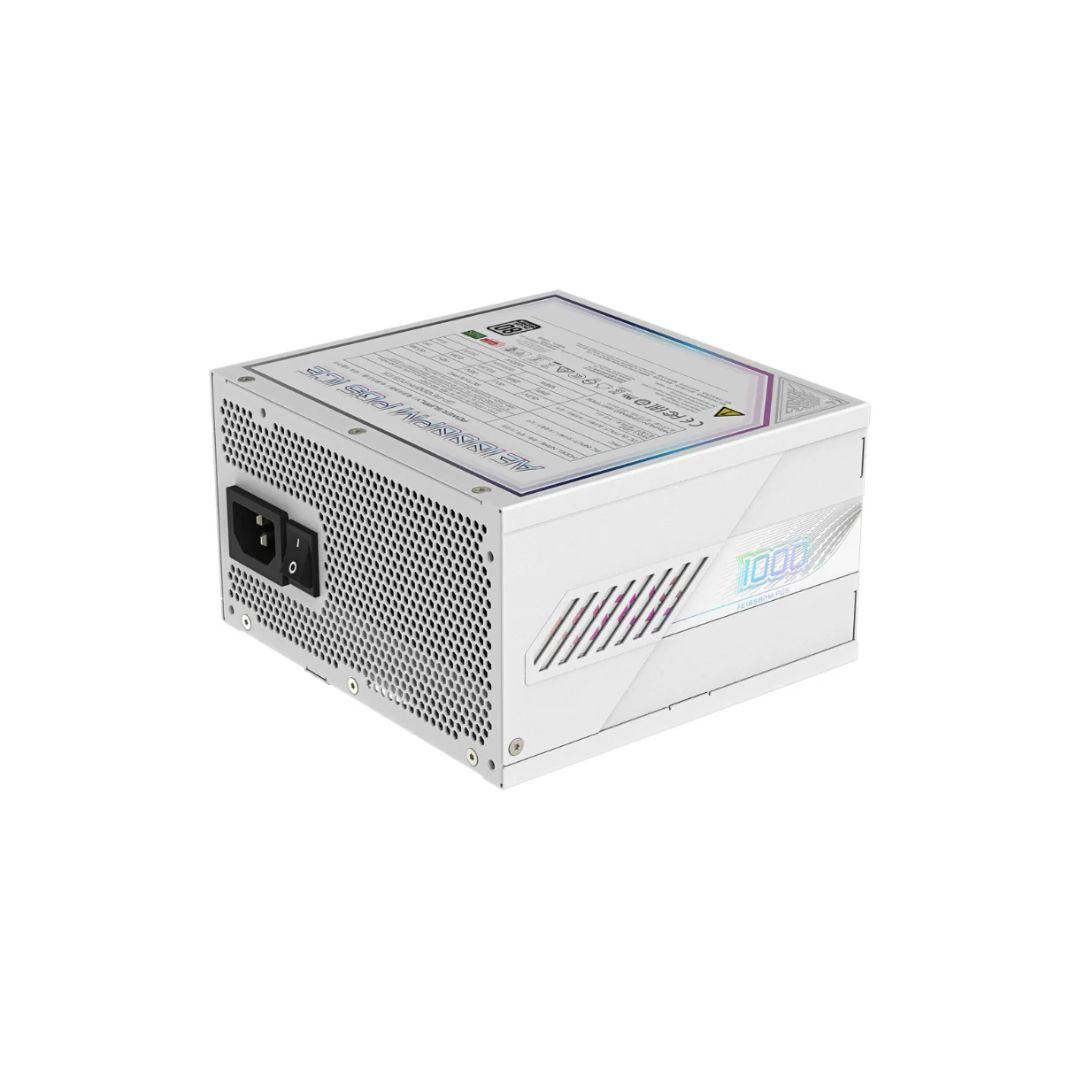

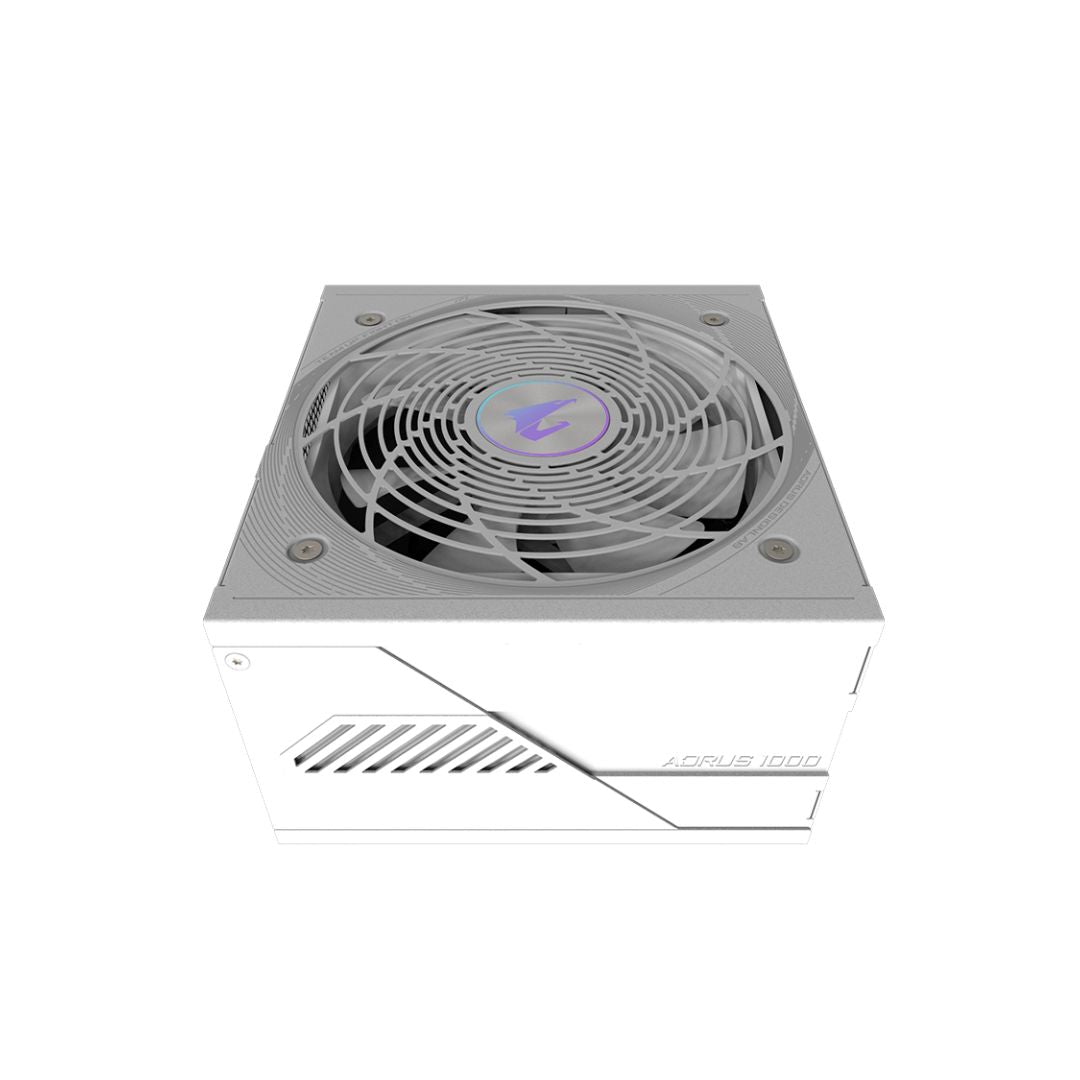

Gigabyte AORUS ELITE GP-AE1000PM ICE, Full Modular, 1000W 80+ Platinum, PCIe 5.1 - White

Power Supply Specification

• Power Watt: 1000W
• Efficiency Rating: 80 PLUS Platinum
• Modular: Full Modular
• Fan Size: 120mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 140 × 150 × 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100–240V AC
• Protection: OVP / OPP / SCP / UVP / OCP / OTP
• ATX (24 pin): 1
• ATX PCIe (GPU): 1 × 16-pin
• EPS (4+4 pin): 2
• PCI-E (6+2 pin): 6
• SATA (15 pin): 8
• MOLEX (4 pin): 4
• FDD (4 pin): Not specified
