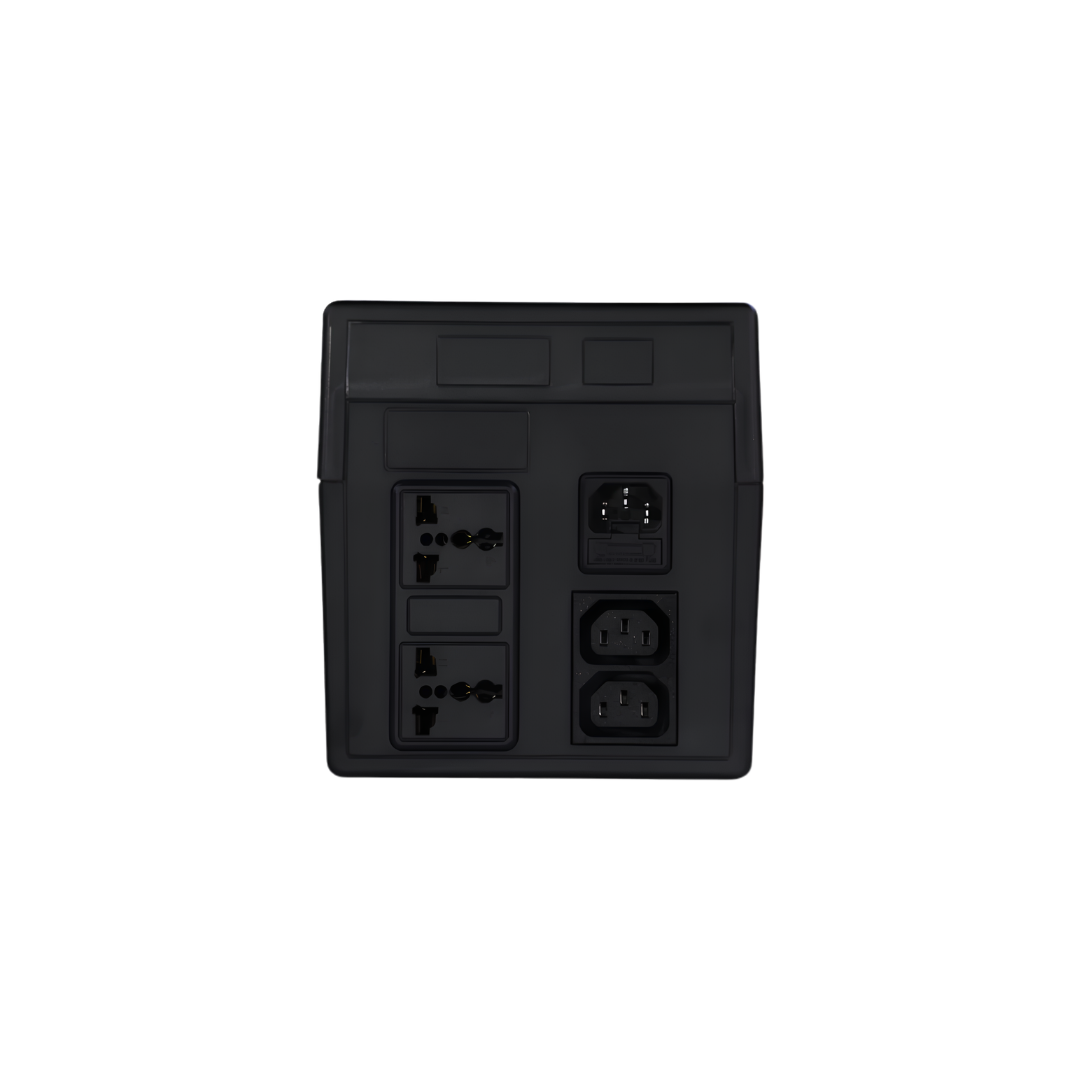

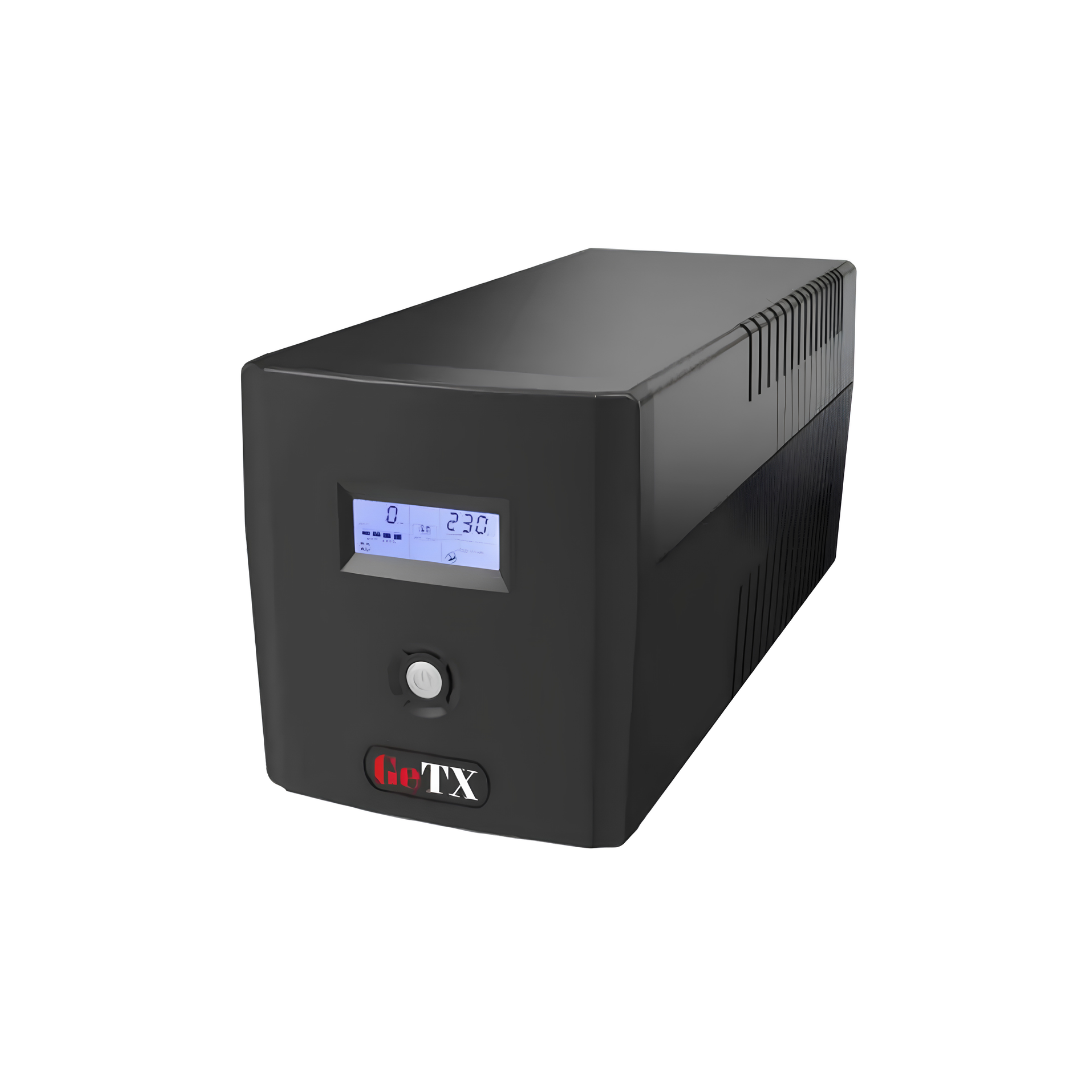

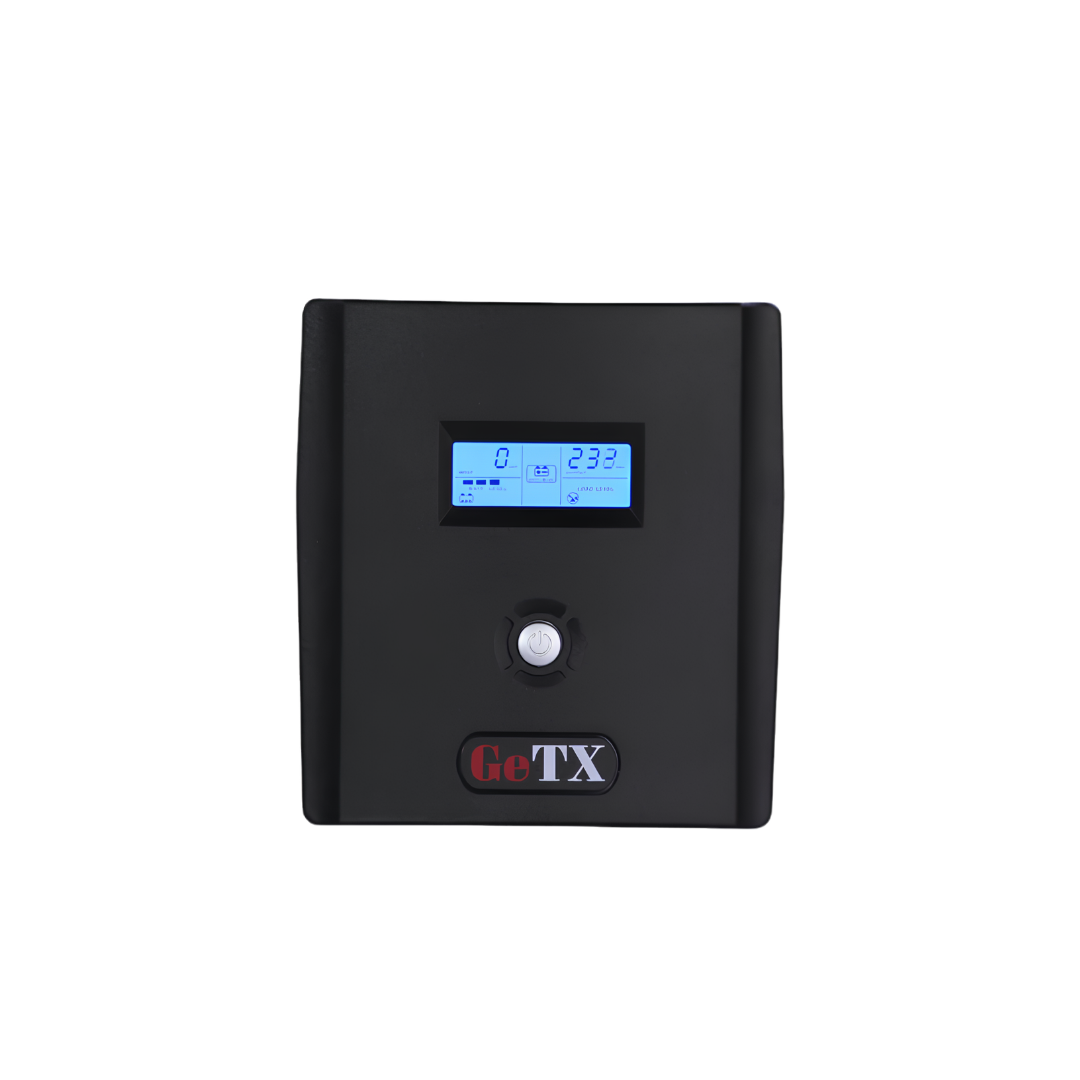

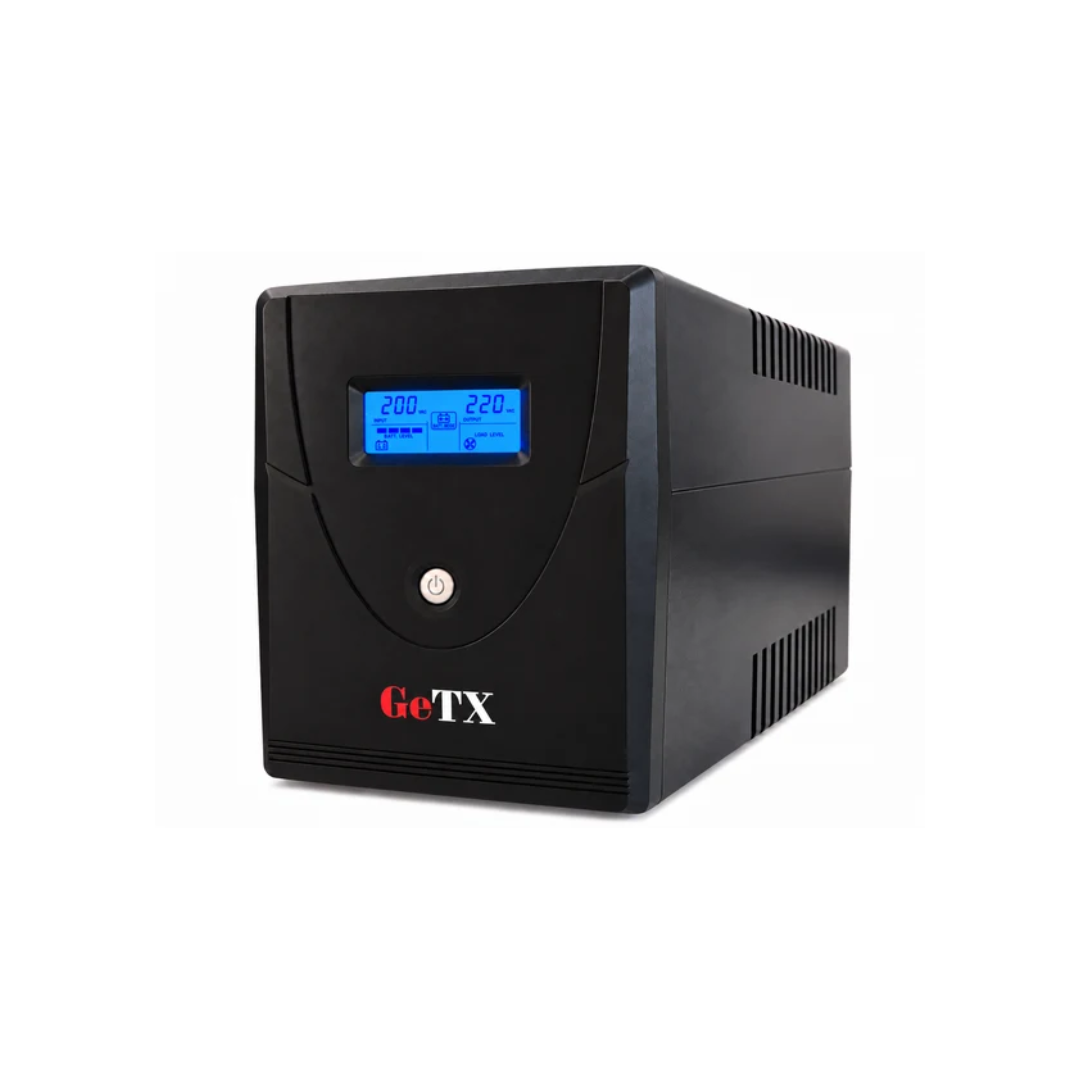

GeTX 1200VA - Line-Interactive UPS

UPS Specification

• Model: GeTX GXK-1200-C
• Product Type: Line-Interactive UPS
• Capacity: 1200VA
• Output Power: 720W
• Input Voltage: 220 / 230 / 240V AC
• Input Voltage Range: 140–300V AC
• Input Frequency: 50/60Hz Auto-Sensing
• Output Voltage Regulation: ±10% in Battery Mode
• Output Frequency: 50/60Hz ±1Hz in Battery Mode
• Waveform: Simulated Sine Wave
• Transfer Time: 4–8ms Typical
• AVR: Boost & Buck AVR
• Battery Type: Sealed Lead-Acid
• Battery Voltage: 24V DC
• Battery Capacity: 7Ah per Battery
• Battery Quantity: 2 × 12V 7Ah
• Recharge Time: Approx. 6–8 Hours to 90% Capacity
• Display: LCD
• Indicators: AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, Low Battery
• Protection: Short Circuit, Overload, Overcharge, Overdischarge
• Alarm: Battery Mode, Low Battery, Overload, Fault
• Cold Start: Supported
• Automatic Restart: Supported
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 0%–90% RH, Non-Condensing
• Noise Level: <45dB
• Dimensions: 314 × 130 × 175mm
• Weight: 7.2kg
