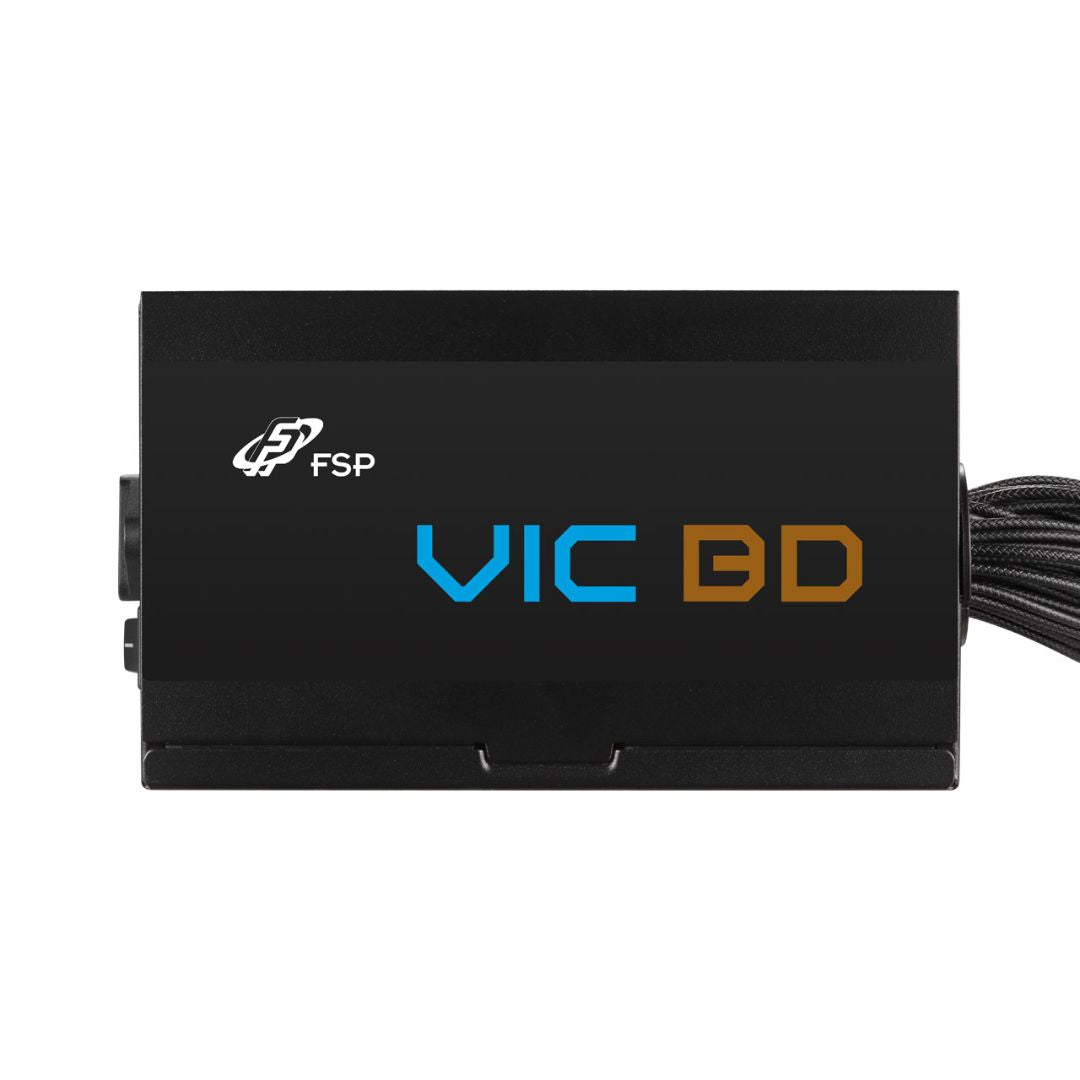

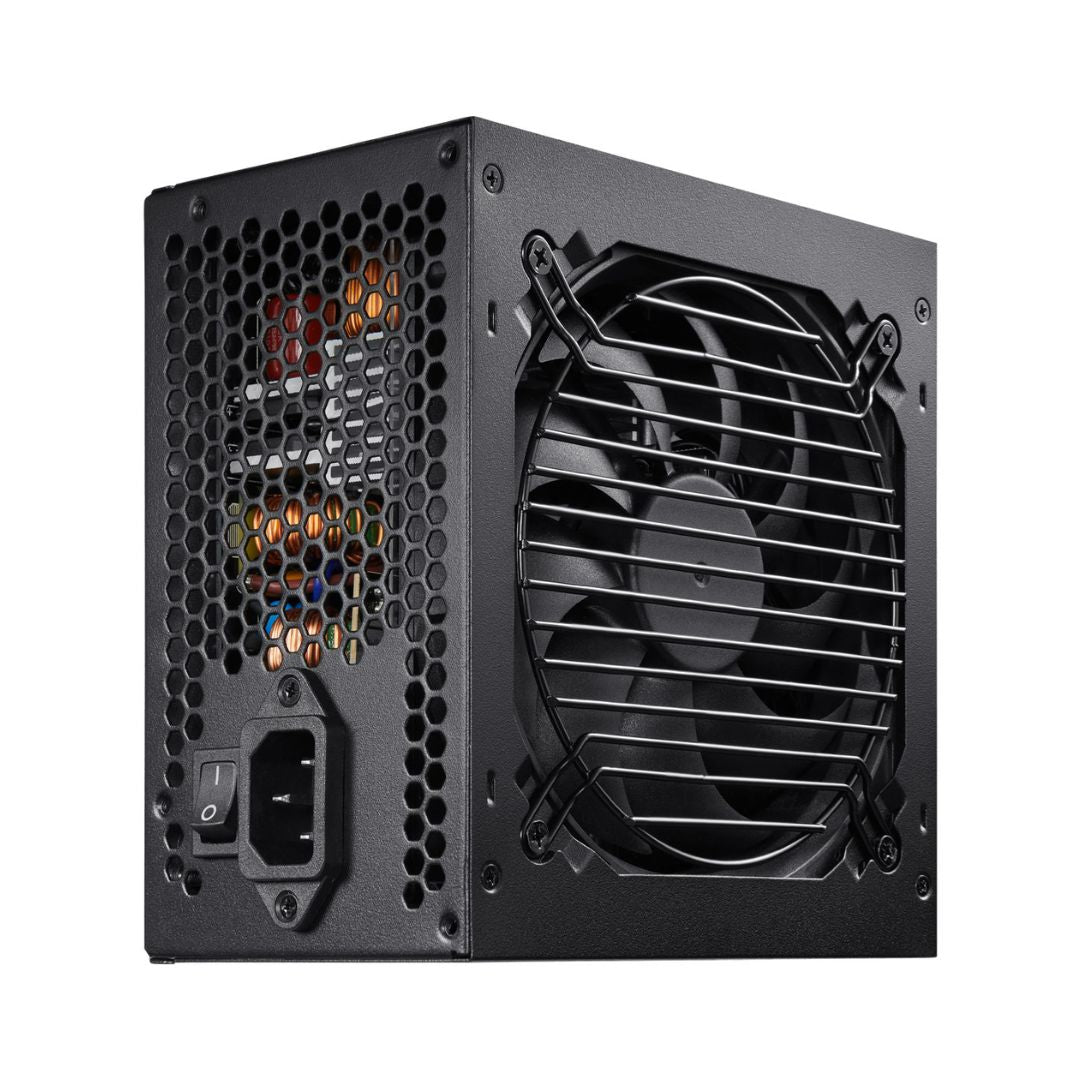

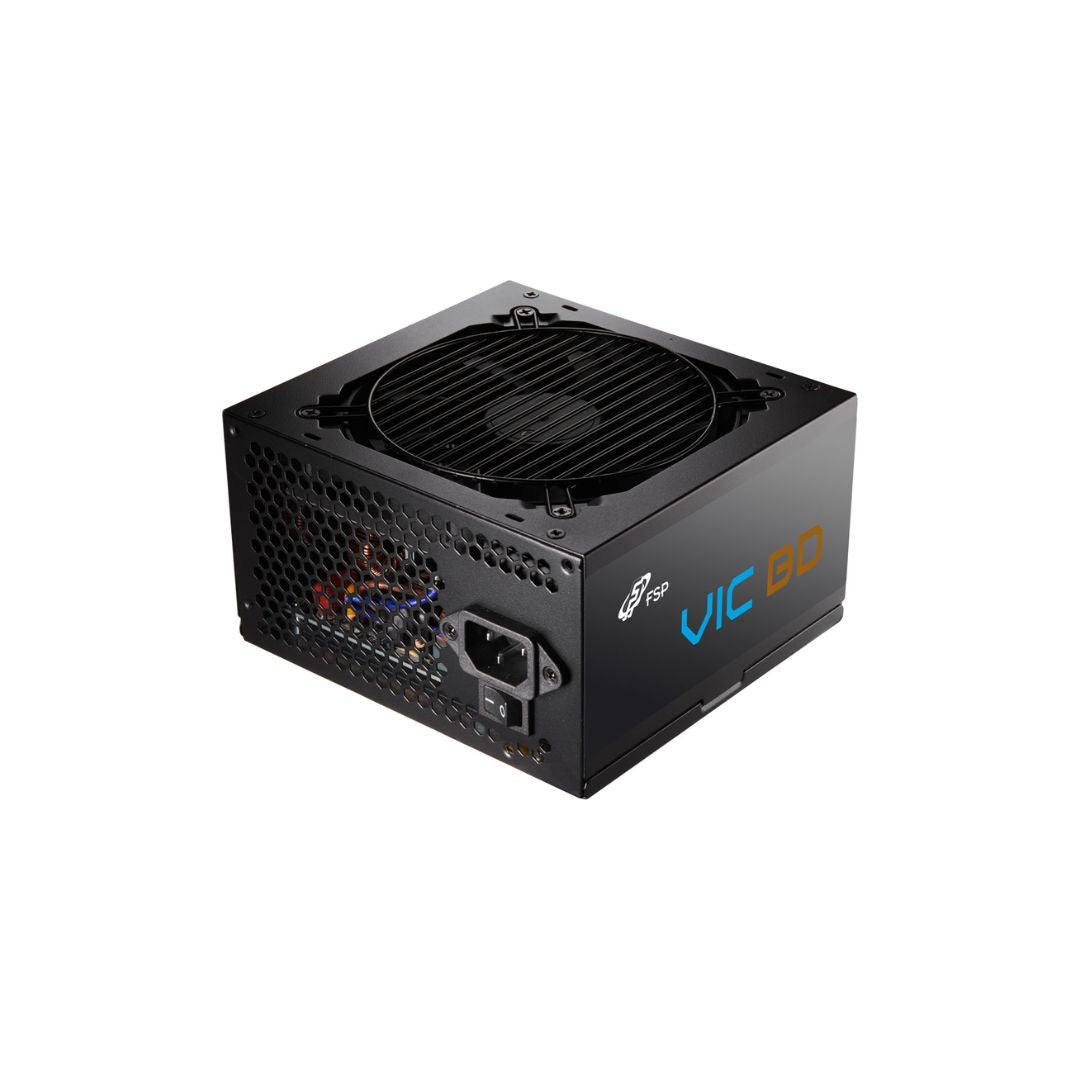

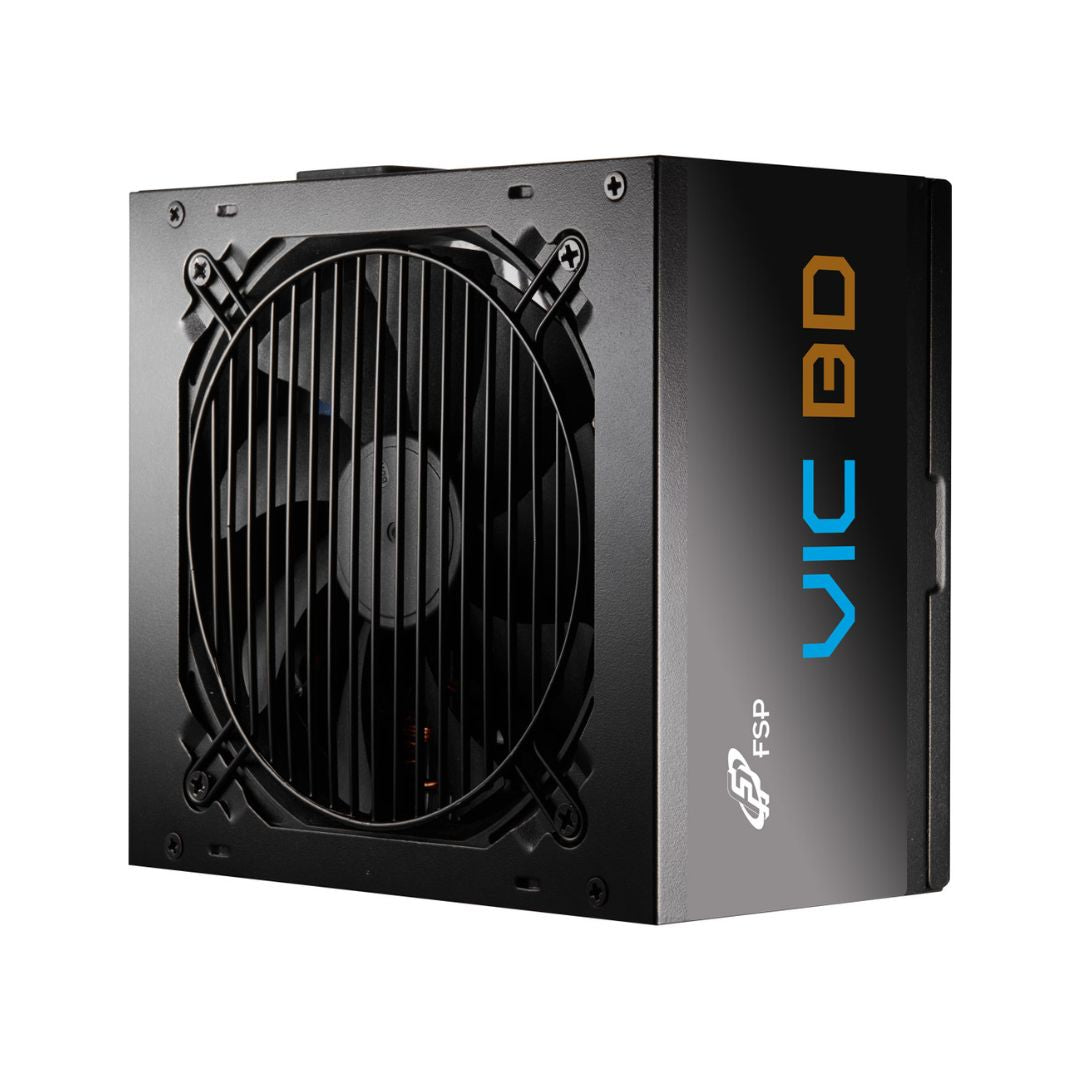

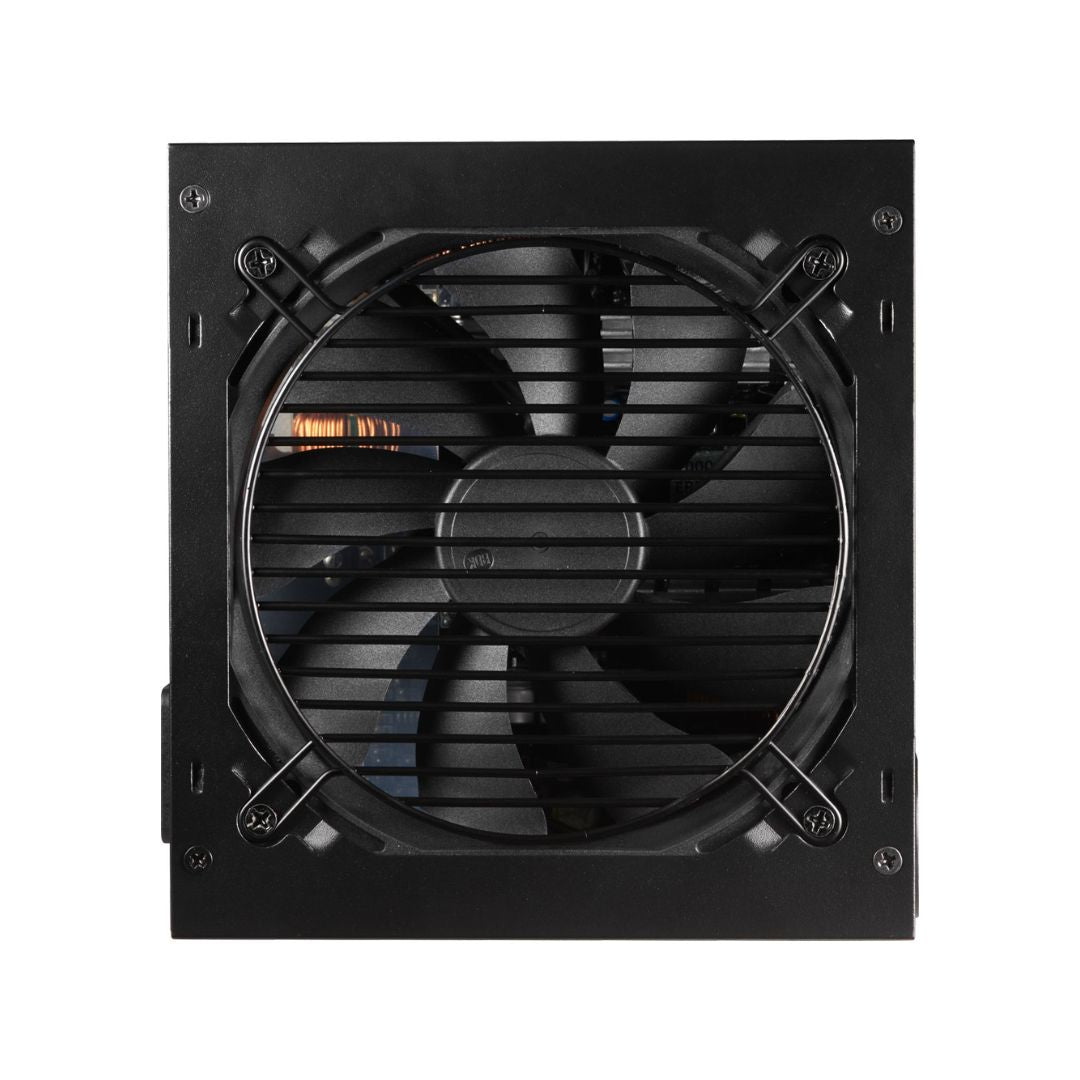

FSP VIC BD, 650W 80+ Bronze, Non-Modular
Power Supply Specification
• Power Watt: 650W
• Efficiency Rating: 80 PLUS® 230V EU Bronze, ≥88% at Typical Load
• Modular: Non-Modular
• ATX Standard: ATX12V V3.1, EPS12V V2.92
• Fan Size: 120mm
• Fan Bearing: Hydro Dynamic Bearing (HDB)
• Dimensions (DxWxH): 140 × 150 × 86mm
• PFC Type: Active PFC, Power Factor ≥0.9
• Input Voltage Range: 200–240V AC, 50–60Hz
• Protection: OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO
• ATX (24 pin): 1 × 20+4-Pin Connector
• ATX PCIe (GPU): None
• EPS (4+4 pin): 2 Connectors
• PCI-E (6+2 pin): 2 Connectors
• SATA (15 pin): 5 Connectors
• MOLEX (4 pin): 3 Connectors
• FDD (4 pin): None
