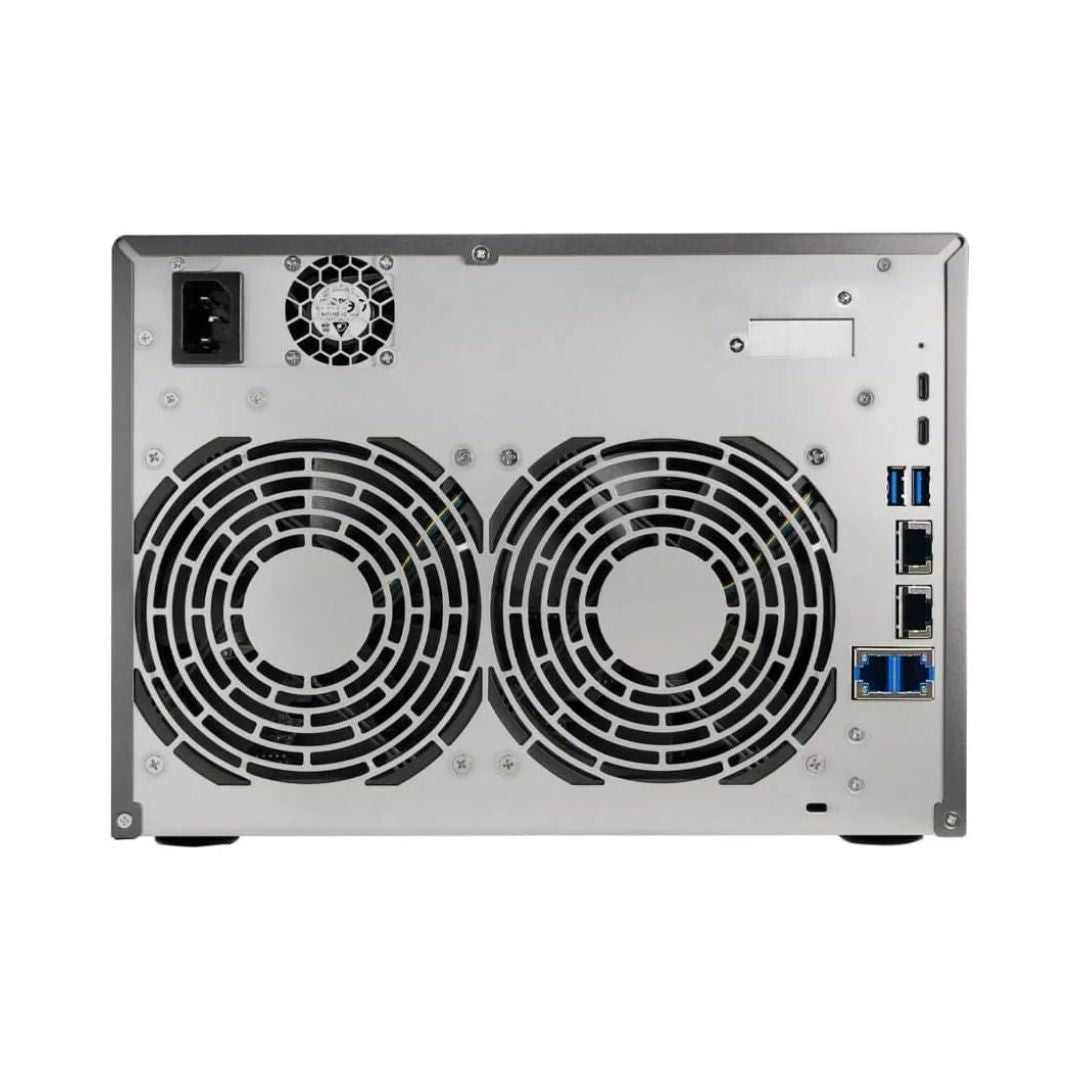

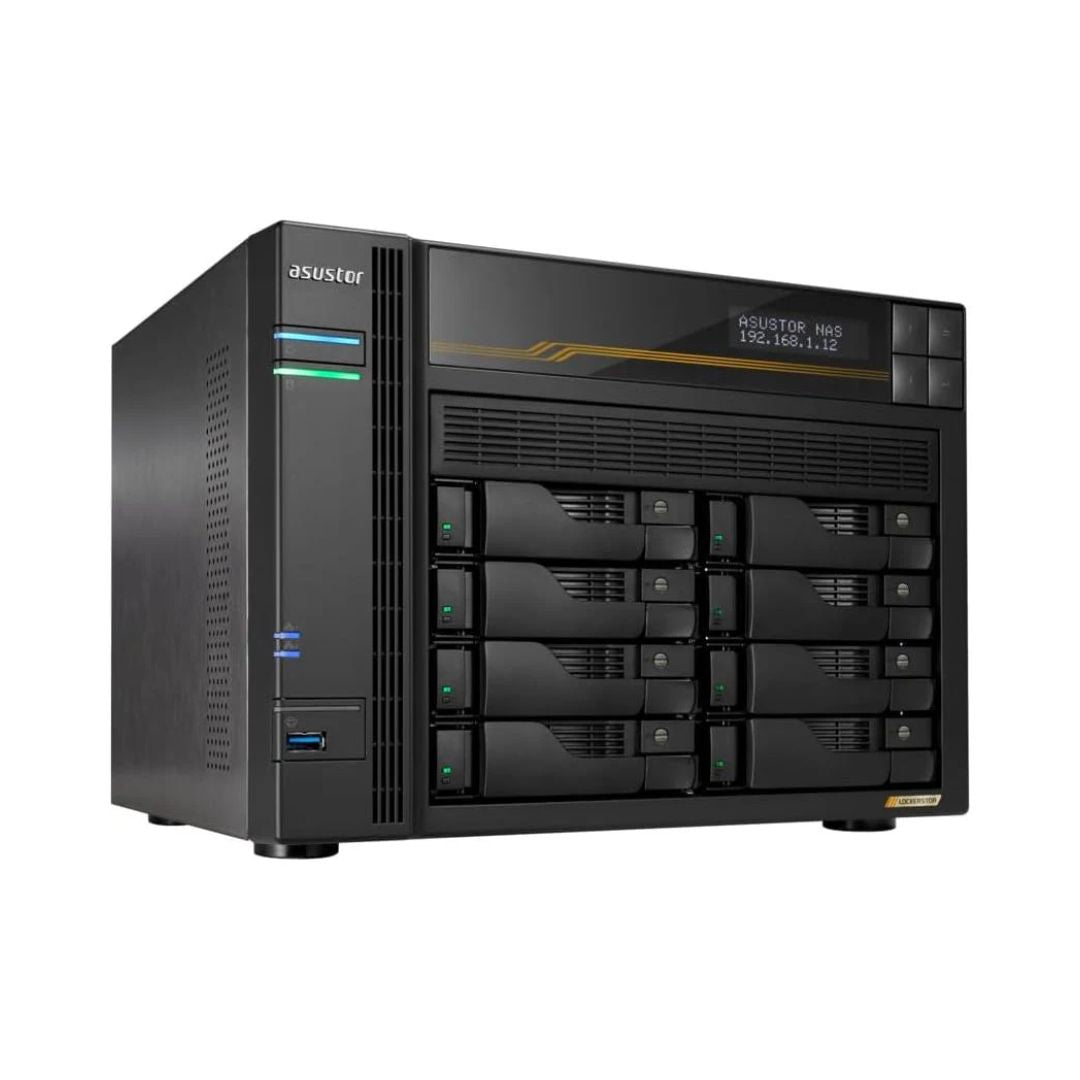

Asustor LOCKERSTOR 8 Server - AS6808T

NAS Server Specification

• Model: LOCKERSTOR 8 Gen3 (AS6808T)
• Drive Bays: 8 x 3.5"/2.5" SATA hot-swap bays + 4 x M.2 NVMe (PCIe 4.0) slots
• CPU: AMD Ryzen Embedded V3C14, Quad-Core, 2.3 GHz (up to 3.8 GHz)
• RAM: 16GB DDR5-4800 ECC installed & up to 64GB max
• Drive Support: 3.5"/2.5" SATA HDD & SSD + M.2 2280 NVMe SSD
• Max Raw Capacity: Up to 240 TB (8 x 30TB)
• RAID Support: Single, JBOD, RAID 0, 1, 5, 6, 10
• Network: 2 x 10GbE + 2 x 5GbE RJ45
• USB: 2 x USB4 (40Gbps) & 3 x USB 3.2 Gen 2 Type-A
• Hot-Swappable: Yes
• Operating System: Asustor ADM (Data Master)
• Form Factor: Desktop (8-bay tower)

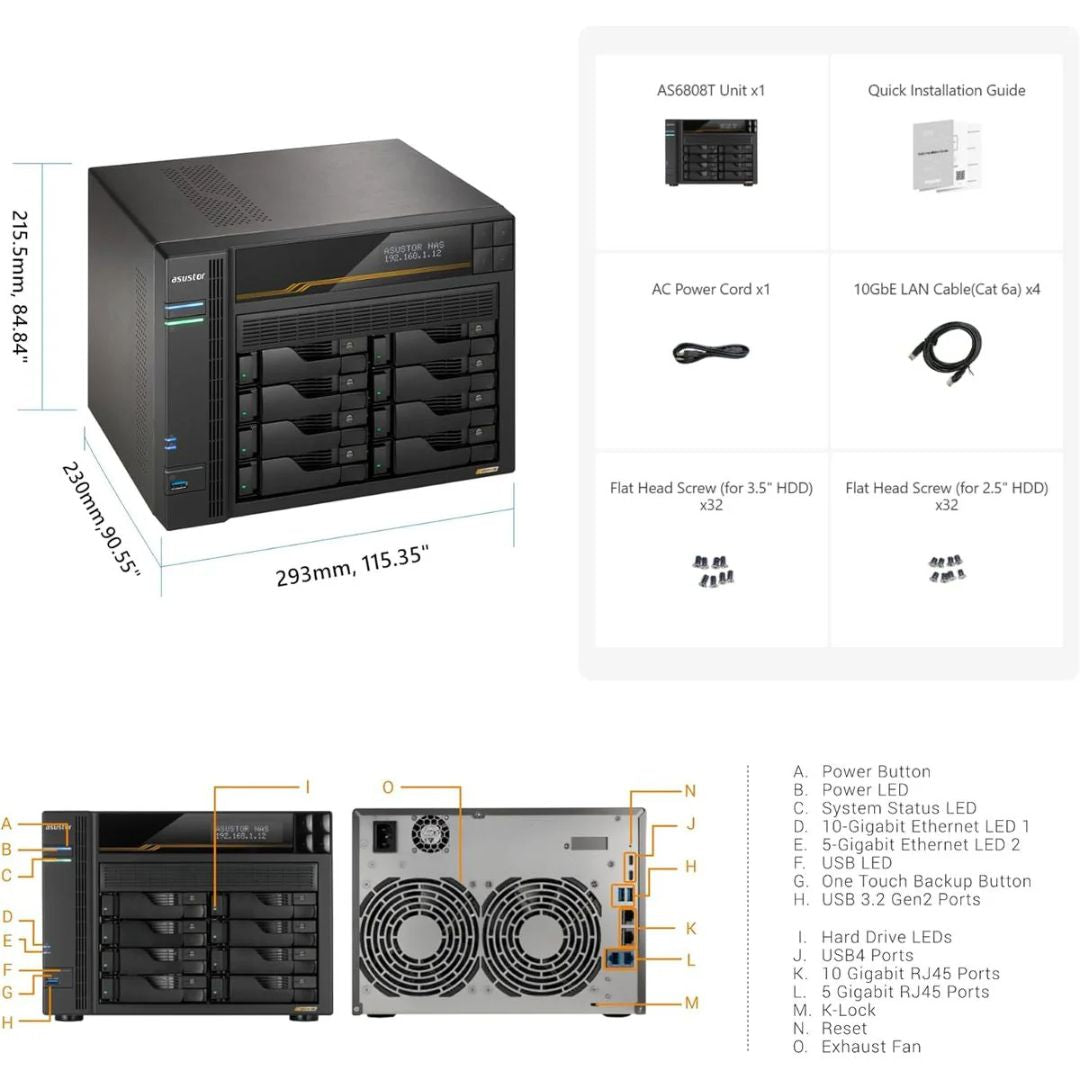

• Included in the Box: NAS unit, power adapter or cords, RJ45 cables, screws, quick start guide
