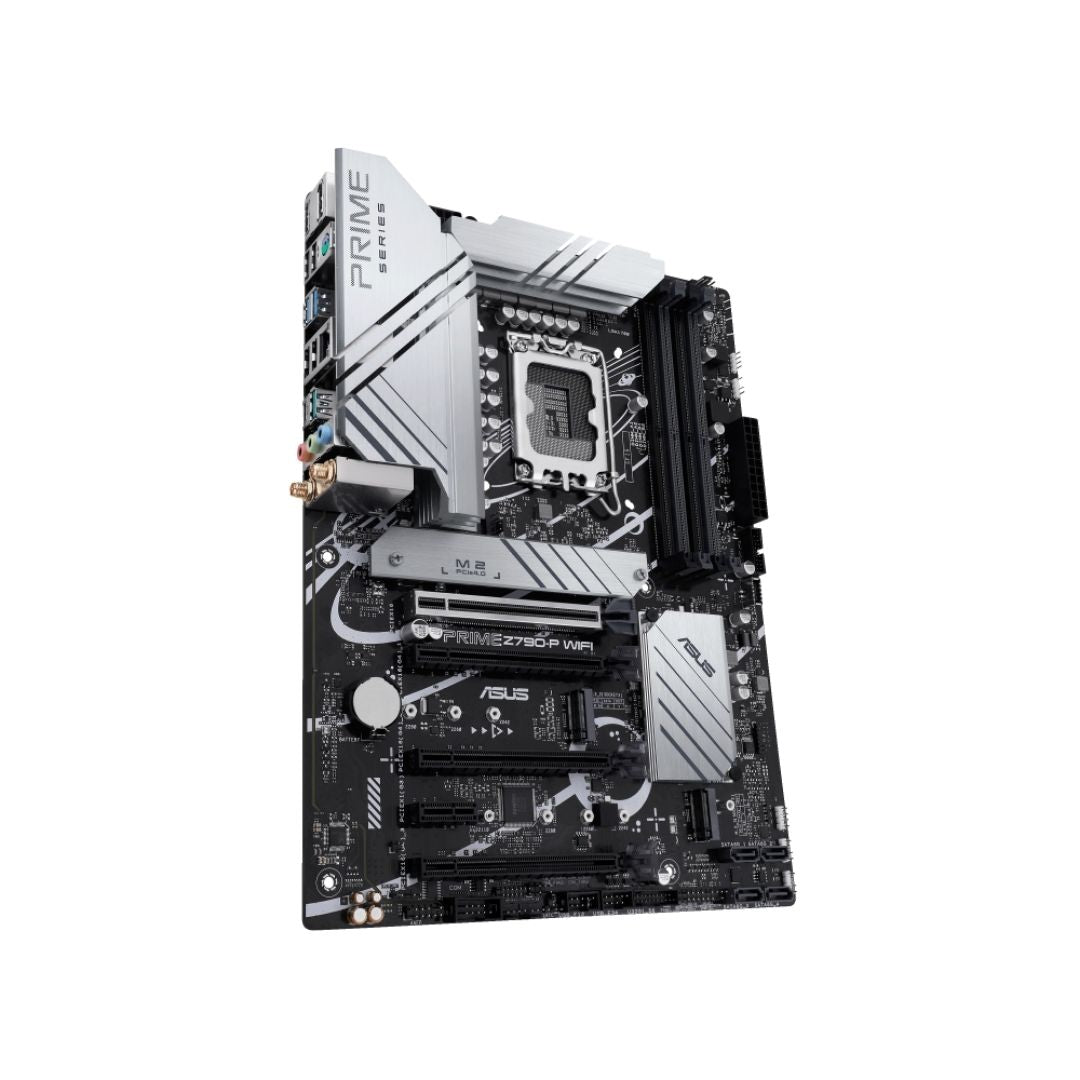

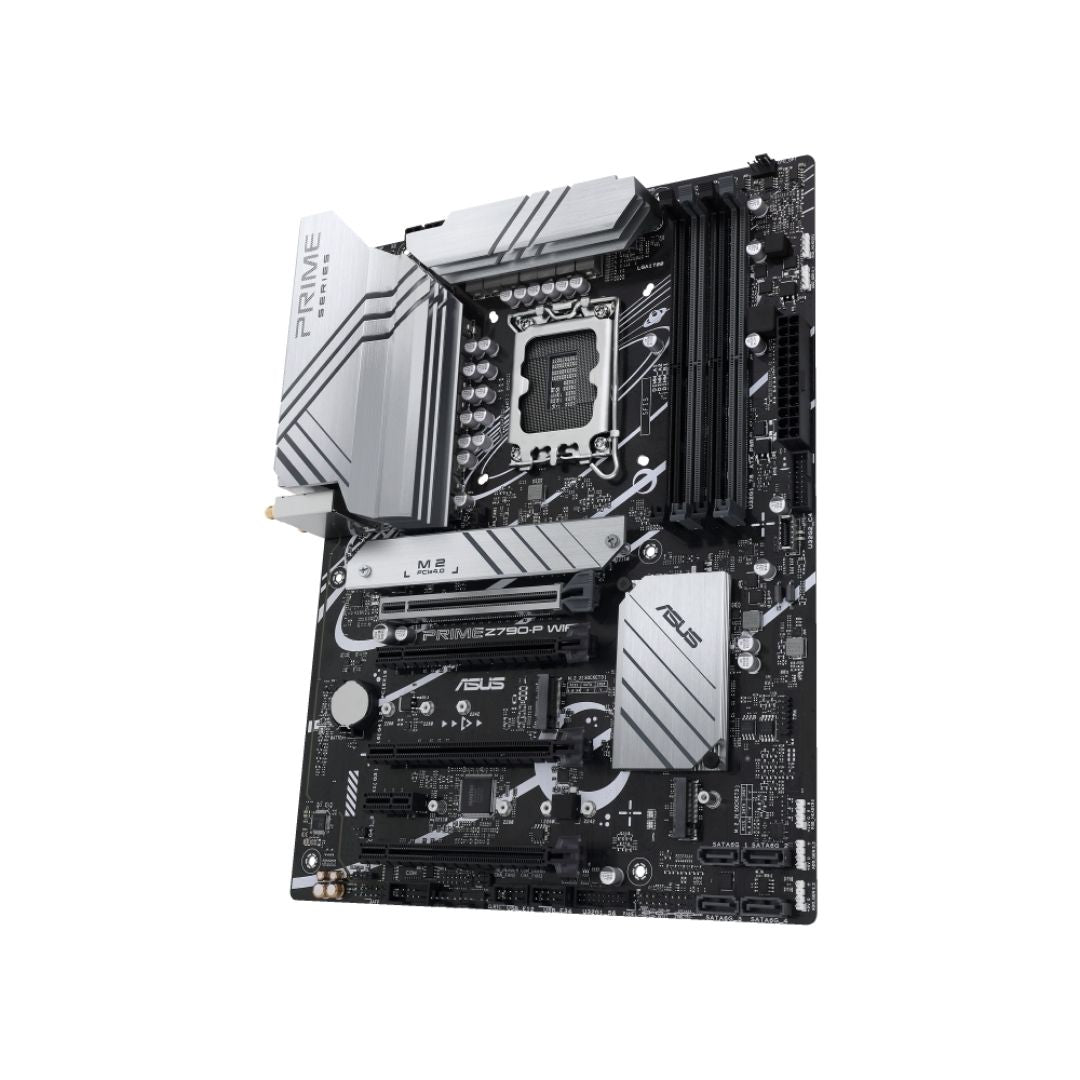

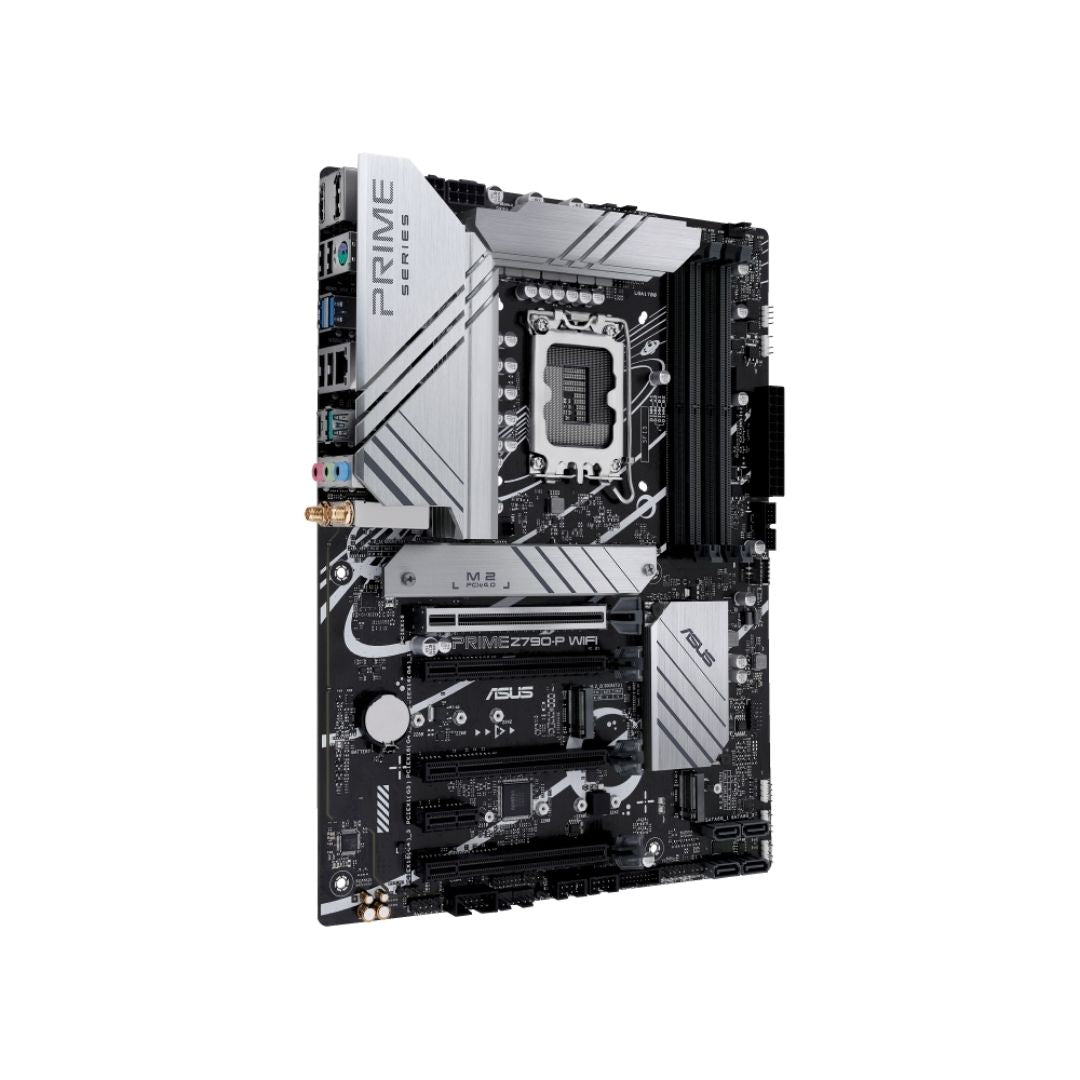

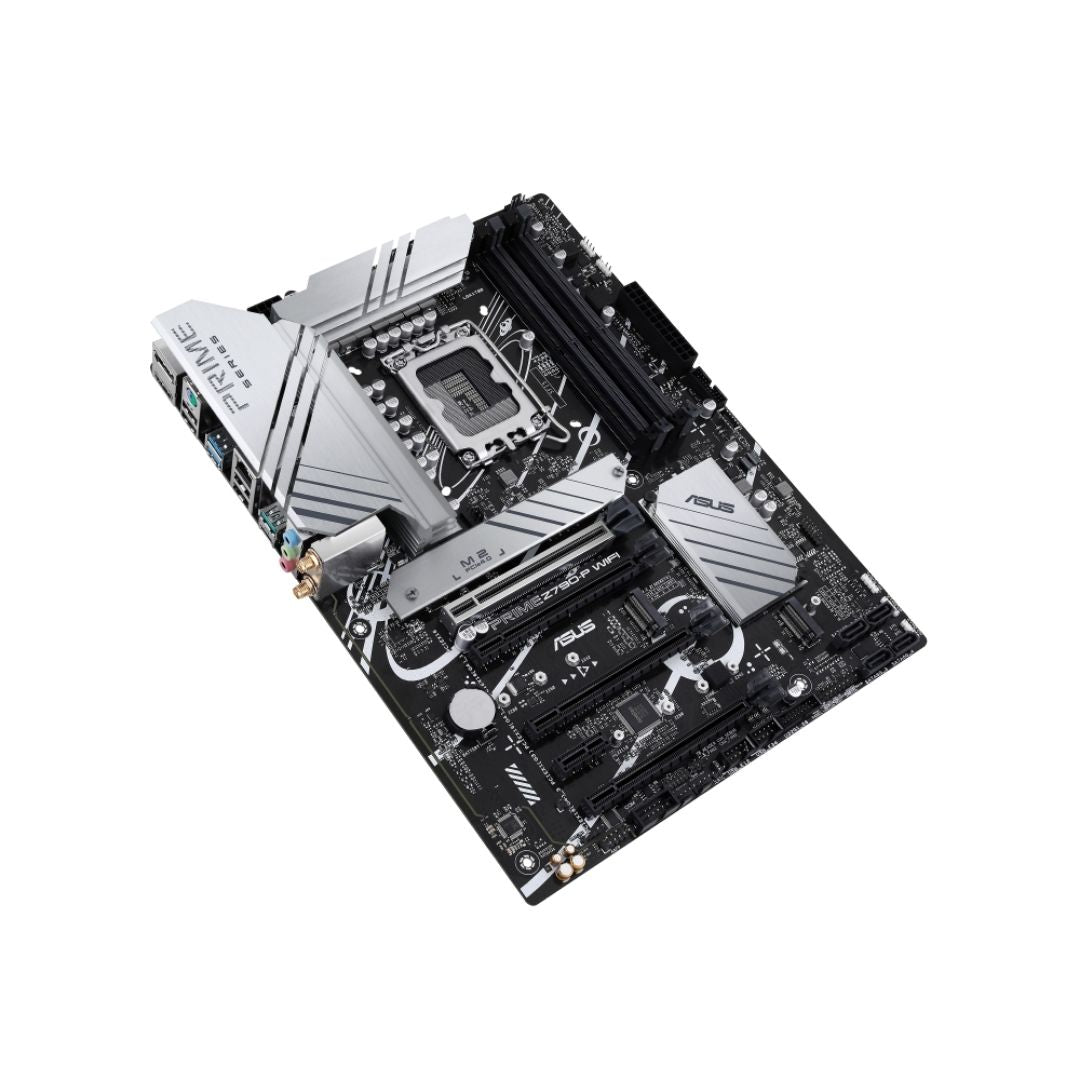

ASUS PRIME Z790-P WIFI, Motherboard

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors)
• Chipset: Intel® Z790
• Form Factor: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)
• Memory Support: DDR5 (Supports DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz, Non-ECC, Un-buffered, Dual-Channel, Intel® XMP 3.0, ASUS Enhanced Memory Profile II)
• Memory Slots & Max Capacity: 4x DIMM slots, Up to 192 GB (Supports single 48GB DIMMs)
• PCIe Expansion Slots:
  ◦ 1x PCIe 5.0 x16 slot (supports x16 mode from CPU, SafeSlot Core+)
  ◦ 3x PCIe 4.0 x16 slots (PCIEX16_2, PCIEX16_3 & PCIEX16_4; support x4 mode from Z790 Chipset)
  ◦ 1x PCIe 3.0 x1 slot (from Z790 Chipset)
• M.2 Storage Slots:
  ◦ 1x M.2_1 slot (Key M, type 2242/2260/2280 from CPU) — supports PCIe 4.0 x4 mode
  ◦ 1x M.2_2 slot (Key M, type 2242/2260/2280 from Z790 Chipset) — supports PCIe 4.0 x4 mode
  ◦ 1x M.2_3 slot (Key M, type 2242/2260/2280/22110 from Z790 Chipset) — supports PCIe 4.0 x4 & SATA modes, includes M.2 heatsink
• SATA Ports: 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10)

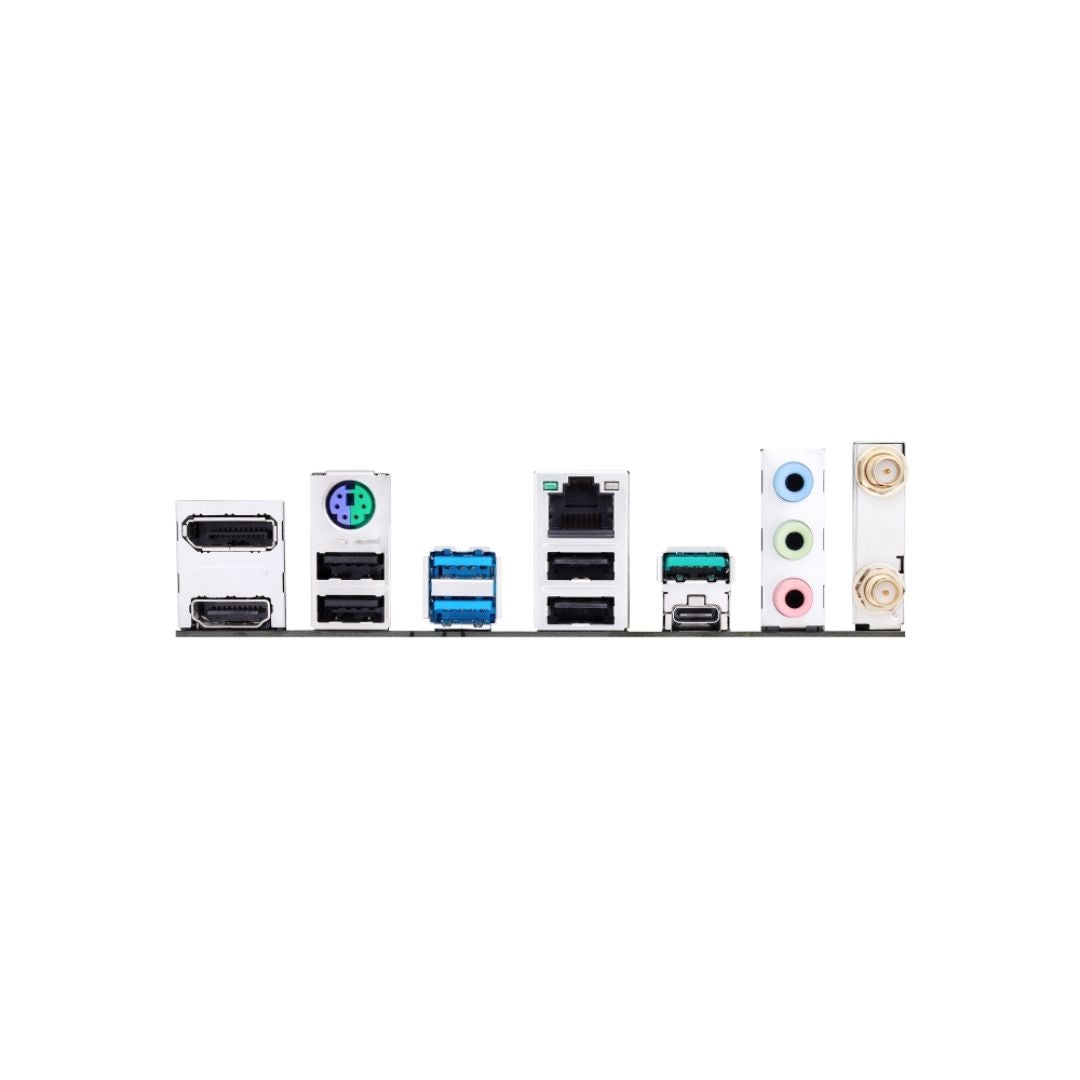

• Rear I/O USB Ports:
  ◦ 1x USB 3.2 Gen 2x2 Type-C® (20Gbps)
  ◦ 1x USB 3.2 Gen 2 Type-A (10Gbps)
  ◦ 2x USB 3.2 Gen 1 Type-A (5Gbps)
  ◦ 4x USB 2.0 Type-A
• Internal Front Panel USB Headers:
  ◦ 1x USB 3.2 Gen 2 Type-C® header (10Gbps)
  ◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 Type-A ports)
  ◦ 2x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Networking & Connectivity: Realtek® 2.5Gb Ethernet, Wi-Fi 6 (802.11ax 2x2), Bluetooth 5.2
• Display Outputs:
  ◦ 1x DisplayPort 1.4 (supports up to 4K @ 60Hz)
  ◦ 1x HDMI 2.1 (supports up to 4K @ 60Hz)
• Audio Codec: Realtek® 7.1 Surround Sound High Definition Audio CODEC (with Audio Shielding & Premium Audio Capacitors)
• Power Delivery / Power Connectors: 14+1 DrMOS Power Stages, Digi+ VRM, ProCool Power Connectors, 1x 24-pin ATX Main Power connector, 1x 8-pin ATX 12V Power connector, 1x 4-pin ATX 12V Power connector
• RGB & Fan Headers:
  ◦ 1x 4-pin CPU Fan header
  ◦ 1x 4-pin CPU OPT Fan header
  ◦ 1x 4-pin AIO Pump header
  ◦ 3x 4-pin Chassis Fan headers
  ◦ 3x Addressable Gen 2 headers (ARGB 5V)
  ◦ 1x Aura RGB header (12V)
• Special Features: VRM Heatsinks & M.2 Heatsink, M.2 Q-Latch, Q-LED Core, BIOS FlashBack™, Thunderbolt™ 4 (USB4®) header, TPM header
