ASRock Z490 Taichi (WI-FI) Motherboard

Motherboard Specification

• Model: ASRock Z490 Taichi WiFi
• Chipset: Z490
• CPU Socket: LGA 1200
• Processor Support: Intel 10th & 11th Gen Core
• Memory: 4 x DIMM, DDR4, up to 128GB, 4666+ MHz (OC), Dual Channel, Intel XMP
• Form Factor: ATX
• Expansion Slots: 3 x PCIe 4.0 x16 (x16 / x8+x8 / x8+x8+x4)
• Storage: 4 x M.2 (PCIe 4.0/3.0), 8 x SATA 6Gb/s, RAID 0/1/5/10

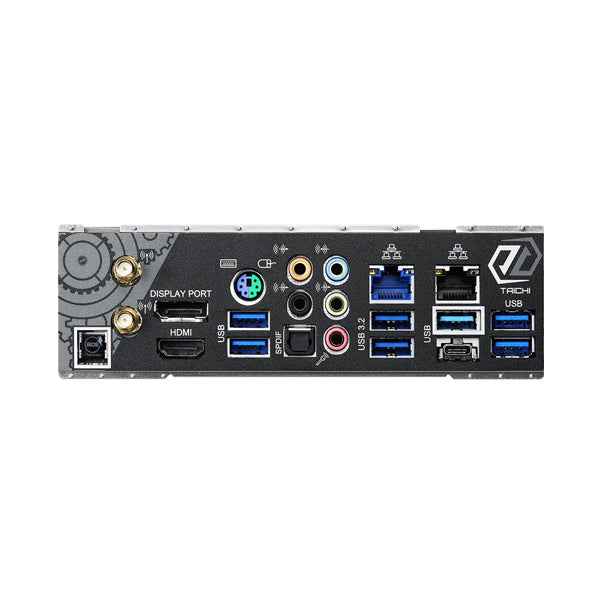

• Networking: 2.5GbE + 1GbE Dual Ethernet, Wi-Fi 6 + Bluetooth 5.1
• Rear USB: 1 x USB-C (20Gbps), 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1
• Display Outputs: 1 x HDMI, 1 x DisplayPort
• Audio: Realtek ALC1220 + ESS SABRE9218 DAC, 7.1-channel
• Included in the Box: Motherboard, SATA cable(s), M.2 screw(s), user manual, Wi-Fi antenna
