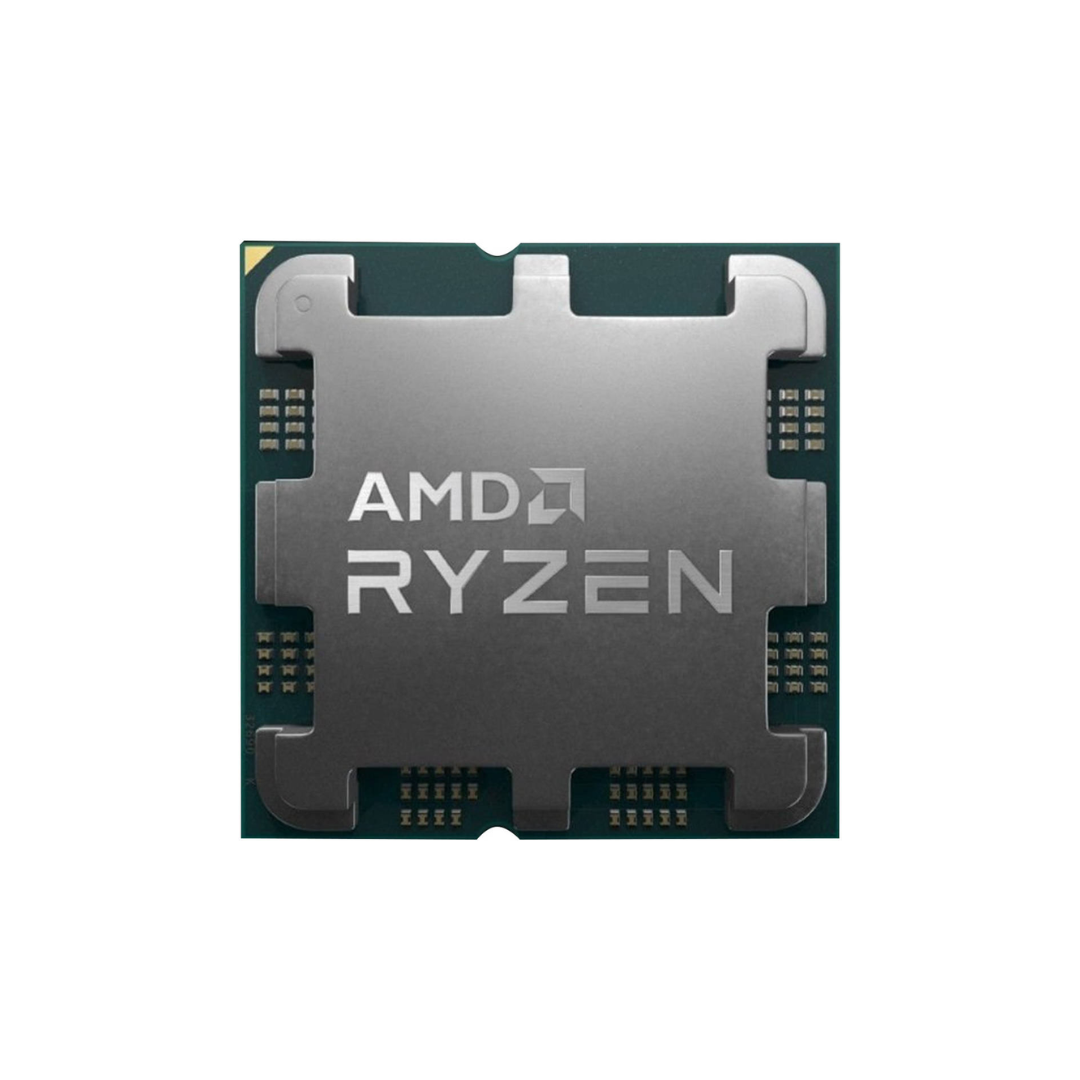

AMD Ryzen™ 5 7600X Desktop Processor - Try

Processor Specification

• Sockets Supported: Socket AM5
• Architecture / Code: Zen 4 (Raphael)
• Total Cores: 6 Cores
• Core Breakdown: N/A (All Full-Performance Cores)
• Total Threads: 12 Threads
• Multithreading: Enabled (AMD Simultaneous Multithreading / SMT)
• Max Turbo / Boost Frequency: Up to 5.3 GHz
• Base Frequency: Base: 4.7 GHz
• L3 Cache: 32 MB
• L2 Cache: 6 MB
• L1 Cache: 384 KB
• Processor Power: Base Power (Default TDP): 105 W | Max Power (PPT): 142 W
• Max Temperature (TjMax): 95 °C
• System Memory Support: Up to DDR5-5200 MT/s
• Max Memory Capacity: 128 GB
• Memory Channels: Dual-Channel (2 Channels)
• PCI Express Revision & Lanes: PCIe 5.0 (28 Total Lanes / 24 Usable)
• Processor Graphics: AMD Radeon Graphics (2 Cores)
• NPU / AI Acceleration: No
• Unlocked for Overclocking: Yes
