MSI PRO B760M-P DDR4, Motherboard
Motherboard Specification
• Processor Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold and Celeron Processors, LGA1700
• Chipset: Intel B760
• Memory Support: 4 × DDR4 DIMM, Up to 128GB, DDR4 4800+ MHz OC, Dual Channel, Intel XMP Support
• Graphics Ports: 1 × HDMI 1.4, 1 × DisplayPort 1.4, 1 × VGA
• Expansion Slots: 1 × PCIe 4.0 x16, 2 × PCIe 4.0 x1
• Storage: 2 × M.2 PCIe 4.0 x4 Slots, 4 × SATA 6Gb/s, SATA RAID 0 / 1 / 5 / 10 Support
• Ethernet: Realtek RTL8111H Gigabit LAN
• Wireless & Bluetooth: Not available
• USB: Rear: 1 × USB 10Gbps Type-C, 1 × USB 5Gbps Type-A, 4 × USB 2.0; Front: 2 × USB 5Gbps Type-A, 4 × USB 2.0
• Audio: Realtek ALC897, 7.1-Channel HD Audio
• Internal I/O Connectors: 24-Pin ATX Power, 8-Pin CPU Power, CPU Fan, 2 × System Fan, Front Panel, Front Audio, RGB LED, TPM 2.0 Header, COM Port, Printer Port, USB Headers

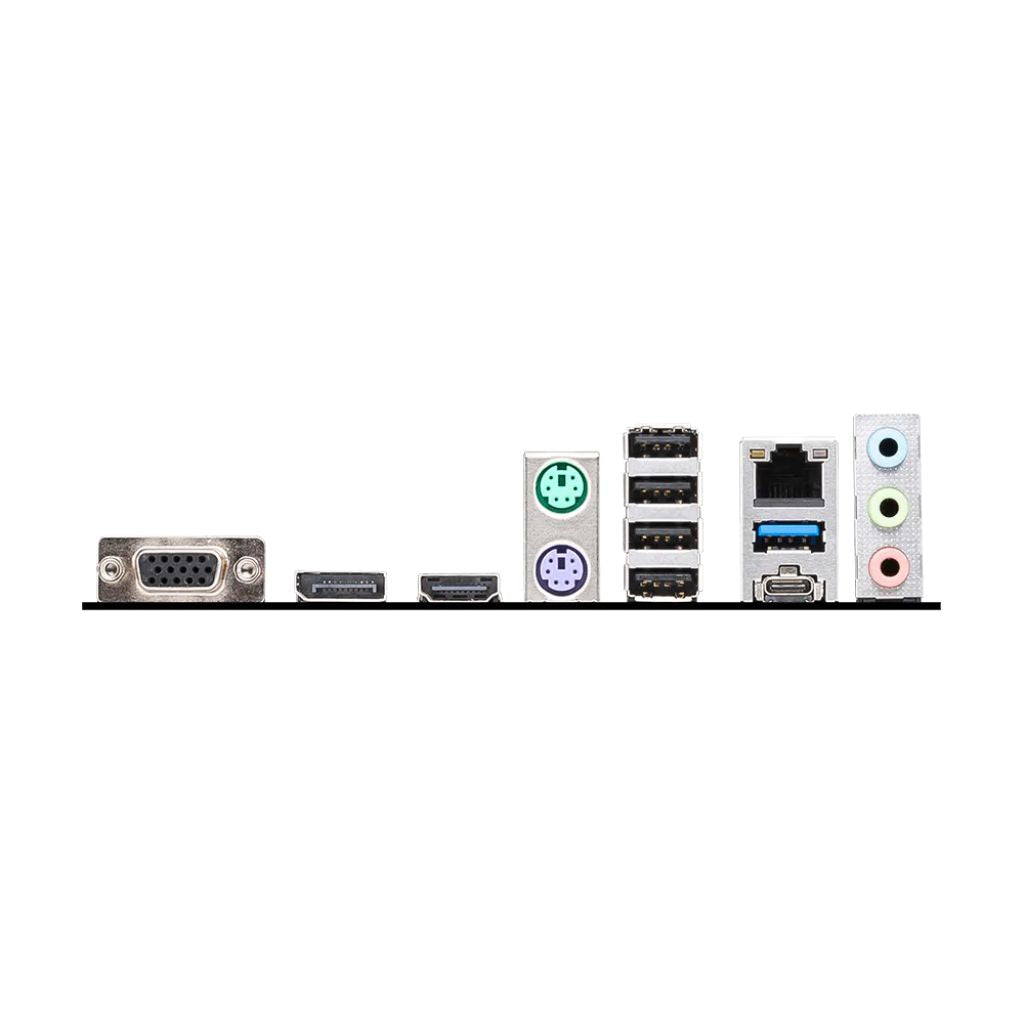

• Back Panel I/O Ports: VGA, DisplayPort, HDMI, PS/2 Keyboard / Mouse, USB 2.0, LAN, Audio Connectors, USB 5Gbps Type-A, USB 10Gbps Type-C
• Form Factor: Micro-ATX, 243.84 × 243.84mm
