Gigabyte X870E AORUS Master - AMD AM5 Motherboard
Motherboard Specification
• Processor Support: AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Chipset: AMD X870E
• Memory Support: 4 × DDR5 DIMM, Up to 256GB, Dual Channel, AMD EXPO and Intel XMP Support
• Graphics Ports: 1 × HDMI, 2 × USB4 Type-C with DisplayPort Video Output
• Expansion Slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4, 1 × PCIe 3.0 x2
• Storage: 4 × M.2 Slots, 4 × SATA 6Gb/s Ports
• Ethernet: Realtek 5GbE LAN
• Wireless & Bluetooth: Wi-Fi 7, Bluetooth 5.4
• USB: 2 × USB4 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0
• Audio: Realtek ALC1220 HD Audio, ESS ES9118 DAC
• Internal I/O Connectors: 24-Pin ATX Power, 2 × 8-Pin CPU Power, CPU Fan, System Fan, Pump, ARGB, RGB, Front USB-C, Front USB, SATA, TPM, Front Panel

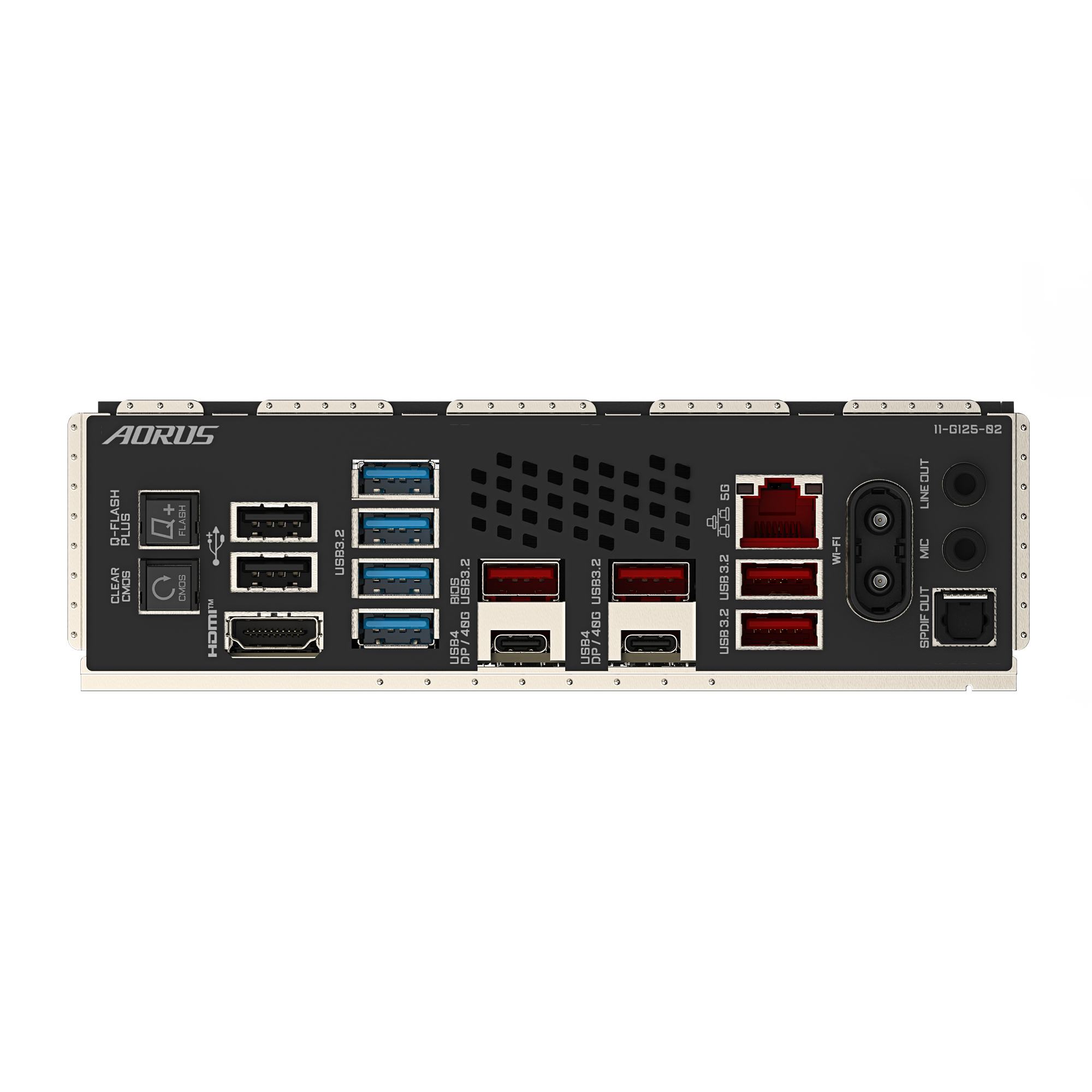

• Back Panel I/O Ports: HDMI, 2 × USB4 Type-C, USB 3.2 Type-A, 5GbE LAN, Wi-Fi Antenna Connectors, Audio Jacks, Optical S/PDIF Out, Q-Flash Plus Button, Clear CMOS Button
• Form Factor: E-ATX, 30.5 × 26.9cm
