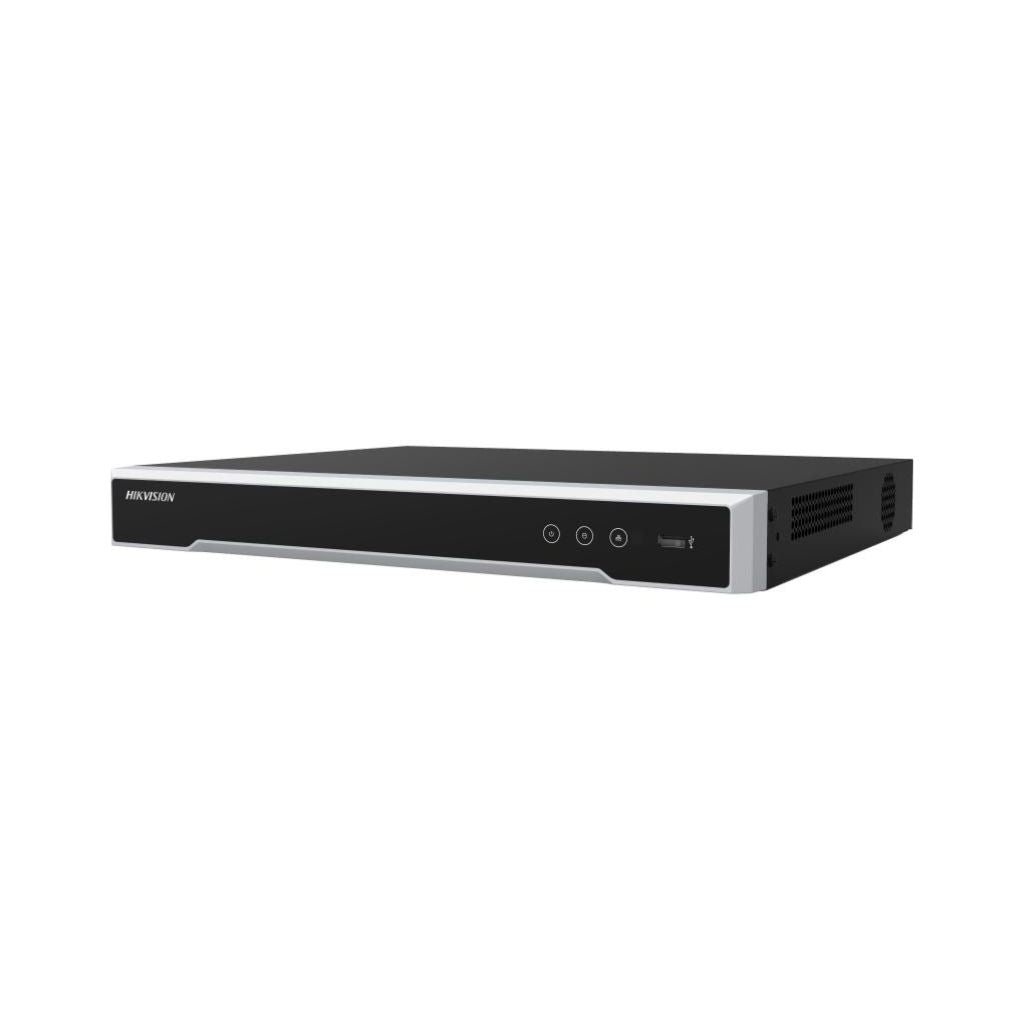

Hikvision DS-7616NI-M2 16-ch 1U 8K NVR

NVR Specifications

• Model: Hikvision DS‑7616NI‑M2
• Type: 16‑channel 1U 8K NVR

Video/Audio Input

• 16 × IP camera inputs
• Up to 32 MP resolution recording
• Incoming bandwidth: 160 Mbps

Decoding Capacity

• 2‑ch @ 32 MP
• 4‑ch @ 24 MP
• 8‑ch @ 12 MP
• 16‑ch @ 8 MP
• 32‑ch @ 1080p

Features

• 8K Ultra‑HD Support: HDMI output up to 8K (7680 × 4320)
• Video Compression: H.265+/H.265/H.264+/H.264
• Smart Functions: Motion detection, perimeter protection, face capture, people counting
• Display Output: Multiple HDMI/VGA outputs, independent display channels
• Storage: 2 × SATA interfaces, each up to 10 TB
• Audio: 1‑ch two‑way audio

Connectivity

• 1 × RJ‑45 10/100/1000 Mbps Ethernet
• 2 × USB 2.0, 1 × USB 3.0
• Alarm I/O: 16 in / 4 out

Physical

• Dimensions (W × D × H): 380 × 290 × 45 mm
• Weight: ~2 kg (without HDD)
• Housing: Metal, 1U rackmount design

Environmental

• Operating Temperature: −10 °C to +55 °C
• Power Supply: 100–240 VAC, 50/60 Hz
• Consumption: ≤ 25 W (without HDD)

Package Contents

• DS‑7616NI‑M2 NVR × 1
• Power Cord × 1
• Mouse × 1
• Rackmount Kit × 1
• Quick Installation Guide × 1
• Warranty Information × 1
