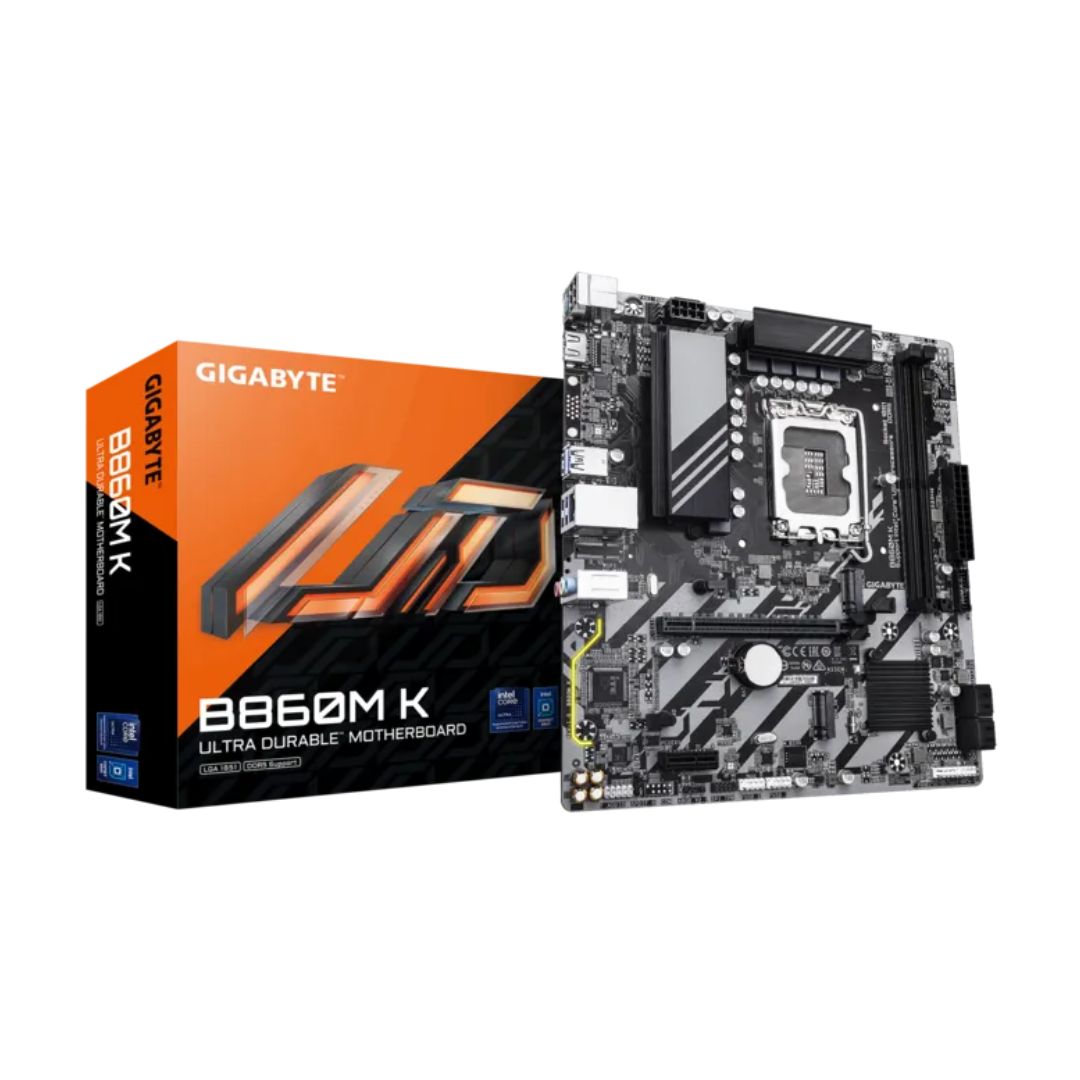

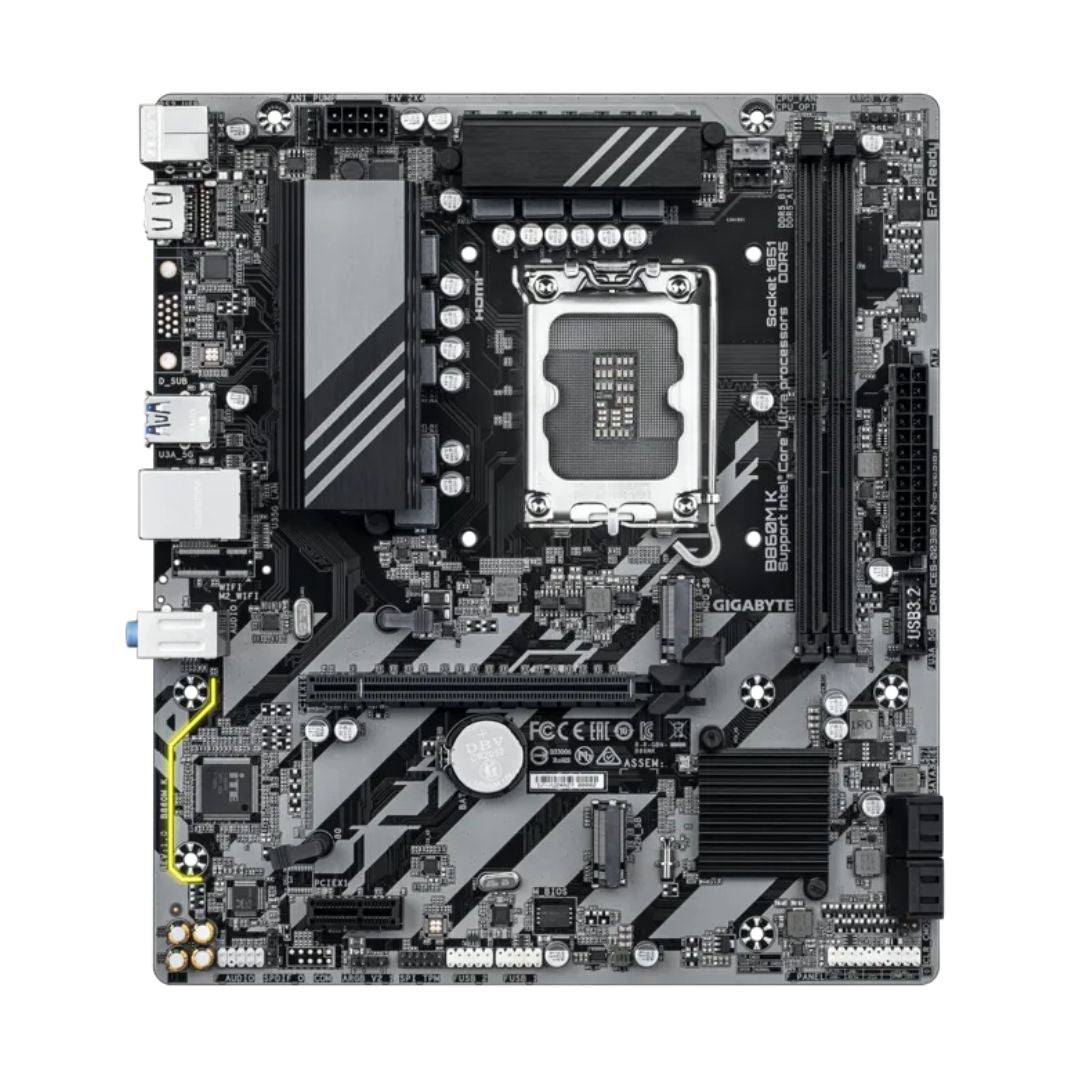

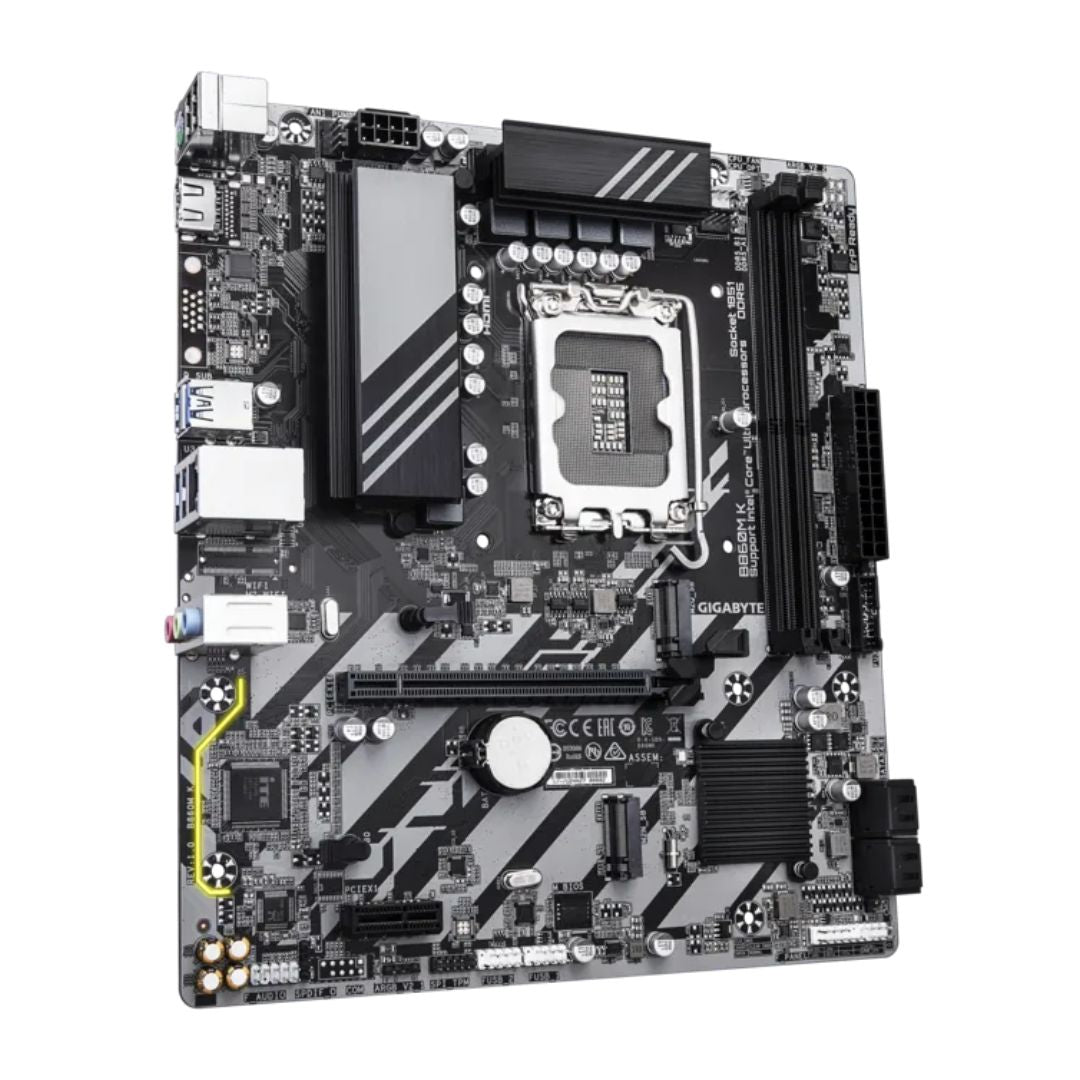

Gigabyte UD B860M-K, Motherboard

Memory Specifications

• Model: Gigabyte UD B860M‑K
• Form Factor: Micro‑ATX
• Chipset: Intel B860 Express
• Socket: LGA1851
• CPU Support: Intel® Core Ultra 200 Series

Memory

• Type: DDR5
• Slots: 2 × DIMM
• Capacity: Up to 128 GB
• Speed: Up to DDR5‑8800 (OC)
• Features: Dual Channel, Intel® XMP 3.0

Storage

• M.2 Slots: 2 × PCIe 4.0 x4 (NVMe SSD)
• SATA Ports: 4 × SATA 6 Gb/s
• RAID Support: 0 / 1 / 5 / 10

Expansion

• GPU Slot: 1 × PCIe 5.0 x16
• Additional Slot: 1 × PCIe 4.0 x4

Connectivity

• LAN: Realtek 2.5 GbE RJ‑45
• Audio: Realtek HD Audio

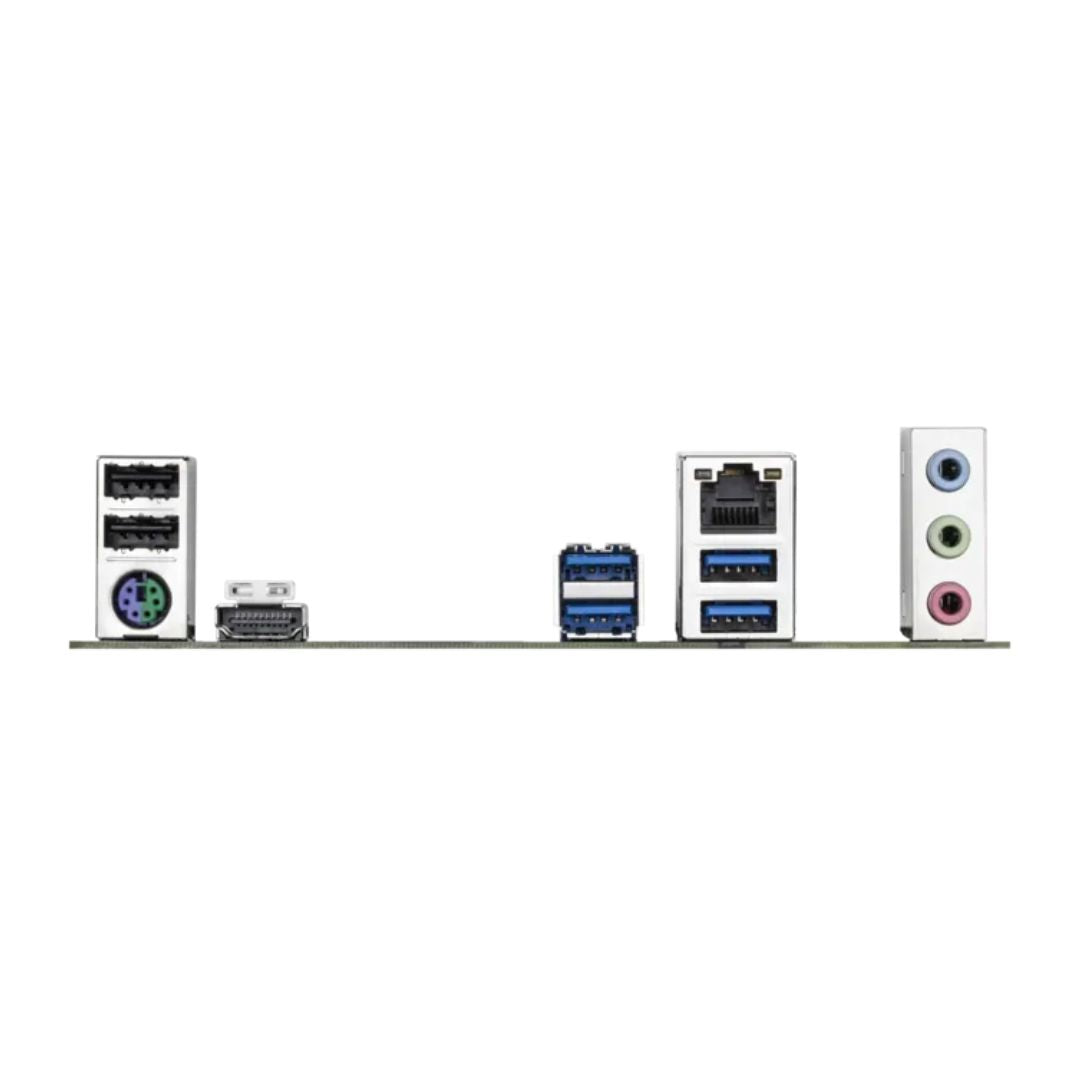

• USB Ports (Rear I/O):
  • 1 × USB 3.2 Gen2 (10 Gbps) Type‑A
  • 2 × USB 3.2 Gen1 (5 Gbps) Type‑A
  • 3 × USB 2.0 Type‑A
• Video Outputs:
  • 1 × HDMI 2.1 (4K@60Hz)
  • 1 × DisplayPort 1.4 (4K@60Hz)

Features

• BIOS: Q‑Flash support
• VRM: Hybrid 4+1+2 phase design
• Color: Black

Package Contents

• Gigabyte UD B860M‑K Motherboard × 1
• I/O Shield × 1
• User Manual × 1
