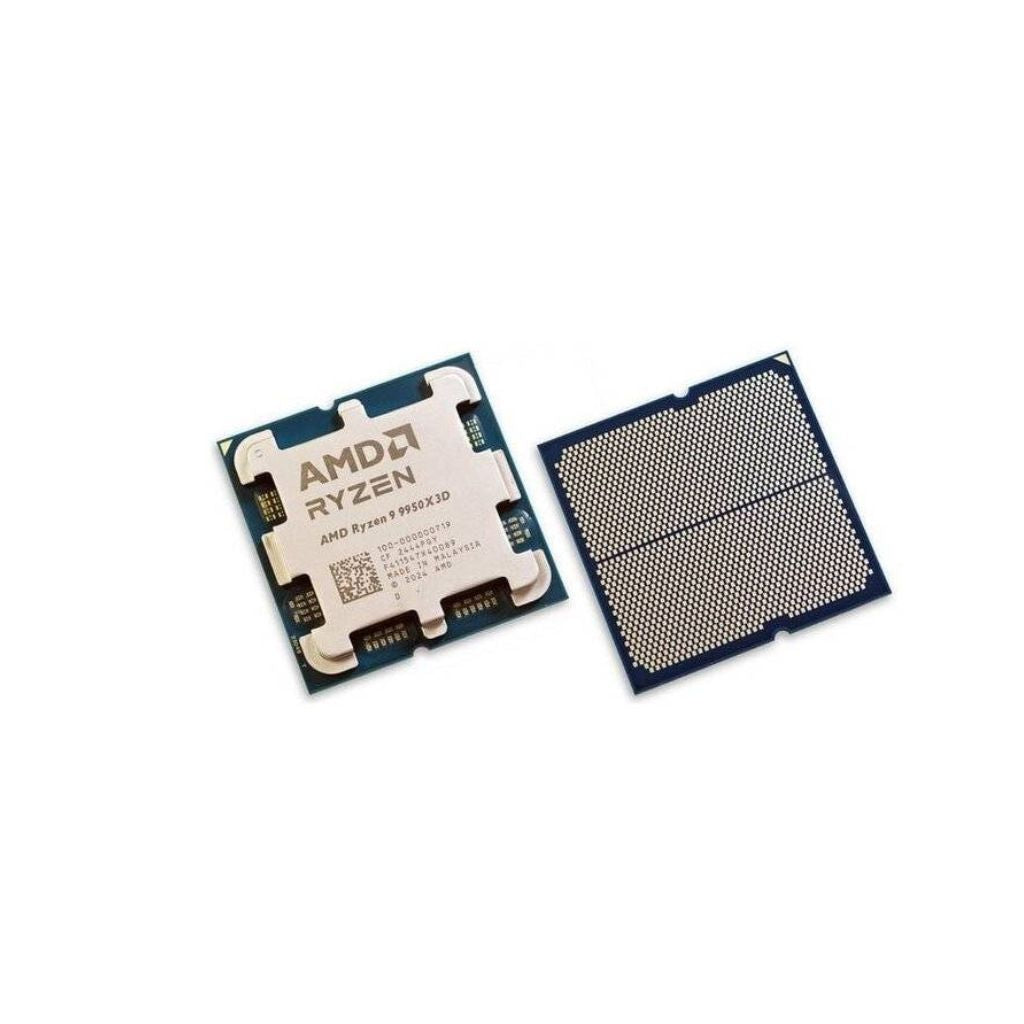

AMD Ryzen 9 9950X3D Processor - BOX
General
-
Brand: AMD
-
Model: Ryzen 9 9950X3D
-
Product Type: Desktop Processor
-
Series: Ryzen 9000 Series
-
Form Factor: Boxed Processor
-
CPU Socket: AM5
-
Architecture: Zen 5
-
Codename: Granite Ridge AM5
-
Processor Technology: TSMC 4nm FinFET
-
I/O Die Technology: TSMC 6nm FinFET
Performance
-
CPU Cores: 16
-
Threads: 32
-
Base Clock: 4.3 GHz
-
Max Boost Clock: Up to 5.7 GHz
-
L1 Cache: 1,280 KB
-
L2 Cache: 16 MB
-
L3 Cache: 128 MB
-
Total Cache: 144 MB
-
Default TDP: 170 W
-
Max Operating Temperature: 95°C
Memory & Connectivity
-
Memory Type: DDR5
-
Memory Channels: 2
-
Max Memory: 256 GB
-
Max Memory Speed: DDR5-5600
-
ECC Support: Yes, motherboard support required
-
PCI Express Version: PCIe 5.0
-
Native PCIe Lanes: 28 total / 24 usable
-
NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
Graphics
-
Integrated Graphics: AMD Radeon Graphics
-
Graphics Core Count: 2
-
Graphics Frequency: 2200 MHz
-
USB-C DisplayPort Alternate Mode: Supported
Features
-
AMD 3D V-Cache Technology: Supported
-
Unlocked for Overclocking: Yes
-
AMD EXPO Memory Overclocking: Supported
-
Precision Boost Overdrive: Supported
-
Curve Optimizer Voltage Offsets: Supported
-
AMD Ryzen Master Support: Supported
-
CPU Boost Technology: Precision Boost 2
-
Instruction Set: x86-64
-
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX-512, FMA3, SHA, SSE Series
Compatibility
-
Supported Chipsets: A620, B650, B650E, B840, B850, X670, X670E, X870, X870E
-
OS Support: Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit
-
Thermal Solution: Not Included
-
Recommended Cooler: Liquid cooler recommended
Product IDs
-
Boxed Product ID: 100-100000719WOF
-
Tray Product ID: 100-000000719
Package Contents
-
AMD Ryzen 9 9950X3D BOX Desktop Processor × 1
-
Retail Box × 1
-
User Documentation × 1
