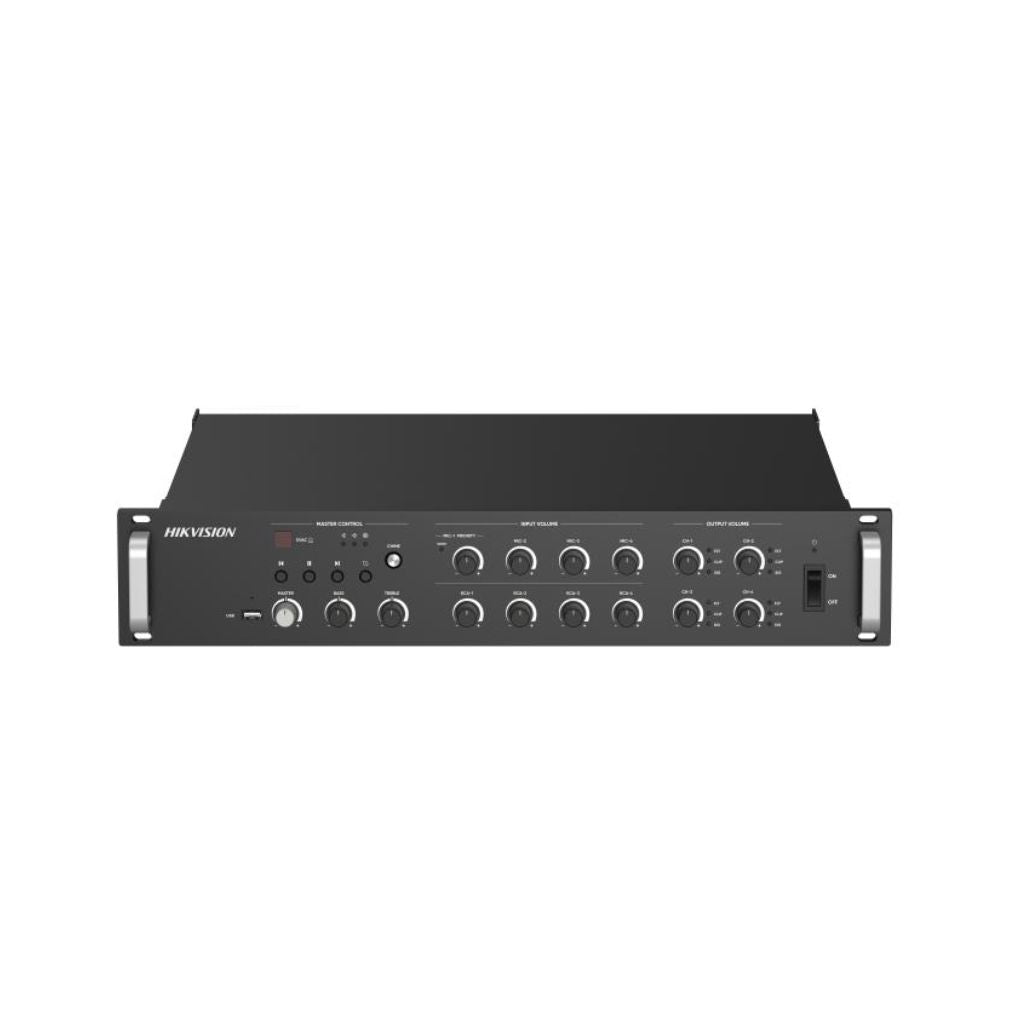

Hikvision DS-QAZ1A1000G1-VB4/EU 1000W 4-Zone Network Amplifier

Amplifier Specifications

• Model: Hikvision DS‑QAZ1A1000G1‑VB4/EU
• Type: 1000 W 4‑Zone Network Amplifier

Audio

• Rated Power Output: 1000 W
• Zones: 4 independent zones with volume control
• Frequency Response: 50 Hz – 18 kHz
• Impedance: 8 Ω
• Signal‑to‑Noise Ratio (SNR): ≥ 95 dB

Features

• Multi‑Zone Control: Supports paging and music distribution across 4 zones
• Network Functionality: IP‑based control and monitoring
• Inputs: Multiple line inputs, microphone input with priority function
• Outputs: Speaker outputs for 4 zones, line output for external devices
• Controls: Individual zone volume adjustment, master volume, bass/treble control
• Protection: Overload, short‑circuit, and thermal protection

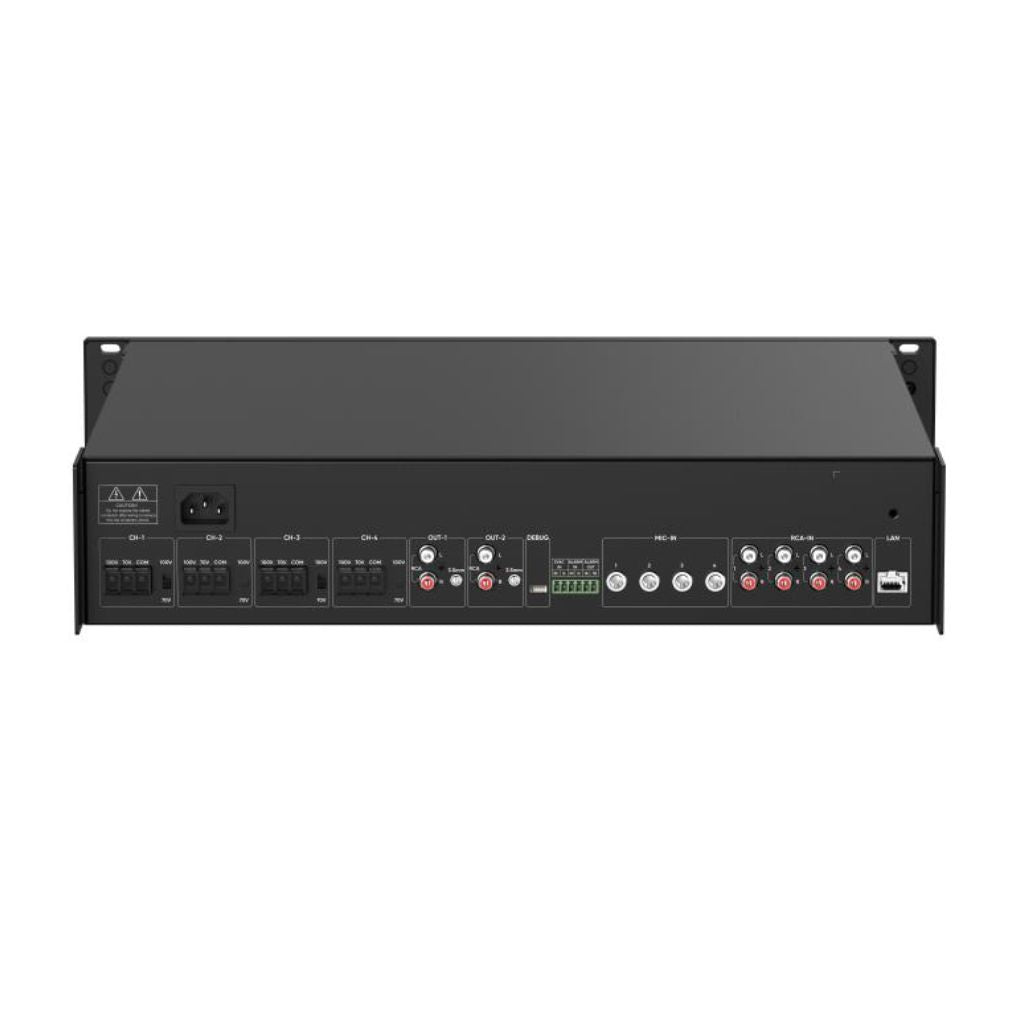

Connectivity

• Audio Inputs: MIC × 2, AUX × 2, Line × 2
• Audio Outputs: 4 zone speaker outputs, 1 line output
• Network Interface: RJ‑45 Ethernet port for remote management

Physical

• Dimensions (W × D × H): ~430 × 450 × 120 mm
• Weight: ~12 kg
• Material: Metal chassis with front panel controls
• Color: Black

Environmental

• Operating Temperature: −10 °C to +55 °C
• Indoor Use: Suitable for offices, schools, retail, and commercial spaces

Package Contents

• DS‑QAZ1A1000G1‑VB4/EU Amplifier × 1
• Power Cord × 1
• Connection Accessories × 1 set
• Quick Installation Guide × 1
• Warranty Information × 1
