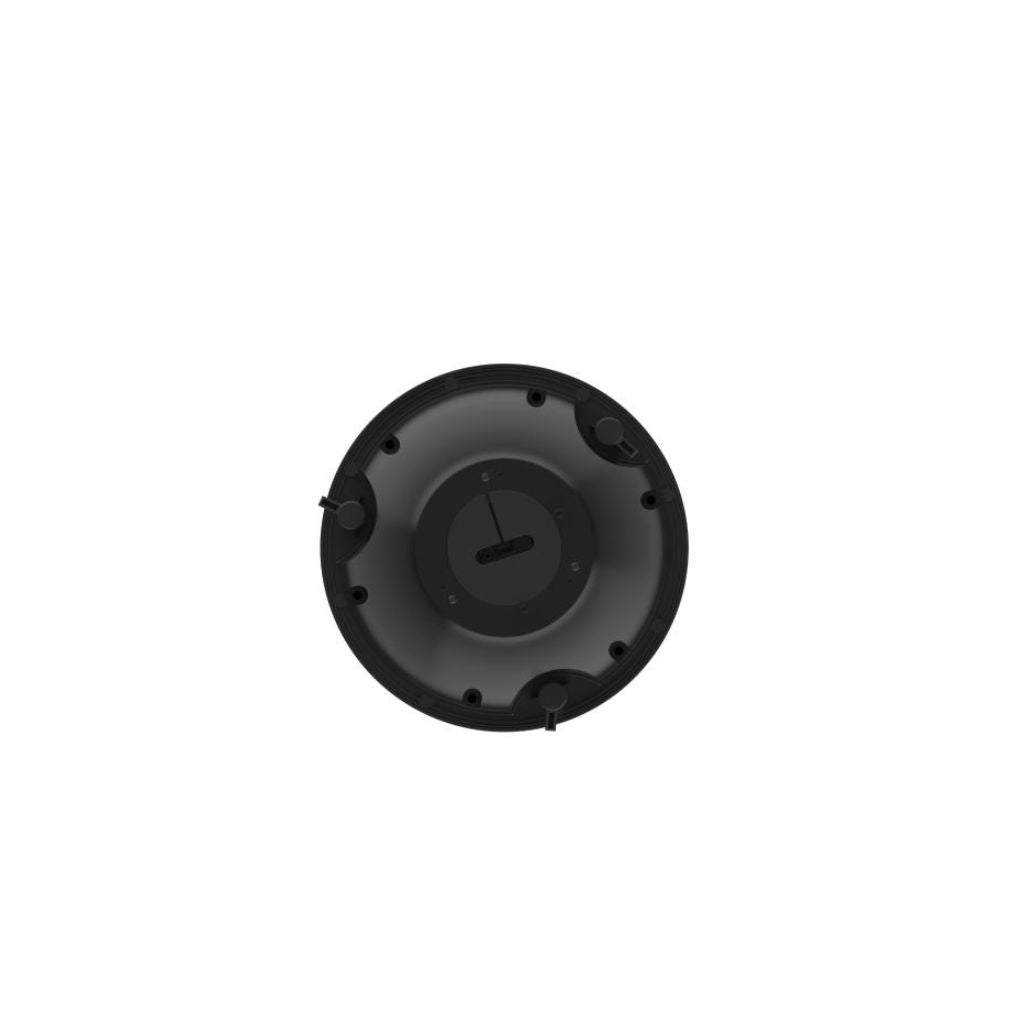

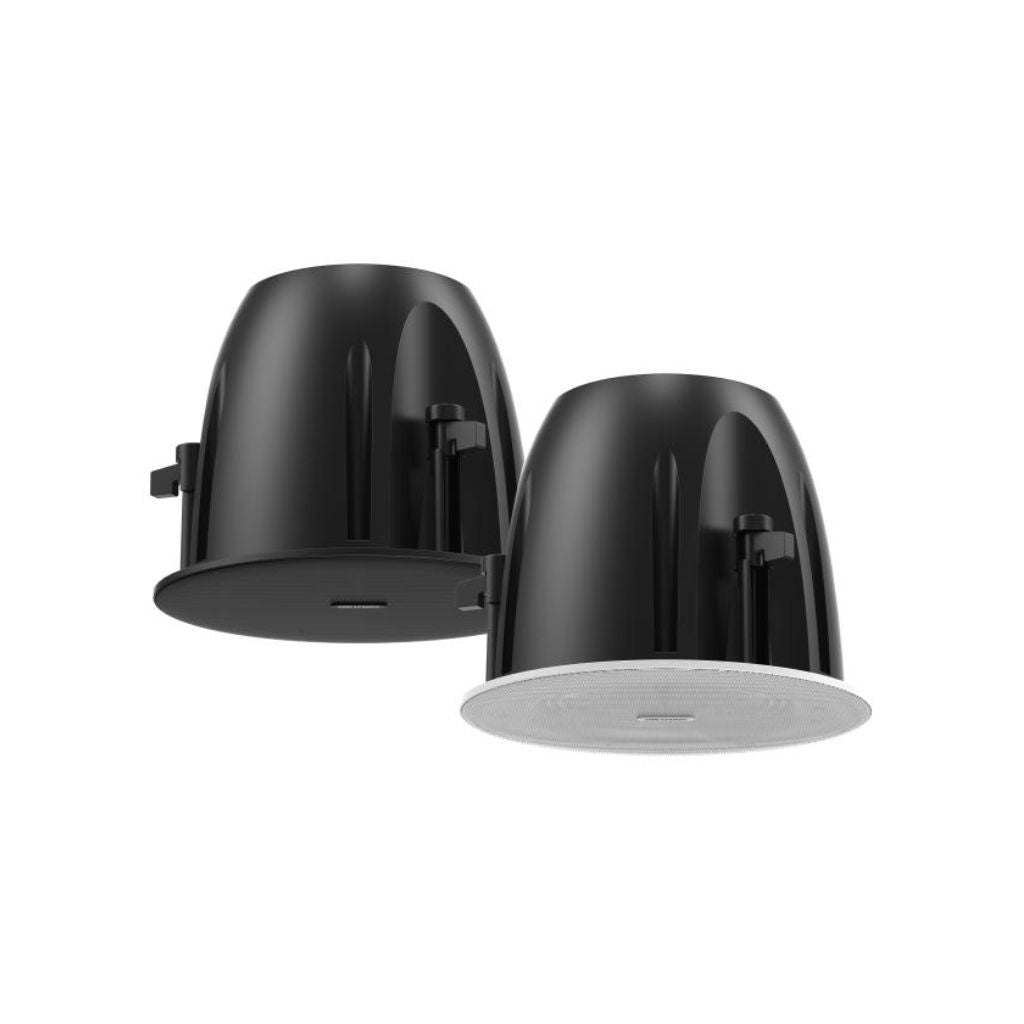

Hikvision DS-QAZ0630G1 Analog Frameless Ceiling Speaker

Speaker Specifications

• Model: Hikvision DS‑QAZ0630G1
• Type: Analog Frameless Ceiling Speaker

Audio

• Rated Power: 30 W
• Frequency Response: 80 Hz – 18 kHz
• Impedance: 8 Ω
• Sound Pressure Level (SPL): ~90 dB

Features

• Design: Frameless ceiling‑mounted speaker for discreet installation
• Application: Public address, background music, paging systems
• Compatibility: Works with Hikvision analog audio solutions

Physical

• Dimensions (Ø × D): ~230 × 75 mm
• Weight: ~1.2 kg
• Material: ABS housing with metal grille
• Color: White

Environmental

• Operating Temperature: −10 °C to +55 °C
• Indoor Use: Suitable for offices, retail, and commercial spaces

Package Contents

• DS‑QAZ0630G1 Ceiling Speaker × 1
• Mounting Accessories × 1 set
• Quick Installation Guide × 1
• Warranty Information × 1
