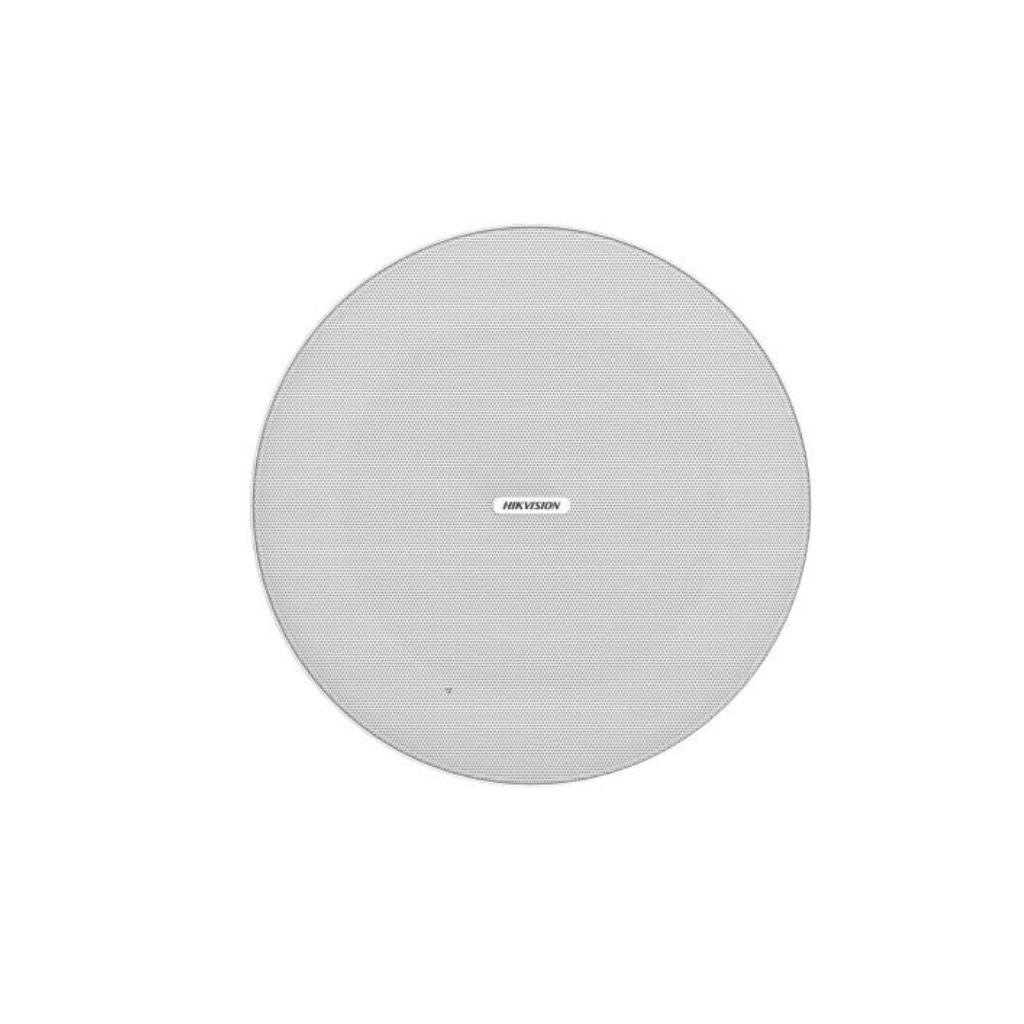

Hikvision DS-QAZ0610G1-S Frameless Ceiling Sub Speaker

Speaker Specifications

• Model: Hikvision DS‑QAZ0610G1‑S
• Type: Analog Frameless Ceiling Sub Speaker

Audio

• Rated Power: 10 W
• Frequency Response: 60 Hz – 300 Hz
• Impedance: 8 Ω
• Sound Pressure Level (SPL): ~88 dB

Features

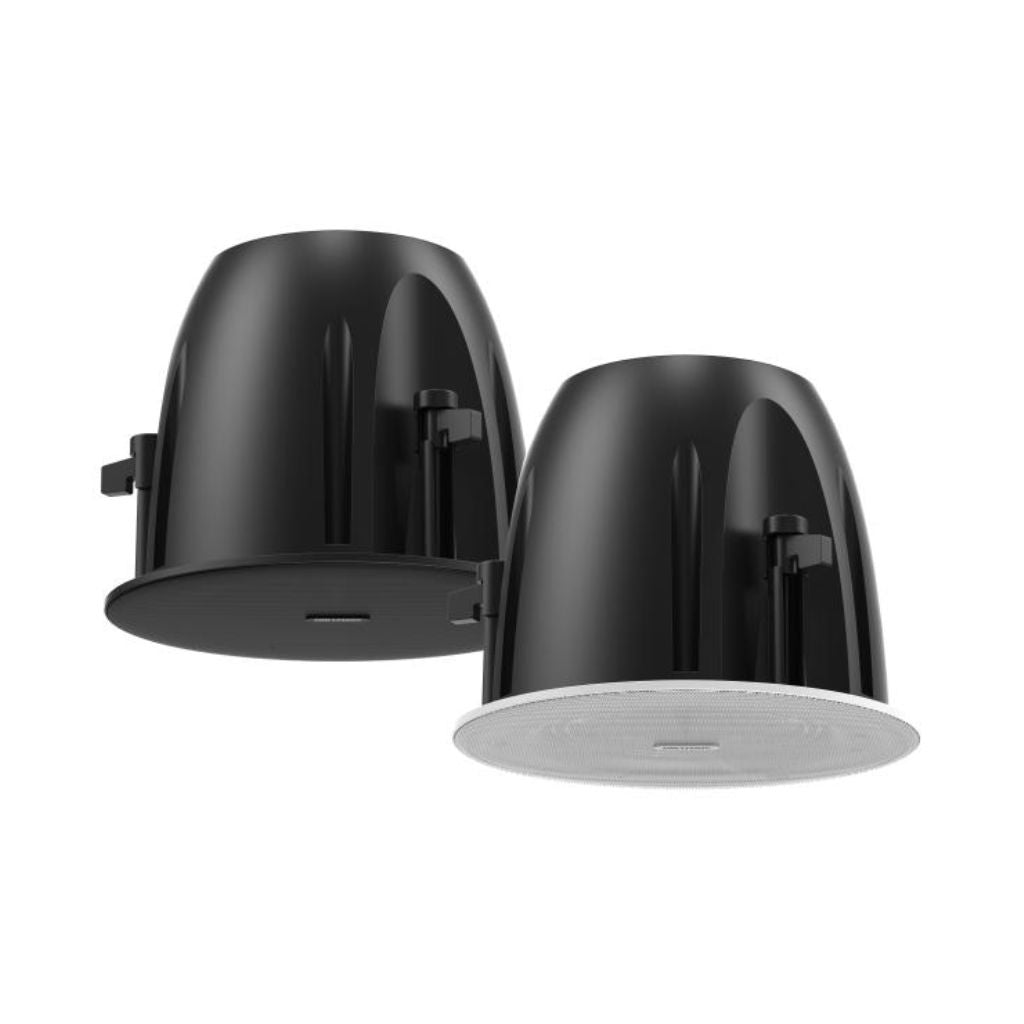

• Design: Frameless ceiling‑mounted sub speaker for discreet installation
• Application: Low‑frequency reinforcement in public address and background music systems
• Compatibility: Works with Hikvision analog audio solutions

Physical

• Dimensions (Ø × D): ~230 × 85 mm
• Weight: ~1.5 kg
• Material: ABS housing with metal grille
• Color: White

Environmental

• Operating Temperature: −10 °C to +55 °C
• Indoor Use: Suitable for offices, retail, and commercial spaces

Package Contents

• DS‑QAZ0610G1‑S Sub Speaker × 1
• Mounting Accessories × 1 set
• Quick Installation Guide × 1
• Warranty Information × 1
