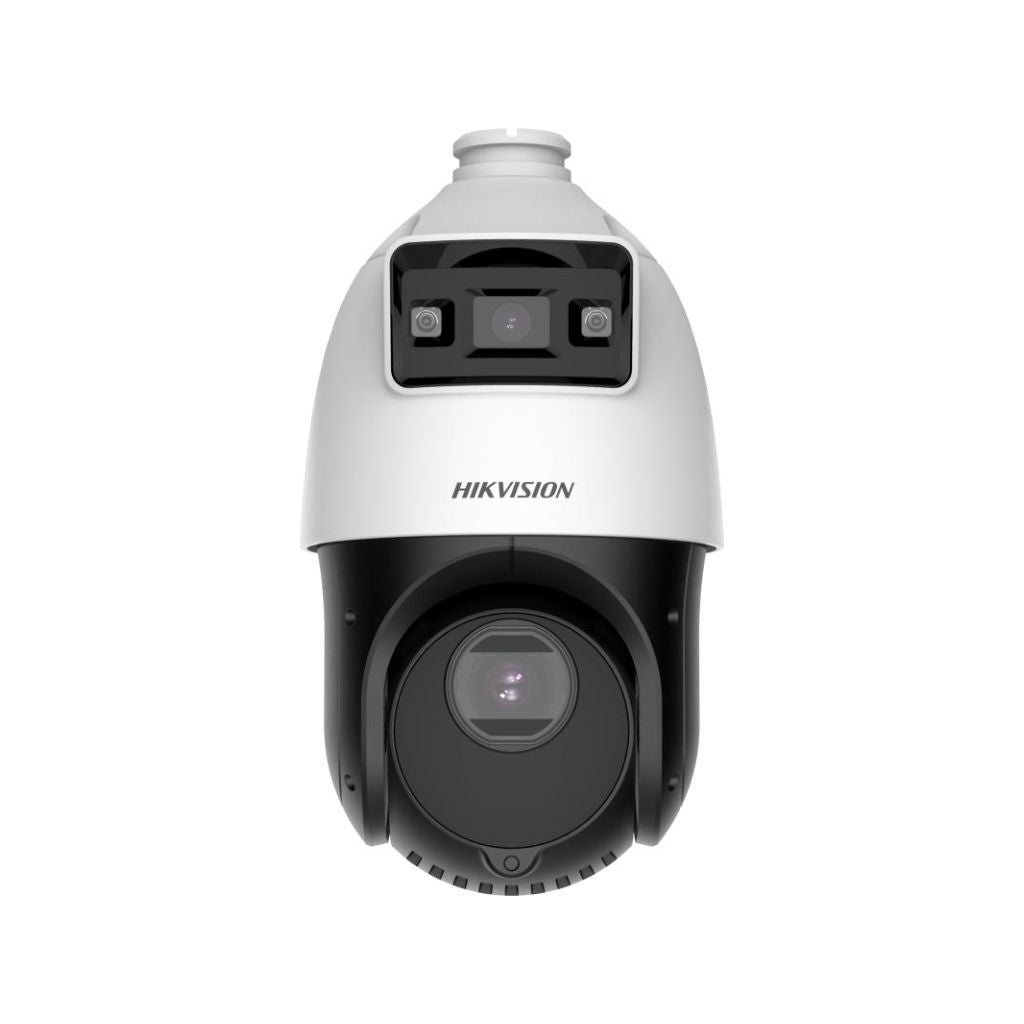

Hikvision DS-2SE4C425MWG-E/14 PTZ Camera

Camera Specifications

• Model: Hikvision DS‑2SE4C425MWG‑E/14
• Type: TandemVu PTZ Camera (Bullet + PTZ integration)
• Image Sensors:
  • Bullet channel: 4 MP (1/1.8″ CMOS)
  • PTZ channel: 4 MP (1/1.8″ CMOS)
• Lens (Bullet): Fixed 4 mm lens
• Lens (PTZ): 5.7–142.5 mm, 25× optical zoom
• Resolution: Up to 2688 × 1520 (4 MP)

Features

• TandemVu Technology: Combines panoramic bullet view with zoomable PTZ view
• Zoom: 25× optical zoom, 16× digital zoom
• Low‑Light Imaging: ColorVu full‑color technology + DarkFighter for ultra‑low light
• Smart Functions: Human/vehicle classification, face capture, perimeter protection, auto‑tracking
• Audio: Built‑in microphone and speaker (two‑way audio)
• Video Compression: H.265+/H.265/H.264+/H.264

Connectivity

• Network: RJ‑45 10/100 Mbps Ethernet
• Storage: MicroSD card slot (up to 256 GB)
• Alarm I/O: 2 in / 2 out
• Audio I/O: 1 in / 1 out

Physical

• Dimensions (Ø × H): ~Φ220 × 345 mm
• Weight: ~7.5 kg
• Material: Metal housing
• Mounting: Wall, pole, or ceiling mount options

Environmental

• Operating Temperature: −40 °C to +65 °C
• Protection: IP66 weatherproof, TVS 6000 V lightning protection

Package Contents

• DS‑2SE4C425MWG‑E/14 Camera × 1
• Mounting Accessories × 1
• Quick Installation Guide × 1
• Warranty Information × 1
