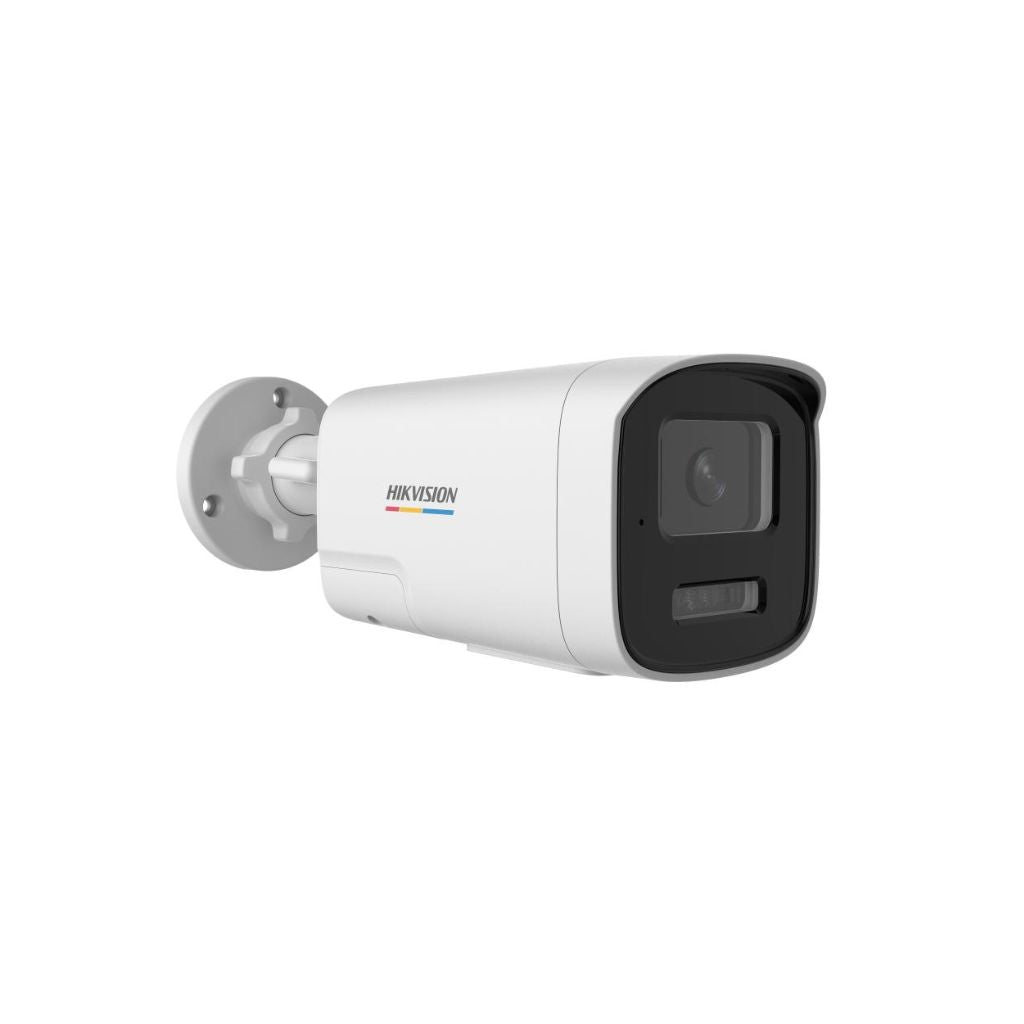

Hikvision DS-2CD1T47G3H-LIUF/SRB(2.8mm) 4 MP ColorVu 3.0 Fixed Bullet Network Camera

Camera Specifications

• Model: Hikvision DS‑2CD1T47G3H‑LIUF/SRB
• Type: ColorVu 3.0 Fixed Bullet Network Camera
• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Resolution: 4 MP (2688 × 1520)
• Frame Rate: Up to 30 fps @ 4 MP
• Lens: 2.8 mm fixed focal lens
• Field of View: H ~103°, V ~58°, D ~121°
• Lens Mount: M12

Illuminator

• Supplement Light Type: Smart Hybrid (IR + White Light)
• IR Range: Up to 40 m
• White Light Range: Up to 40 m
• Day/Night Mode: 24/7 full‑color imaging

Features

• ColorVu 3.0 Technology: Enhanced low‑light full‑color performance
• Motion Detection 2.0: Human/vehicle classification
• Min Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Wide Dynamic Range (WDR): 130 dB True WDR
• Noise Reduction: 3D DNR
• Image Enhancements: BLC, HLC, Smart Illumination, Brightness, Contrast, Mirror
• Audio: Built‑in microphone (LIUF variant)
• Event Detection: Motion detection, video tampering, intrusion, line crossing

Interface

• Video Output: IP network stream (H.265+/H.265/H.264+/H.264)
• Communication: ONVIF, ISAPI, Hikvision protocol
• Audio Interface: 1‑ch input, 1‑ch output

General

• Power Supply: 12 VDC ± 25% or PoE (802.3af), max 8 W
• Operating Conditions: –30 °C to 60 °C, ≤ 95% humidity
• Material: Metal housing
• Protection: IP67 weatherproof
• Colour: Black (SRB variant)
• Dimensions: ~70 × 70 × 155 mm
• Weight: ~480 g

Package Contents

• Camera Unit × 1
• Mounting Kit (screws, anchors)
• User Manual × 1
• Warranty Information × 1
