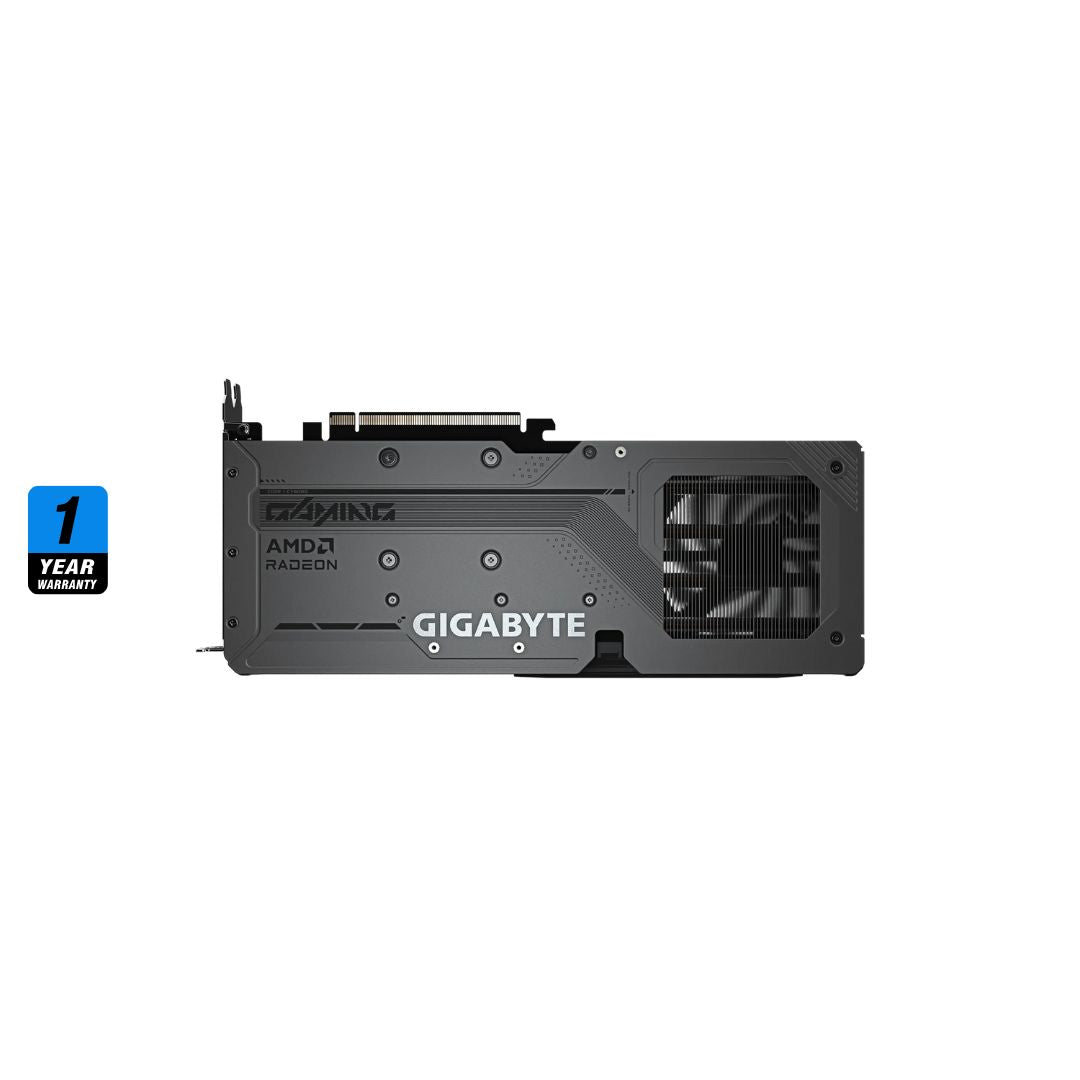

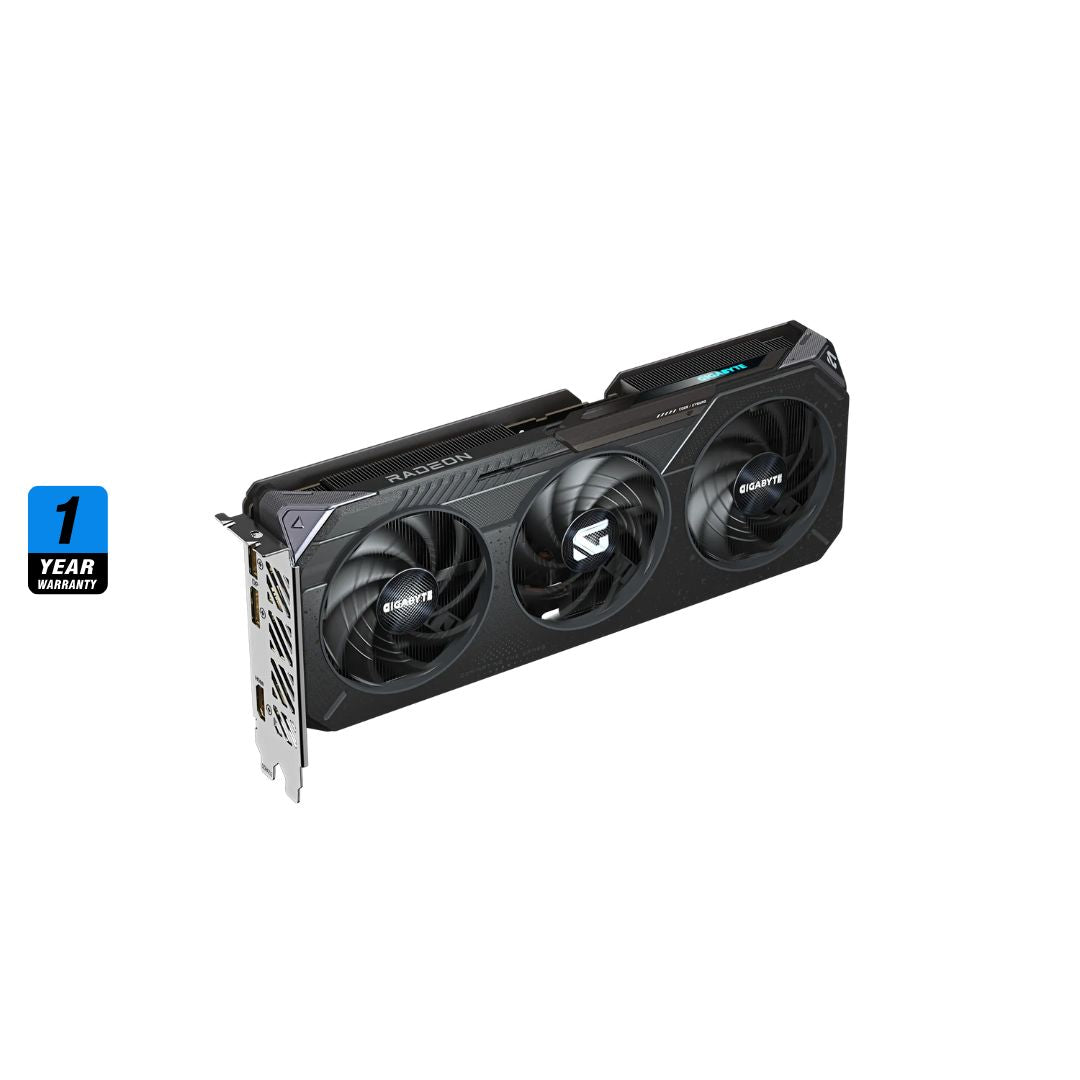

Gigabyte Radeon™ RX 9060 XT GAMING OC 16GB
Graphics Card Specification
• Model: Gigabyte Radeon™ RX 9060 XT GAMING OC 16G
• GPU Name: Navi 44 XT
• Architecture: AMD RDNA 4.0
• Process Technology: TSMC 4 nm (N4P FinFET)
• Transistor Count: ~29.7 billion
• Die Size: 199 mm²
• Stream Processors: 2048
• TMUs: 128
• ROPs: 64
• Compute Units: 32
• Ray Accelerators: 32
• AI Accelerators: 64
• Base Clock: 1700 MHz
• Game Clock: 2530 MHz (2780 MHz OC)
• Boost Clock: 3130 MHz (3320 MHz OC)
• Memory Size: 16 GB GDDR6
• Memory Bus: 128‑bit
• Effective Memory Speed: 20.1 Gbps
• Memory Bandwidth: ~402 GB/s
• Bus Interface: PCI Express 5.0 ×16
• DirectX Support: 12 Ultimate
• OpenGL Support: 4.6
• Max Resolution: 7680 × 4320 (8K)

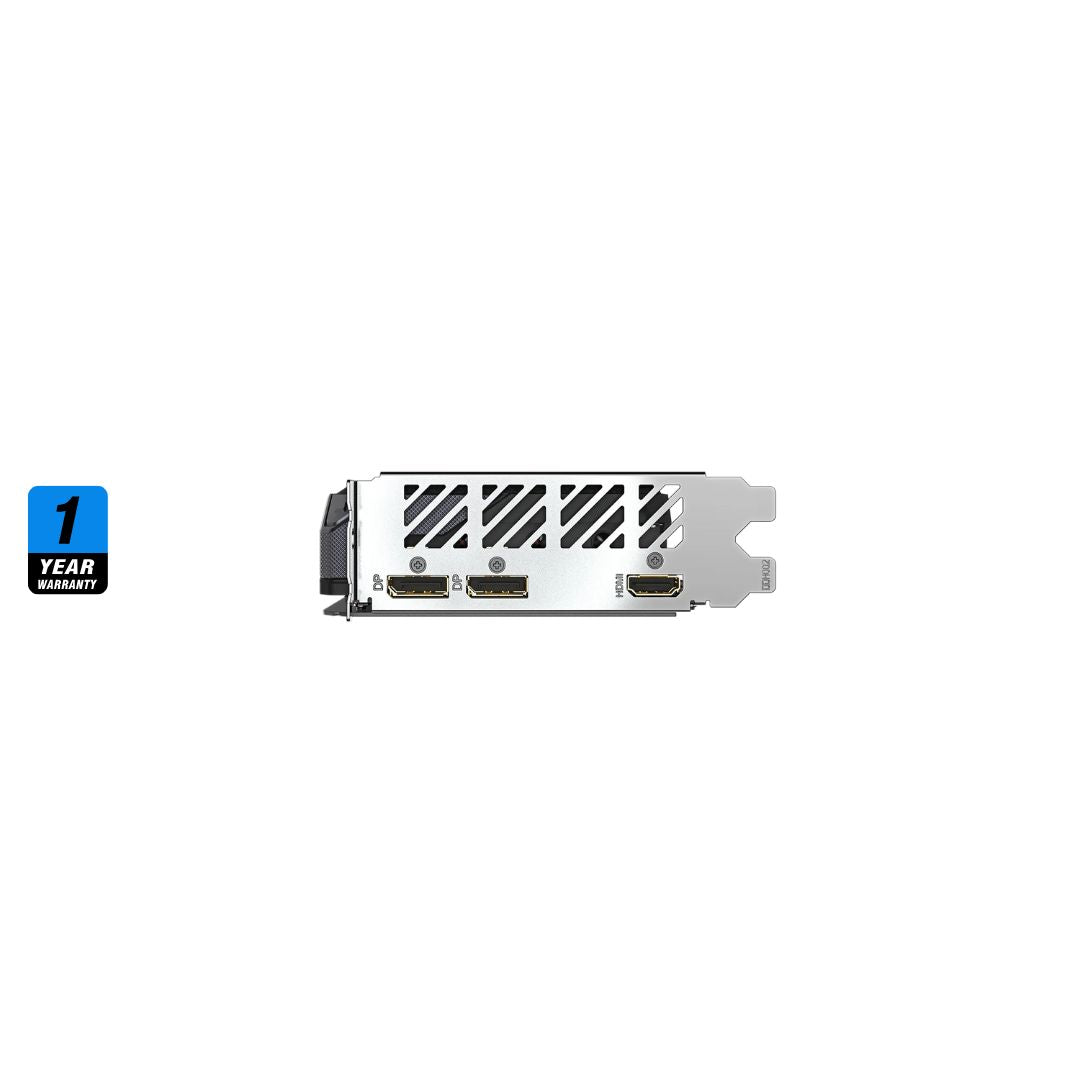

• Outputs:
– 2 × HDMI 2.1
– 2 × DisplayPort 2.1
• Multi‑View: Up to 4 displays
• Cooling System: WINDFORCE triple‑fan cooling with alternate spinning and screen cooling
• Features:
– Ray Tracing support
– AMD FidelityFX Super Resolution (FSR)
– RGB Fusion lighting
– Metal backplate for durability
• Recommended PSU: 650 W
• Power Connectors: 1 × 8‑pin
• Card Dimensions (L×W×H): ~282 × 115 × 50 mm
• Release Date: June 4, 2025
