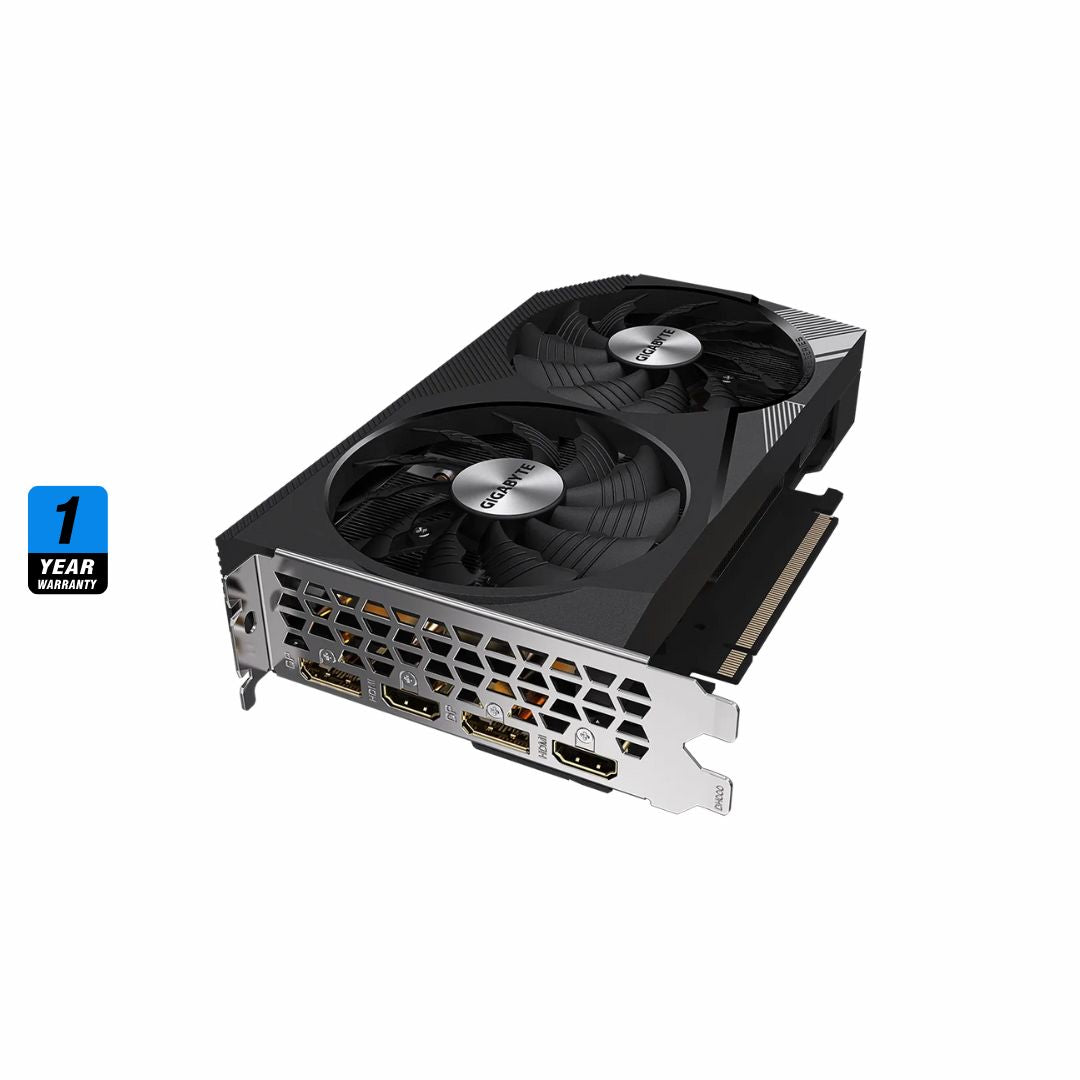

Gigabyte GeForce RTX™ 3060 WINDFORCE OC 12GB

Graphics Card Specification

• Model: Gigabyte GeForce RTX™ 3060 WINDFORCE OC 12G
• GPU Architecture: NVIDIA Ampere
• Core Clock: 1807 MHz (OC Mode)
• CUDA Cores: 3584
• Memory Size: 12 GB GDDR6
• Memory Interface: 192‑bit
• Memory Speed: 15 Gbps
• Bus Interface: PCI Express 4.0 ×16

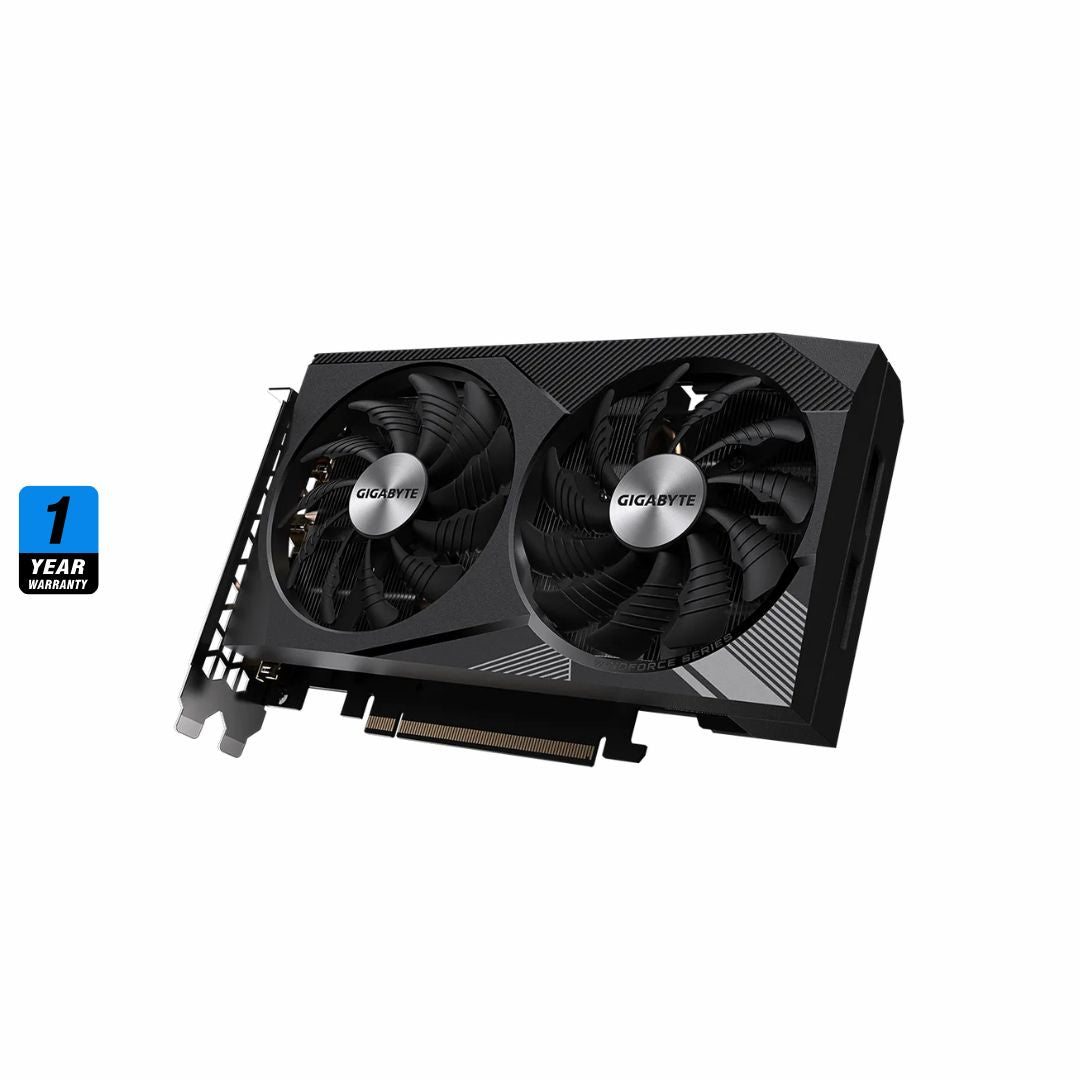

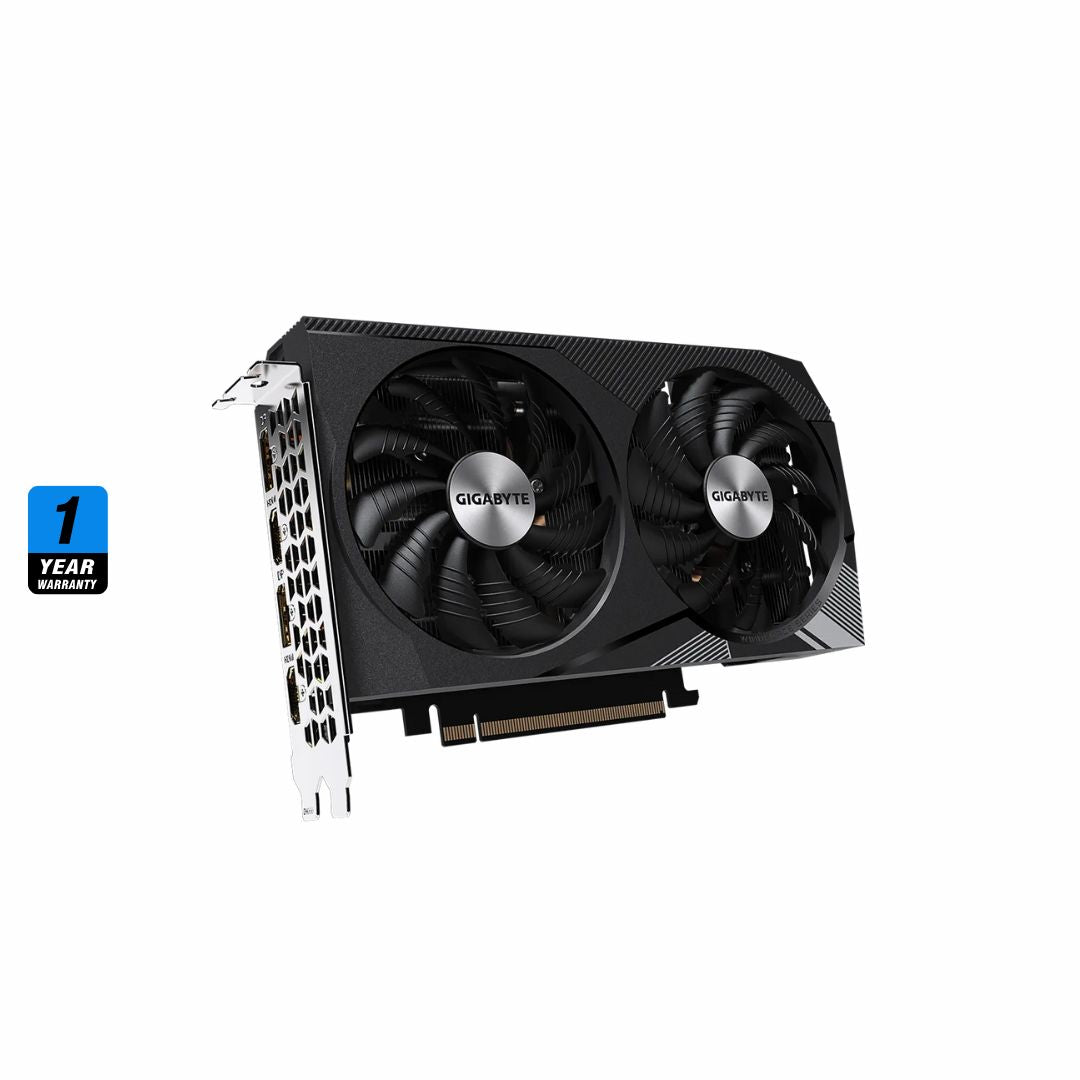

• Cooling System: WINDFORCE 2X (dual 90 mm fans, alternate spinning, 3D active fan, screen cooling)
• DirectX Support: 12 Ultimate
• OpenGL Support: 4.6
• Maximum Resolution: 7680 × 4320 (Digital Max Resolution)
• Multi‑View: Up to 4 displays

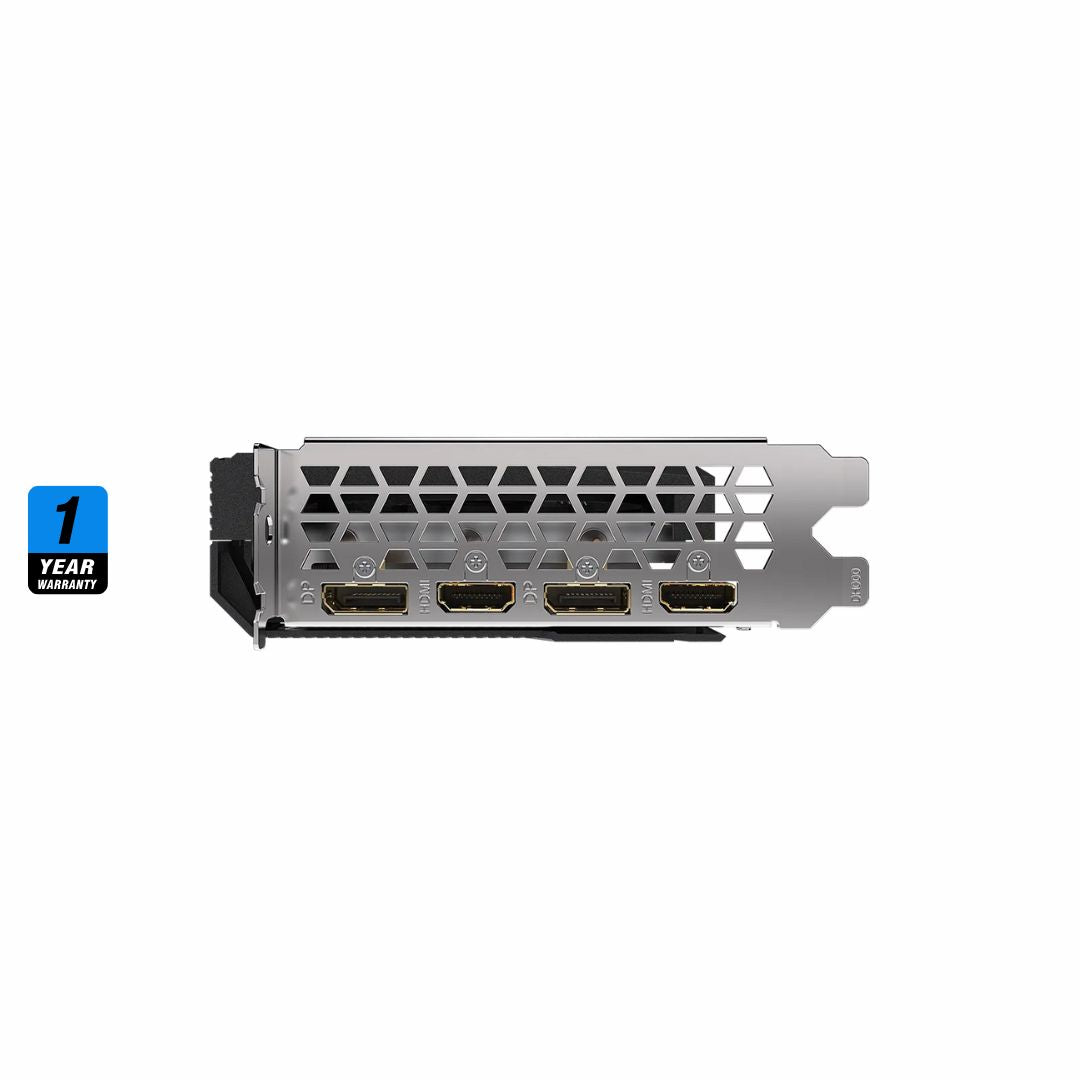

• Output Ports:
– 2 × HDMI 2.1
– 2 × DisplayPort 1.4a
• Recommended PSU: 550 W
• Power Connectors: 1 × 8‑pin
• Card Dimensions (L×W×H): 198 × 121 × 39 mm
• Features:
– Ray Tracing & DLSS support
– NVIDIA G‑SYNC compatibility
– RGB Fusion 2.0 lighting

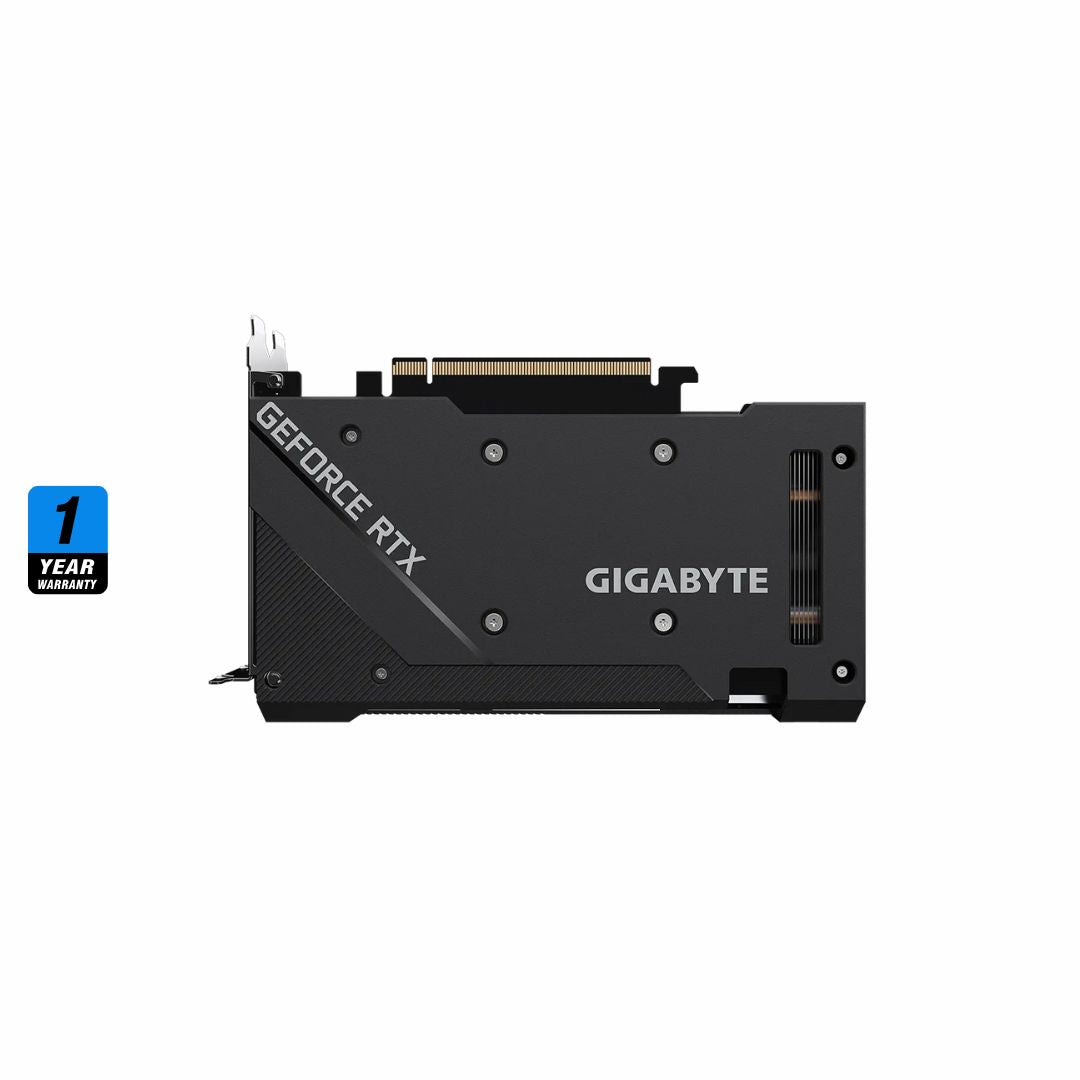

– Protection backplate for durability
