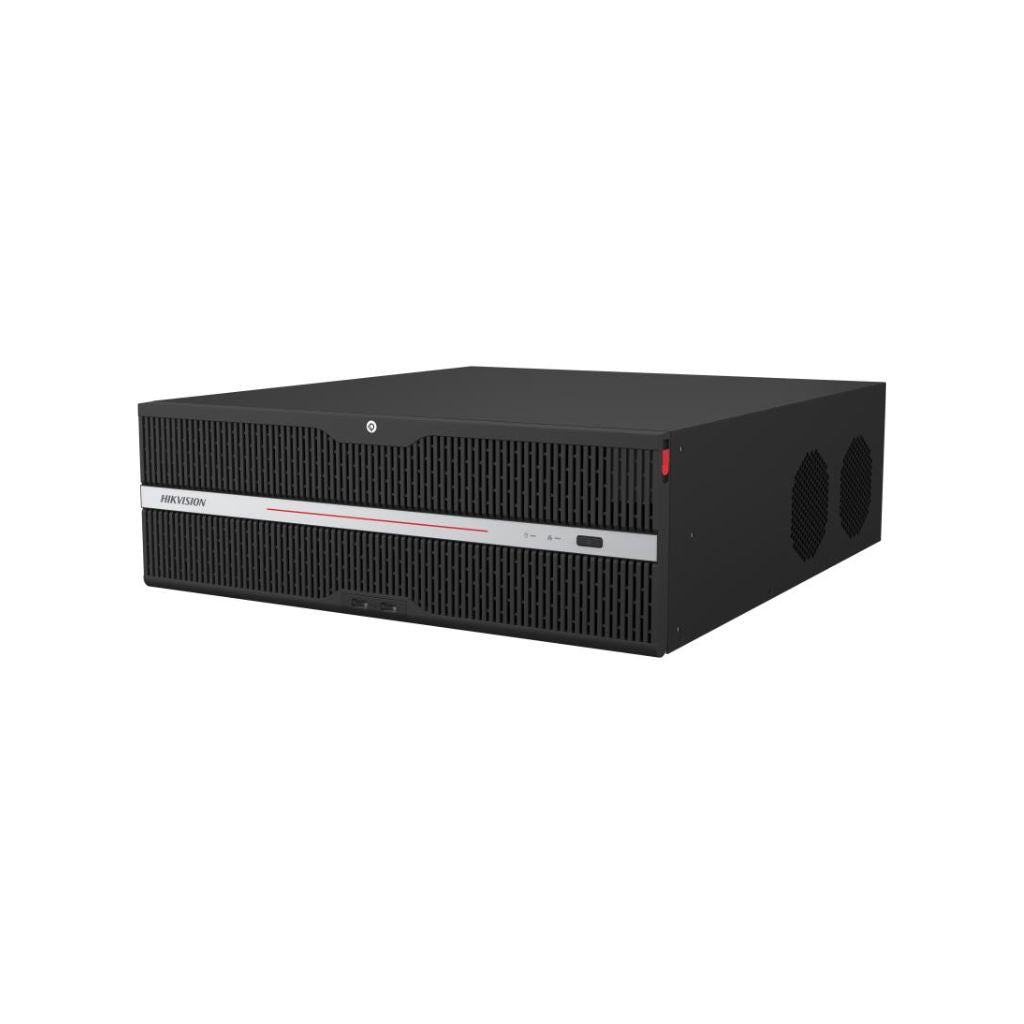

Hikvision iDS-9664NXI-P16 DeepinMind Pro NVR

NVR Specifications

• Model: Hikvision iDS‑9664NXI‑P16
• Type: DeepinMind Pro NVR, 64‑channel, 16 PoE interfaces
• Video/Audio Input:
  • 64 × IP camera inputs
  • Up to 12 MP resolution recording
  • 16 × PoE interfaces (802.3af/at compliant)
• Decoding Capacity:
  • Up to 4‑ch @ 12 MP
  • Up to 8‑ch @ 8 MP
  • Up to 16‑ch @ 4 MP
  • Up to 32‑ch @ 1080p

Features

• DeepinMind AI Technology: Advanced human/vehicle classification, face recognition, behavior analysis
• AcuSense Integration: Reduces false alarms with intelligent detection
• Video Compression: H.265+/H.265/H.264+/H.264
• Smart Functions: Motion detection, perimeter protection, face capture, people counting
• Display Resolution: HDMI/VGA output up to 4K (3840 × 2160)
• Storage: 16 × SATA interfaces, each up to 10 TB capacity
• Audio: 2‑ch two‑way audio

Connectivity

• Network Interface: 2 × RJ‑45 10/100/1000 Mbps Ethernet
• USB Ports: 2 × USB 2.0, 1 × USB 3.0
• Alarm I/O: 16 in / 8 out

Physical

• Dimensions (W × D × H): 445 × 470 × 90 mm
• Weight: ~10 kg (without HDD)
• Housing: Metal, 2U rackmount design

Environmental

• Operating Temperature: −10 °C to +55 °C
• Power Supply: 100–240 VAC, 50/60 Hz
• Consumption: ≤ 60 W (without HDD and PoE)

Package Contents

• iDS‑9664NXI‑P16 NVR × 1
• Power Cord × 1
• Mouse × 1
• Rackmount Kit × 1
• Quick Installation Guide × 1
• Warranty Information × 1
