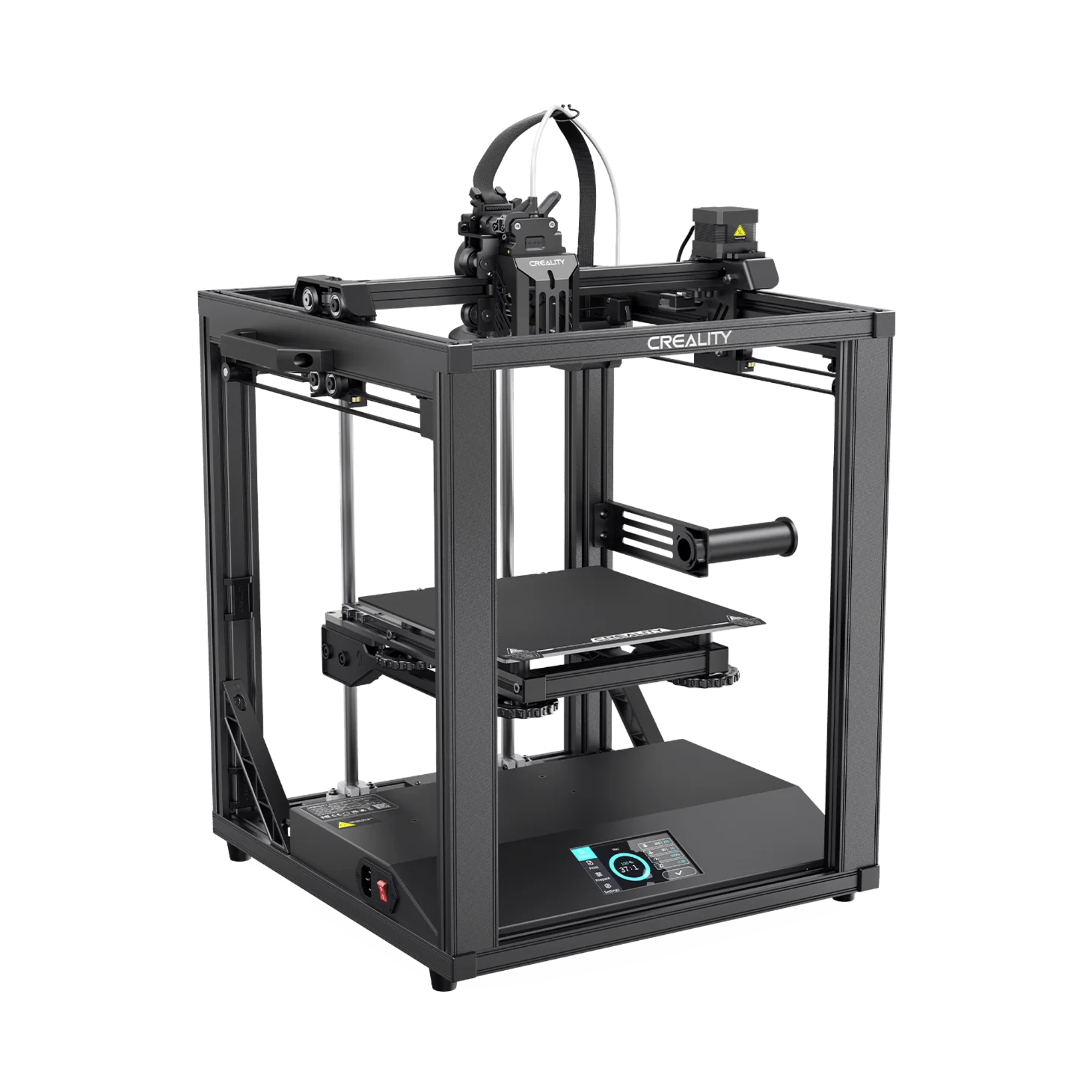

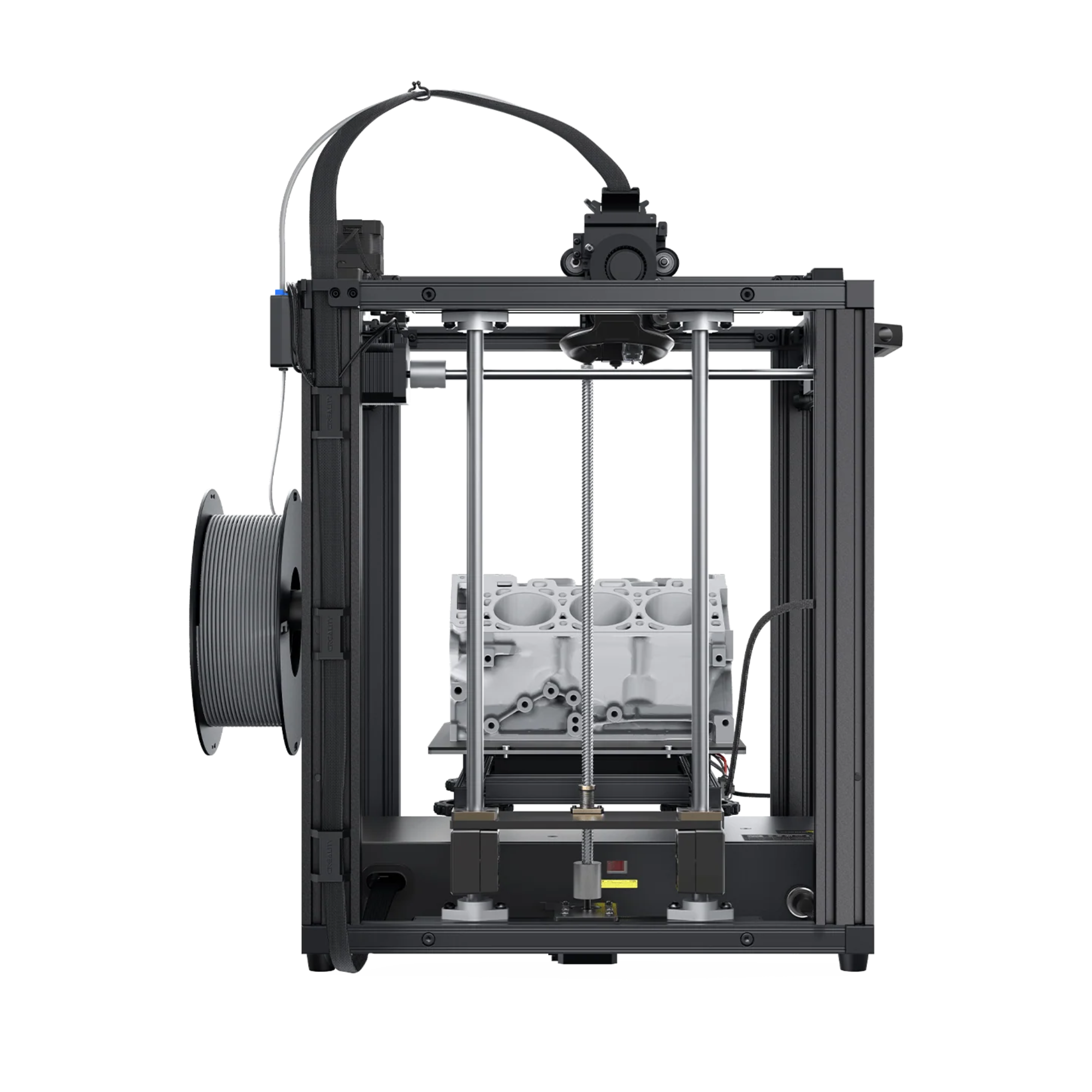

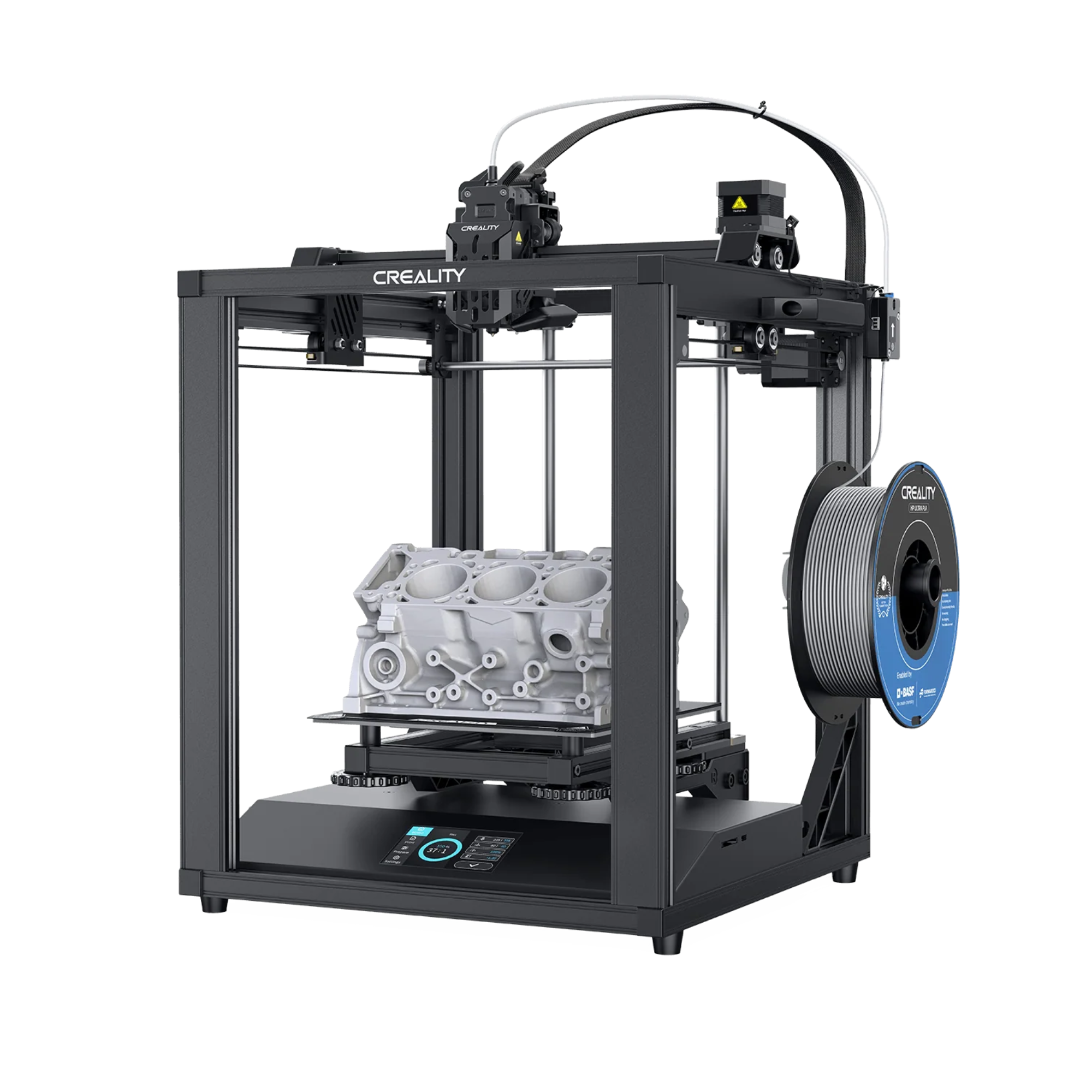

Creality Ender-5 S1 3D Printer

Structure & Motion Architecture

Frame Type: Classic stable Cube-Frame design with independent Z-axis dual stabilization
Build Volume: 220 x 220 x 280 mm
Printer Dimensions: 425 x 448 x 495 mm
Net Weight: 12.1 kg
Kinematics System: Specialized high-speed Cartesian system where the print head moves in X/Y axes while the bed drops in Z-axis

High-Speed Printing Performance

Maximum Printing Speed: ≤ 250 mm/s
Typical Acceleration: Up to 2,000 mm/s²
Layer Height Range: 0.05 - 0.35 mm
Printing Precision: ±0.1 mm
Cooling Engine: "Ursa Major" specialized cooling system with a large 5015 fan and custom air ducts for instant layer solidification

Extruder & High-Temperature Thermal Setup

Extruder Type: "Sprite" All-Metal Dual-Gear Direct Drive Extruder (1:3.5 reduction ratio for high-torque extrusion force)
Hotend Architecture: All-Metal high-flow hotend with a large melting chamber and heating block
Maximum Nozzle Temperature: ≤ 300 °C (Enables advanced filament printing)
Maximum Heatbed Temperature: ≤ 110 °C
Build Surface: Flexible PC (Polycarbonate) Spring Steel Sheet (Offers strong grip and easy snap-off model removal)

Smart Automation & System Integration

Bed Leveling System: CR Touch 16-point automatic bed leveling matrix with auxiliary manual knobs
Display Interface: 4.3-inch responsive color touchscreen with intuitive UI
Recovery Sensors: Filament run-out sensor and power-loss resume printing function
Connectivity Options: SD Card, USB Type-C

Filament Compatibility

Filament Diameter: 1.75 mm
Supported Materials: Standard PLA, PETG, TPU (Flexible), ABS, ASA, PC, and high-temperature technical filaments
