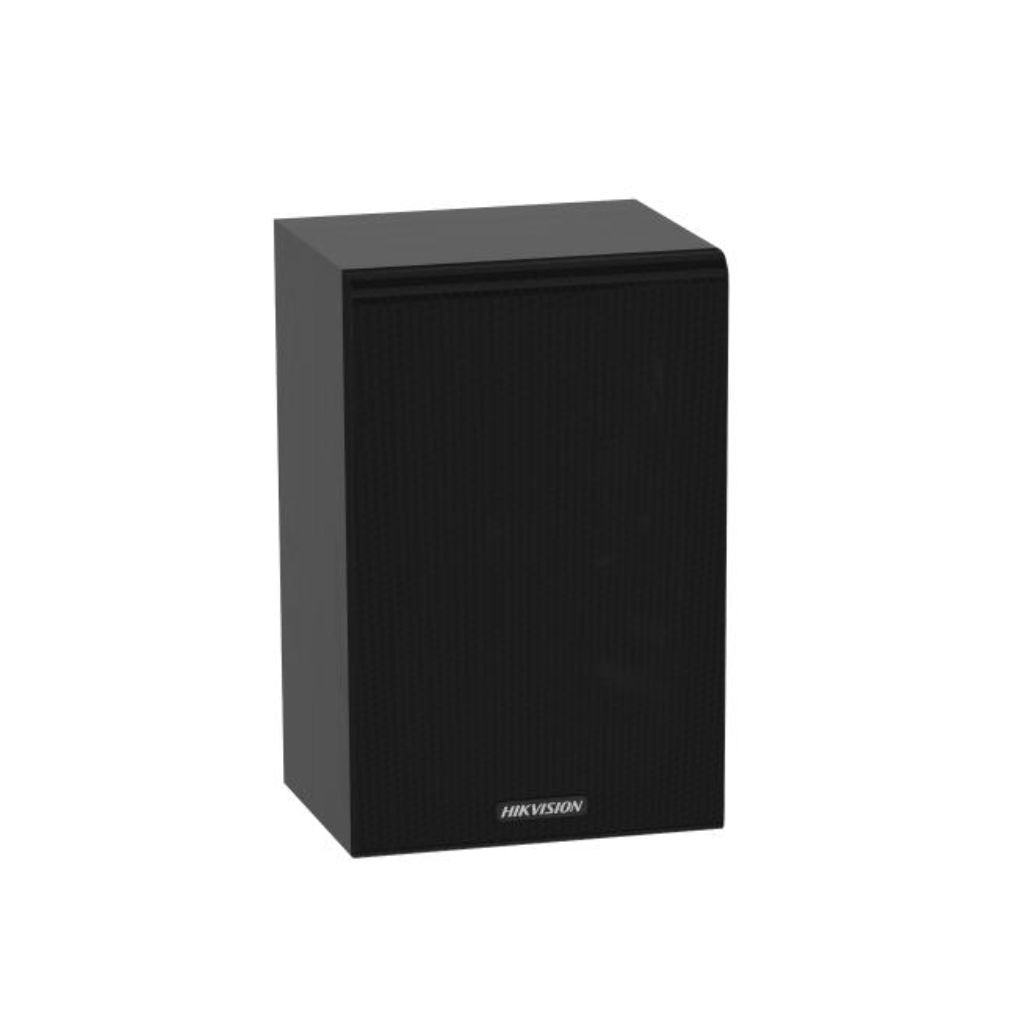

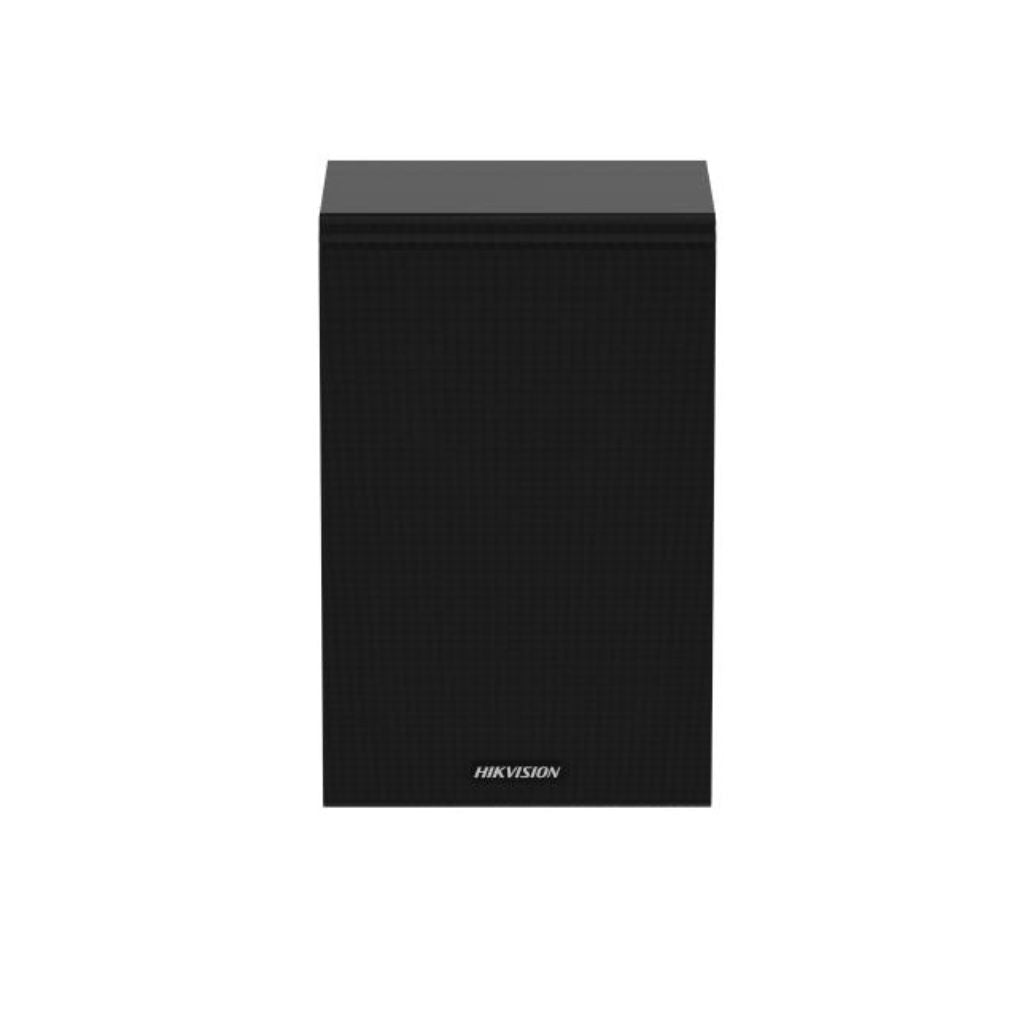

Hikvision DS-QAZ0110G1-S Cabinet Secondary Speaker

Speaker Specifications

• Model: Hikvision DS‑QAZ0110G1‑S
• Type: Cabinet Secondary Speaker (Analog)

Audio

• Rated Power: 110 W
• Frequency Response: 80 Hz – 16 kHz
• Impedance: 8 Ω
• Sound Pressure Level (SPL): ~94 dB

Features

• Design: Cabinet‑style secondary speaker for extended audio coverage
• Application: Public address, paging, and background music systems
• Compatibility: Designed to pair with Hikvision analog amplifiers and audio kits

Physical

• Dimensions (W × H × D): ~280 × 480 × 240 mm
• Weight: ~5.5 kg
• Material: Wooden cabinet with metal grille
• Color: Black

Environmental

• Operating Temperature: −10 °C to +55 °C
• Indoor Use: Suitable for offices, schools, halls, and commercial spaces

Package Contents

• DS‑QAZ0110G1‑S Cabinet Secondary Speaker × 1
• Mounting Accessories × 1 set
• Quick Installation Guide × 1
• Warranty Information × 1
