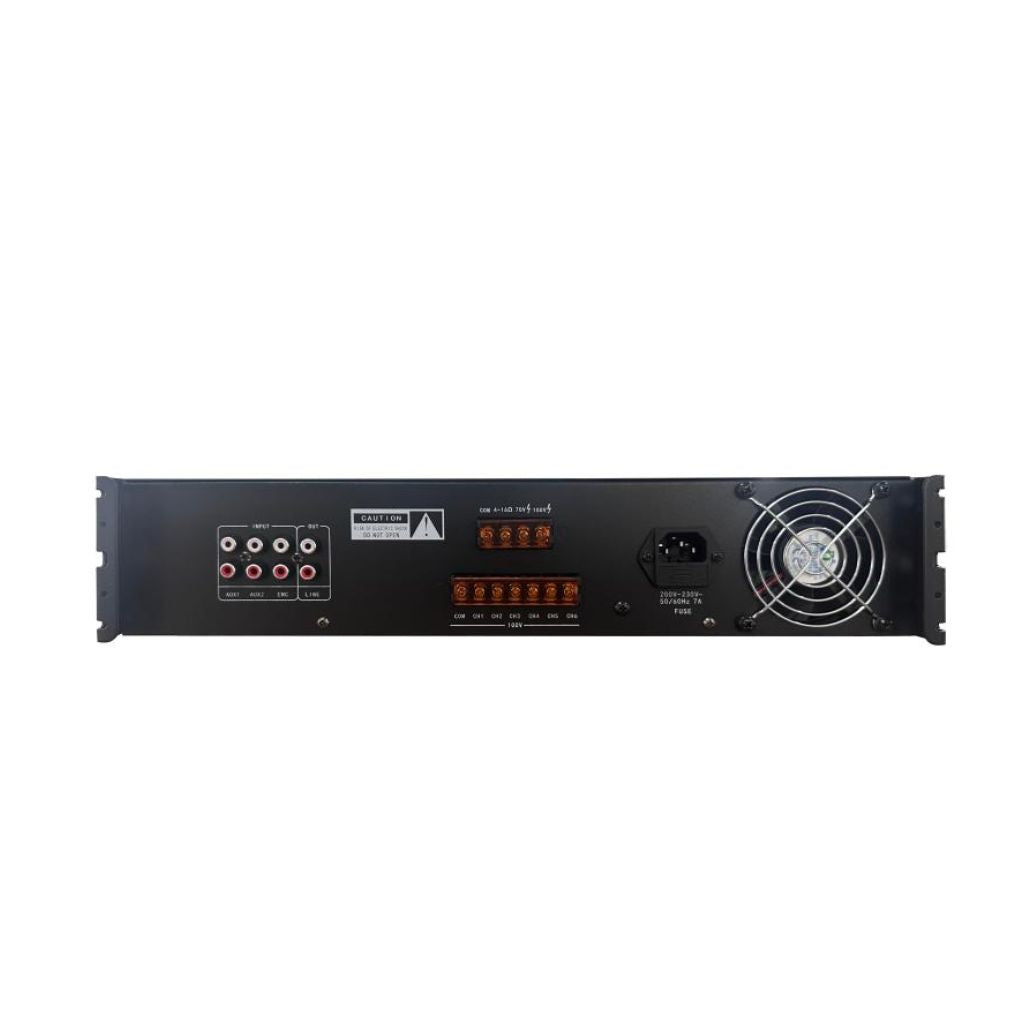

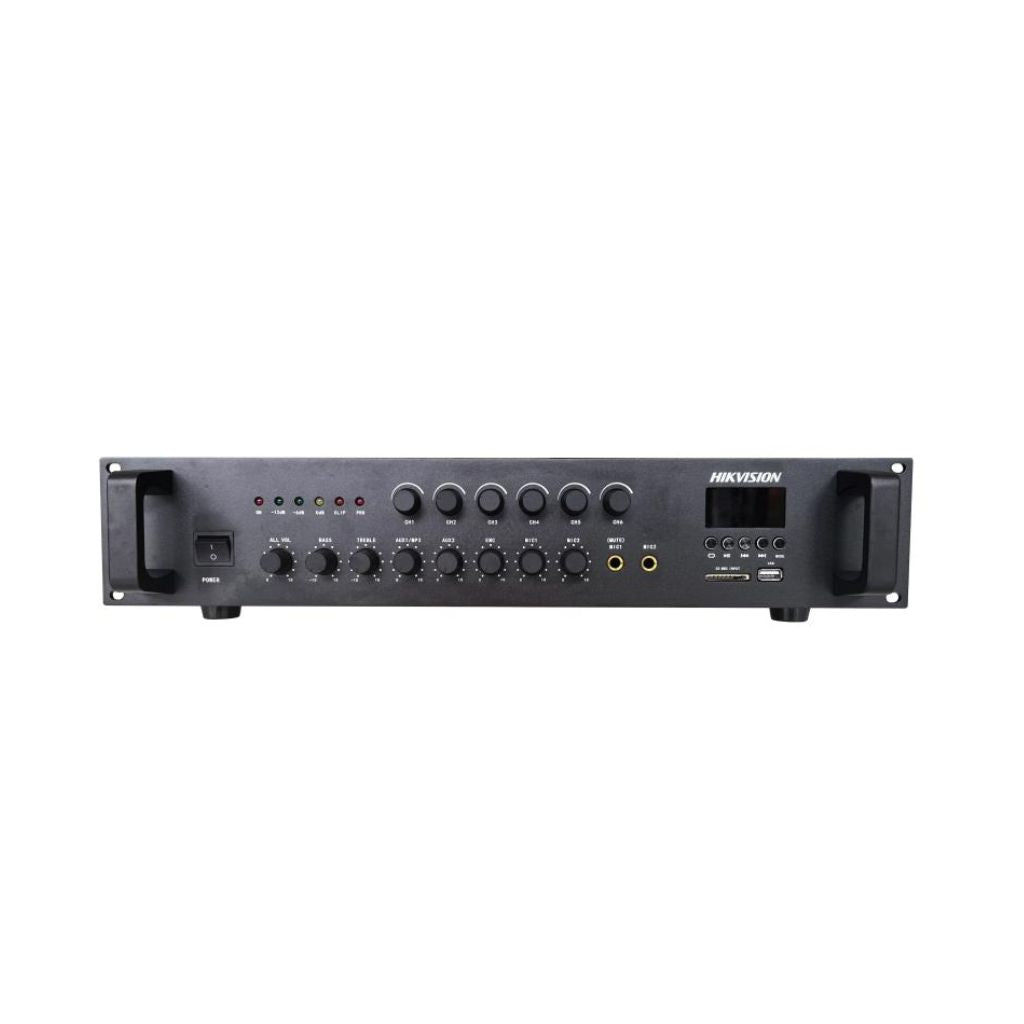

Hikvision DS-QAE0A240G1-VB6 240W 6-Zone Analog Amplifier

Amplifier Specifications

• Model: Hikvision DS‑QAE0A240G1‑VB6
• Type: 240 W 6‑Zone Analog Amplifier

Audio

• Rated Power Output: 240 W
• Zones: 6 independent zones with volume control
• Frequency Response: 80 Hz – 16 kHz
• Impedance: 8 Ω
• Signal‑to‑Noise Ratio (SNR): ≥ 90 dB

Features

• Multi‑Zone Control: Supports paging and music distribution across 6 zones
• Inputs: Multiple line inputs, microphone input with priority function
• Outputs: Speaker outputs for 6 zones, line output for external devices
• Controls: Individual zone volume adjustment, master volume, bass/treble control
• Protection: Overload, short‑circuit, and thermal protection

Connectivity

• Audio Inputs: MIC × 2, AUX × 2, Line × 2
• Audio Outputs: 6 zone speaker outputs, 1 line output
• Interface: Screw terminal block for speaker connections

Physical

• Dimensions (W × D × H): ~430 × 350 × 90 mm
• Weight: ~8 kg
• Material: Metal chassis with front panel controls
• Color: Black

Environmental

• Operating Temperature: −10 °C to +55 °C
• Indoor Use: Suitable for offices, schools, retail, and commercial spaces

Package Contents

• DS‑QAE0A240G1‑VB6 Amplifier × 1
• Power Cord × 1
• Connection Accessories × 1 set
• Quick Installation Guide × 1
• Warranty Information × 1
