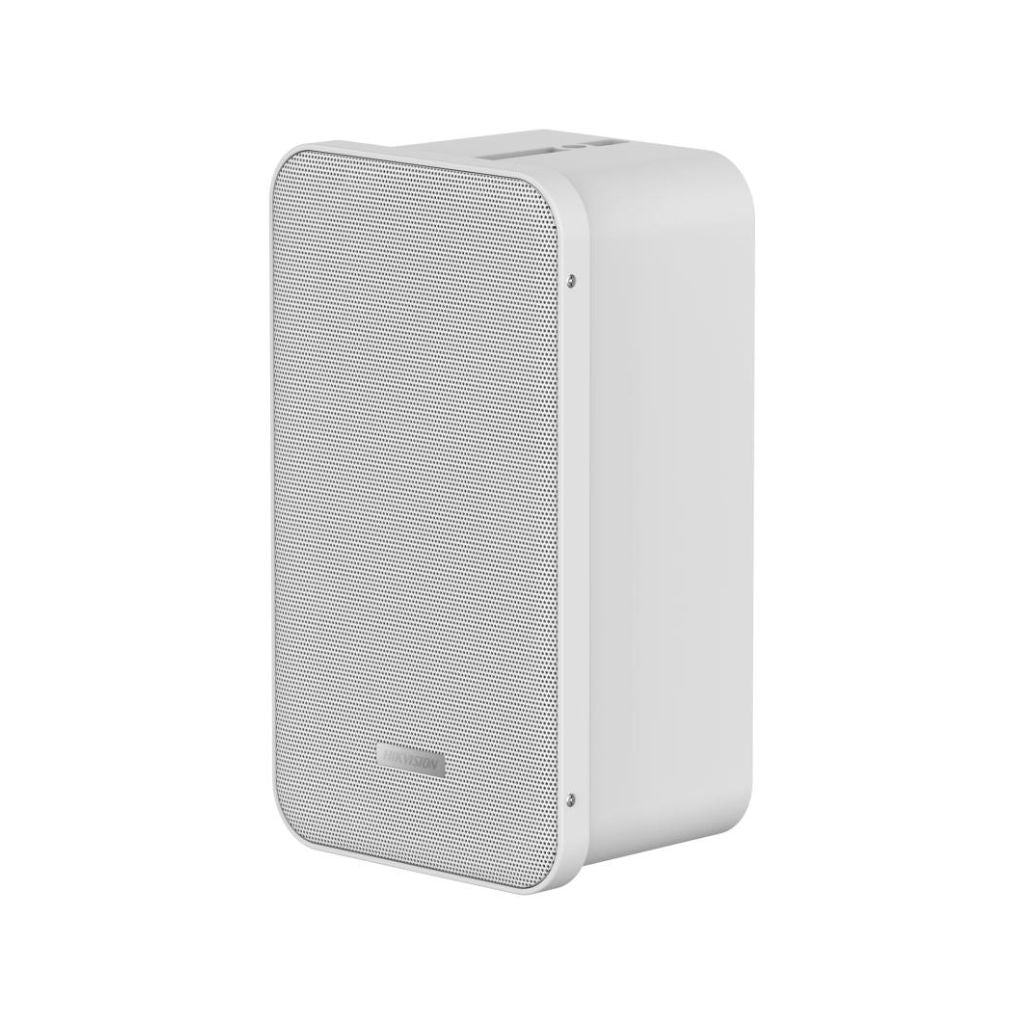

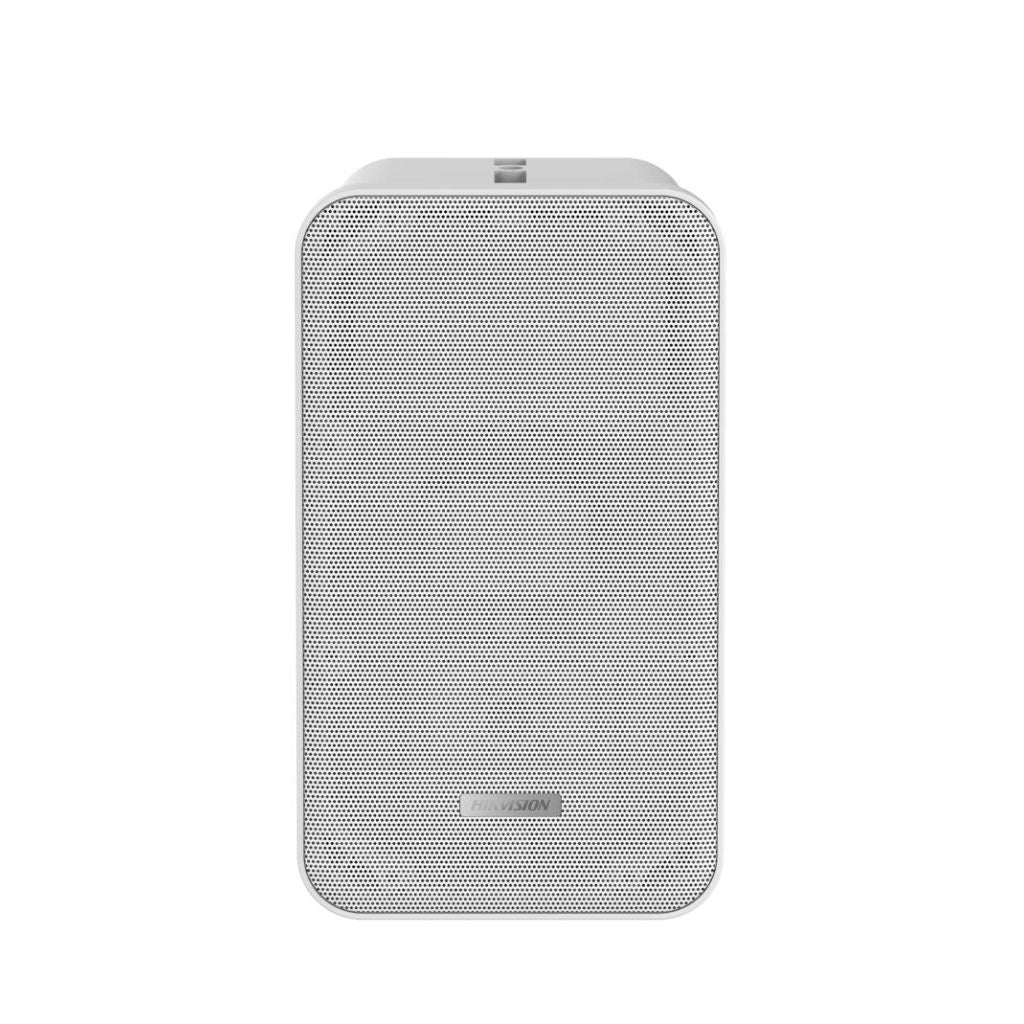

Hikvision DS-QAE0420G1-V Analog Column Speaker

Speaker Specifications

• Model: Hikvision DS‑QAE0420G1‑V
• Type: Analog Column Speaker

Audio

• Rated Power: 20 W
• Frequency Response: 100 Hz – 15 kHz
• Impedance: 8 Ω
• Sound Pressure Level (SPL): ~92 dB

Features

• Design: Vertical column speaker for wide sound dispersion
• Application: Public address, background music, paging systems
• Compatibility: Works with Hikvision analog audio solutions

Physical

• Dimensions (W × H × D): ~120 × 400 × 100 mm
• Weight: ~2 kg
• Material: ABS housing with metal grille
• Color: White

Environmental

• Operating Temperature: −10 °C to +55 °C
• Indoor Use: Suitable for offices, schools, retail, and commercial spaces

Package Contents

• DS‑QAE0420G1‑V Column Speaker × 1
• Mounting Accessories × 1 set
• Quick Installation Guide × 1
• Warranty Information × 1
