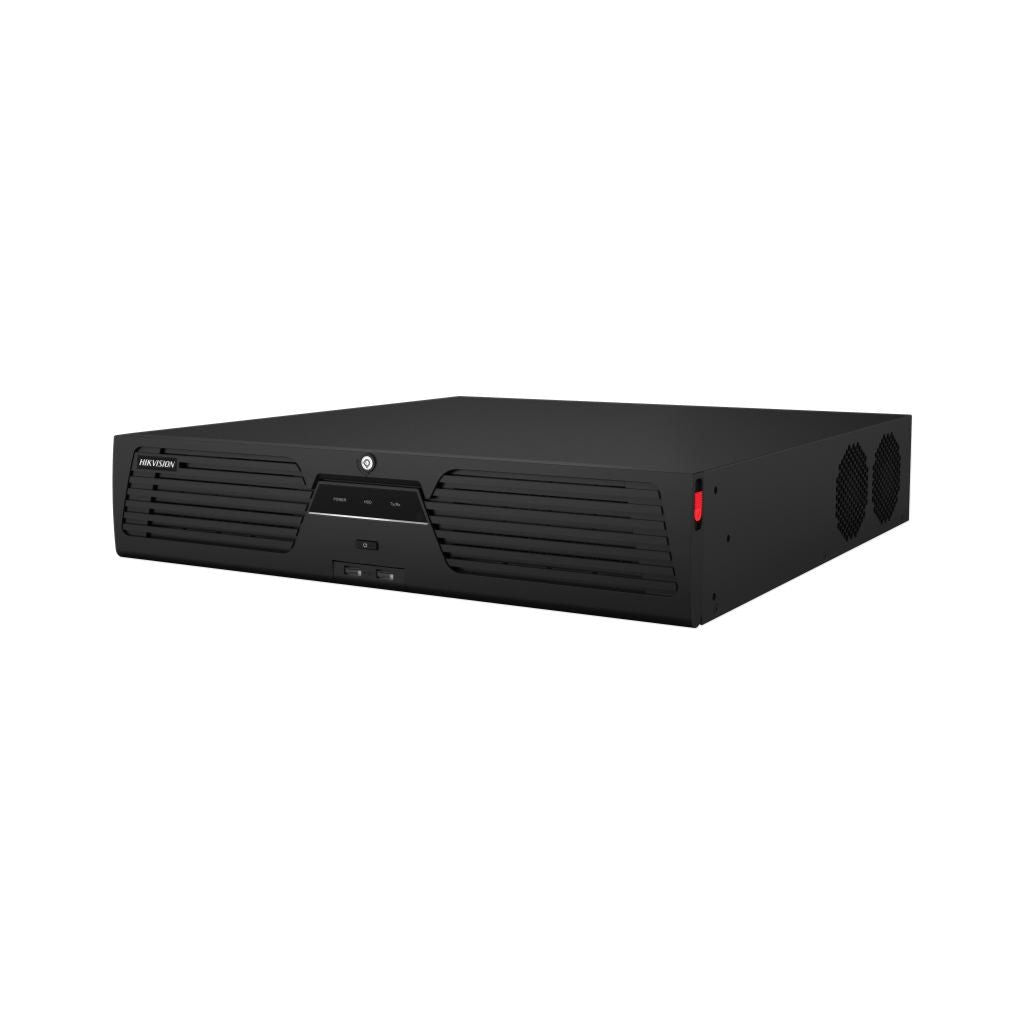

Hikvision DS-9632NI-M8 32-ch 2U 8K NVR

NVR Specifications

• Model: Hikvision DS‑9632NI‑M8
• Type: 32‑channel 2U 8K NVR
• Video/Audio Input:
  • 32 × IP camera inputs
  • Up to 32 MP resolution recording
• Decoding Capacity:
  • Up to 2‑ch @ 32 MP
  • Up to 4‑ch @ 24 MP
  • Up to 8‑ch @ 12 MP
  • Up to 16‑ch @ 8 MP
  • Up to 32‑ch @ 1080p

Features

• 8K Ultra‑HD Support: HDMI output up to 8K resolution
• Video Compression: H.265+/H.265/H.264+/H.264
• Smart Functions: Motion detection, perimeter protection, face capture, people counting
• Display Resolution: Multiple HDMI/VGA outputs, up to 7680 × 4320
• Storage: 8 × SATA interfaces, each up to 10 TB capacity
• Audio: 2‑ch two‑way audio

Connectivity

• Network Interface: 2 × RJ‑45 10/100/1000 Mbps Ethernet
• USB Ports: 2 × USB 2.0, 1 × USB 3.0
• Alarm I/O: 16 in / 4 out

Physical

• Dimensions (W × D × H): 445 × 470 × 90 mm
• Weight: ~9 kg (without HDD)
• Housing: Metal, 2U rackmount design

Environmental

• Operating Temperature: −10 °C to +55 °C
• Power Supply: 100–240 VAC, 50/60 Hz
• Consumption: ≤ 50 W (without HDD)

Package Contents

• DS‑9632NI‑M8 NVR × 1
• Power Cord × 1
• Mouse × 1
• Rackmount Kit × 1
• Quick Installation Guide × 1
• Warranty Information × 1
