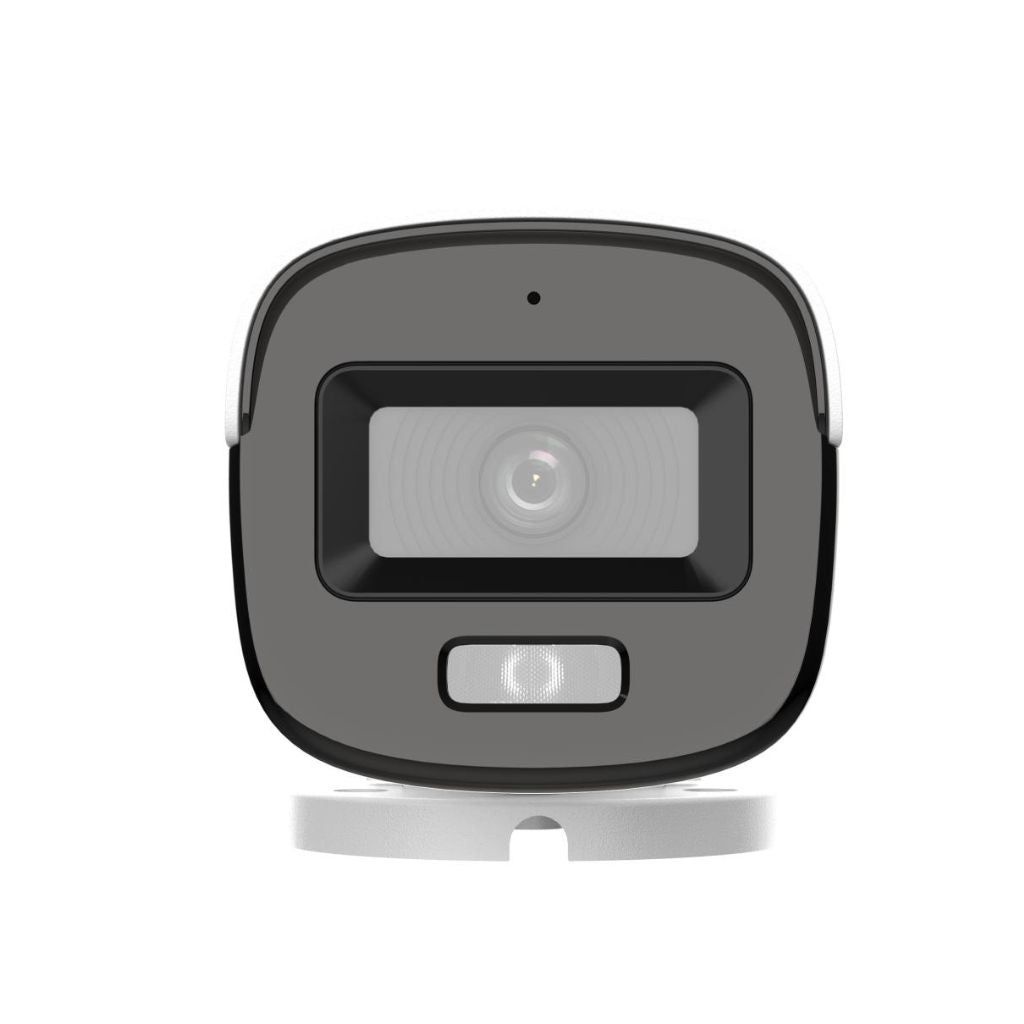

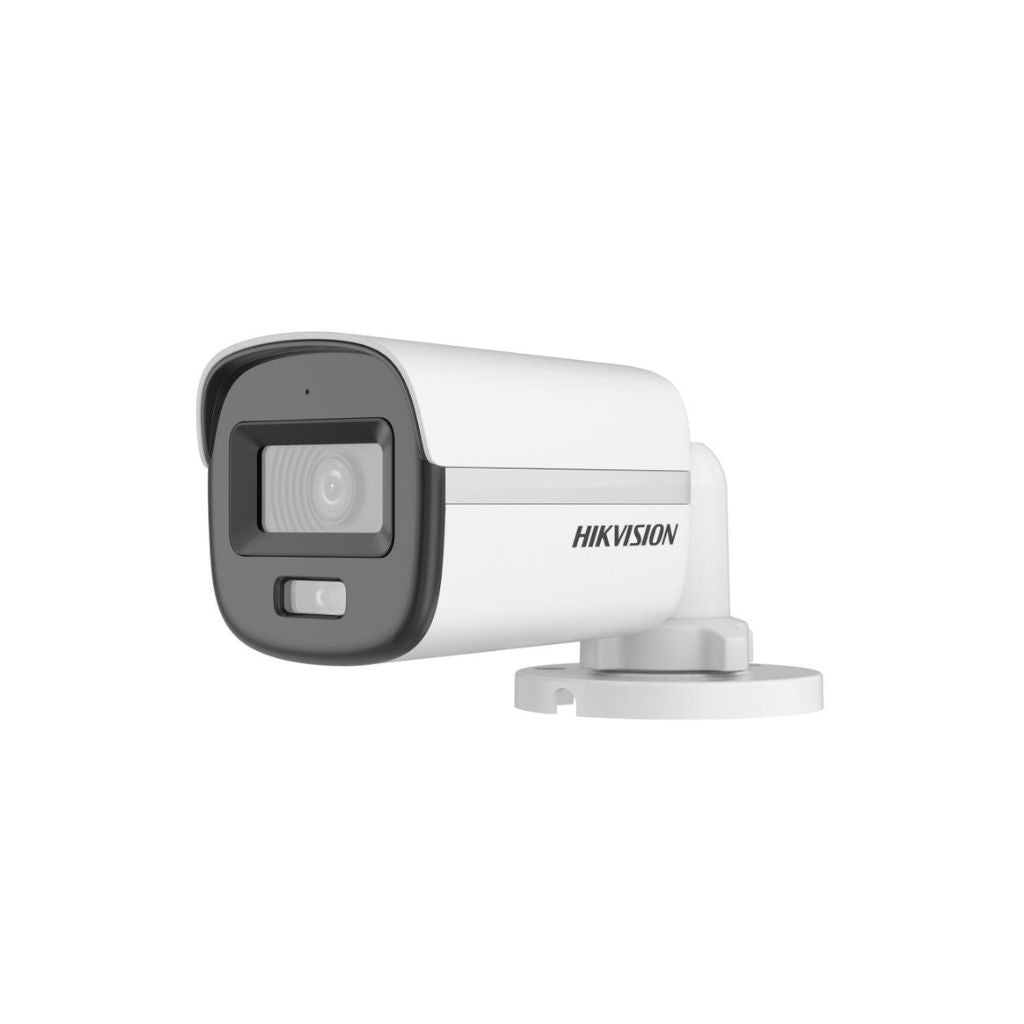

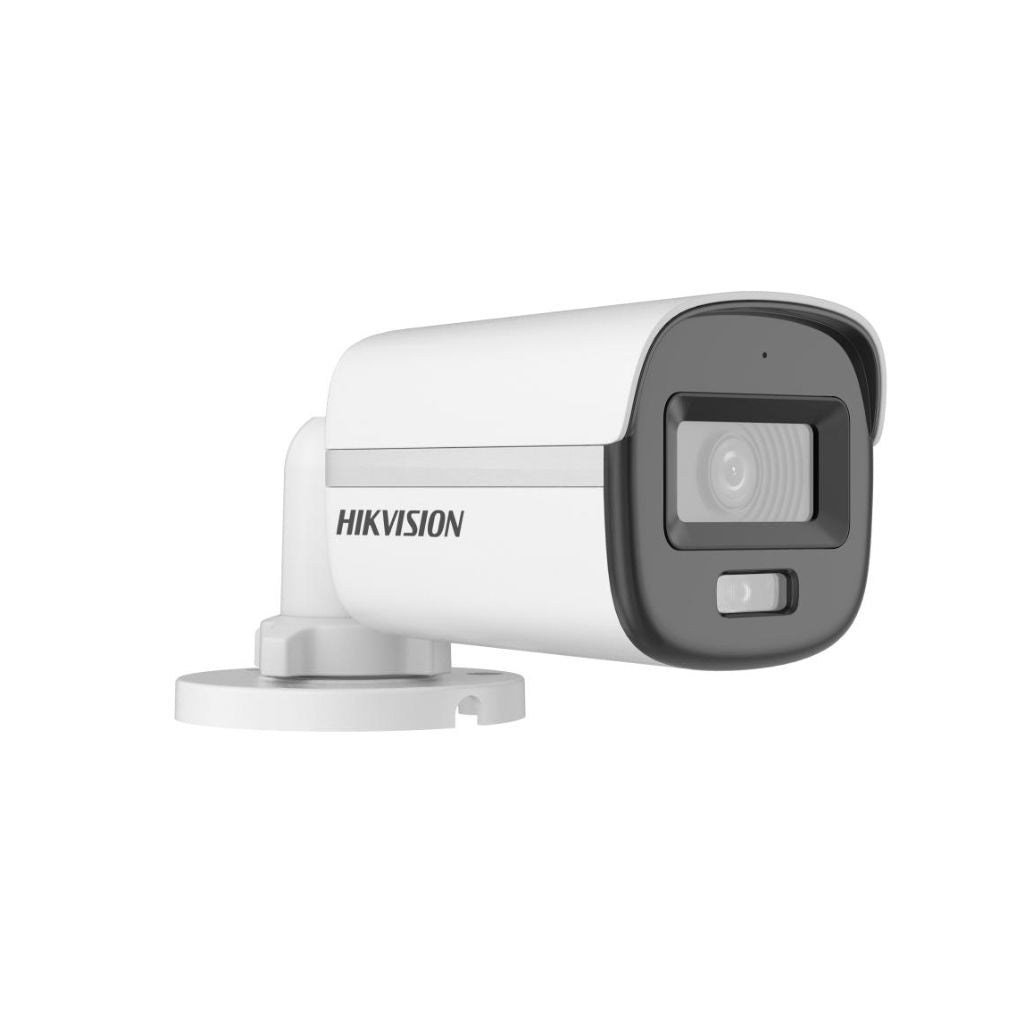

Hikvision DS-2CE10DF0T-PF 2 MP ColorVu Turbo HD Security Camera

Camera Specifications

• Model: Hikvision DS‑2CE10DF0T‑PF
• Type: Turbo HD ColorVu Bullet Security Camera
• Image Sensor: 2 MP CMOS
• Signal System: PAL/NTSC
• Max Resolution: 1920 × 1080 (Full HD)
• Frame Rate: 1080p @ 25/30 fps
• Lens: 2.8 mm fixed focal lens
• Field of View: H ~106°, V ~57°, D ~125°
• Lens Mount: M12

Illuminator

• Supplement Light Type: White Light LED (ColorVu)
• Illumination Range: Up to 20 m
• Day/Night Mode: 24/7 full‑color imaging

Features

• Aperture: F1.0 (excellent low‑light performance)
• Min Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Wide Dynamic Range (WDR): Digital WDR
• Noise Reduction: 3D DNR
• Image Enhancements: BLC, HLC, Smart Light, Brightness, Contrast, Mirror
• Privacy Masking: Up to 4 programmable areas
• Motion Detection: 4 programmable zones

Interface

• Video Output: 1 × HD analog output
• Communication: HIKVISION‑C (UTC OSD control)

General

• Power Supply: 12 VDC ± 25%, 0.3 A, max 3.6 W
• Operating Conditions: –40 °C to 60 °C, ≤ 90% humidity
• Material: Plastic housing
• Protection: IP67 weatherproof
• Dimensions: ~70 × 70 × 154 mm
• Weight: ~350 g

Package Contents

• Camera Unit × 1
• Mounting Kit (screws, anchors)
• User Manual × 1
• Warranty Information × 1
