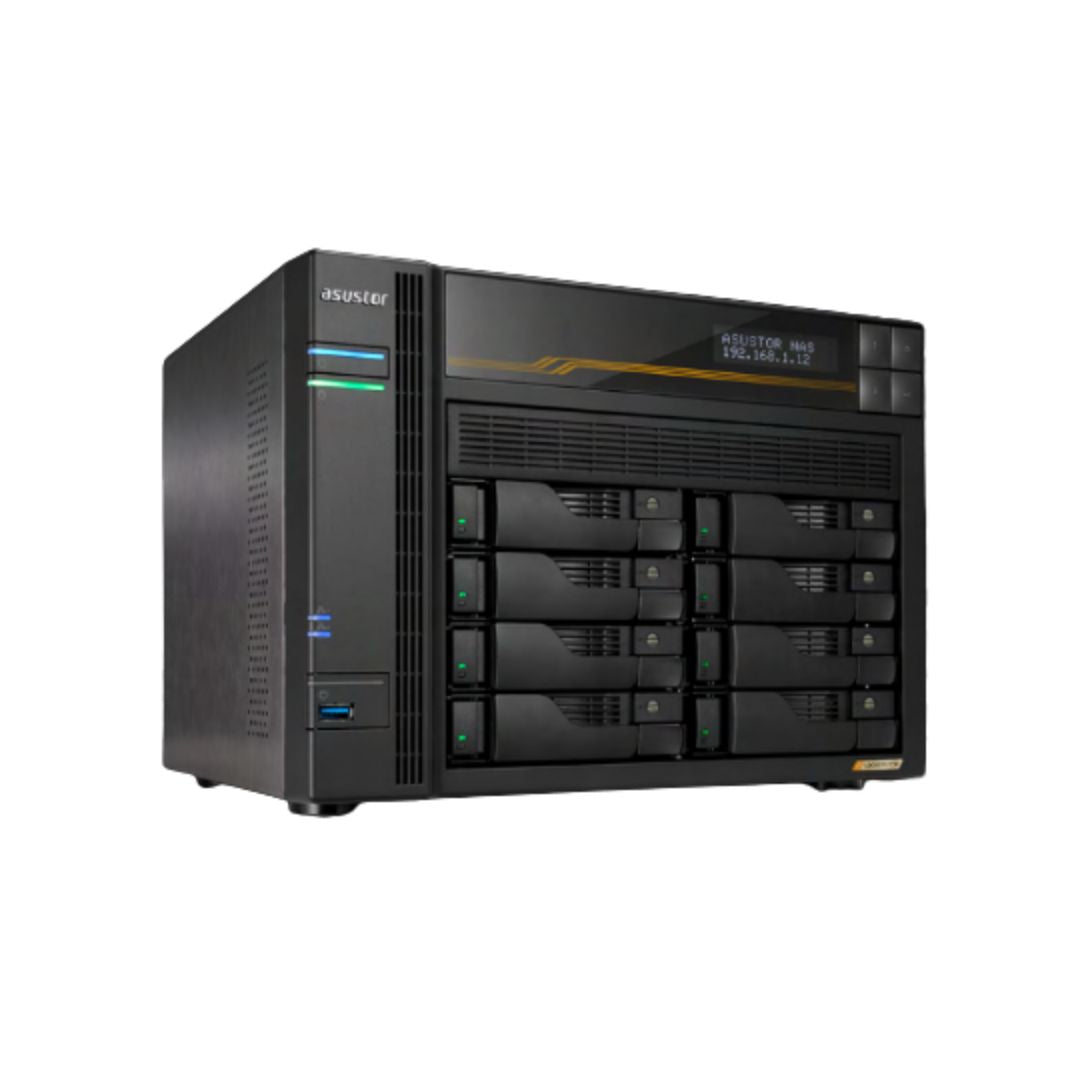

Asustor LOCKERSTOR 8 Gen3 Server - AS6808T

• Model: Asustor LOCKERSTOR 8 Gen3 – AS6808T

• Type: 8‑Bay NAS (Enterprise Network Attached Storage)
 • CPU: AMD Ryzen Embedded V3C14 Quad‑Core, 2.3 GHz (boost up to 3.8 GHz)
 • Memory: 16 GB DDR5‑4800 ECC (expandable up to 64 GB)
 • Drive Bays: 8 × 3.5"/2.5" SATA III/II (HDD & SSD supported)
 • M.2 Slots: 4 × M.2 NVMe PCIe 4.0 (2280 form factor)
 • Maximum Capacity: Up to 144 TB (18 TB × 8) + NVMe expansion
 • RAID Support: RAID 0, 1, 5, 6, 10, JBOD, Single Disk
 • File System: EXT4, Btrfs
 • Network:
  – 2 × 10‑Gigabit Ethernet ports
  – 2 × 5‑Gigabit Ethernet ports
 • USB Ports:
  – 2 × USB4 (40 Gb/s)
  – 3 × USB 3.2 Gen2 Type‑A (10 Gb/s)
 • HDMI Output: 1 × HDMI 2.0b (supports 4K @ 60 Hz playback and transcoding)
 • Cooling: Dual 120 mm fans
 • Dimensions: 230 × 174 × 320 mm
 • Weight: ~7.0 kg
 • Power Consumption: ~55 W (operation), ~25 W (HDD hibernation)
 • Features:
  – ECC DDR5 memory for reliability
  – PCIe 4.0 NVMe SSD support for caching or expansion
  – Dual 10GbE + Dual 5GbE for enterprise networking throughput
  – USB4 connectivity for ultra‑fast external transfers
  – Hardware‑accelerated 4K transcoding for multimedia
  – Snapshot technology with Btrfs for advanced data protection
  – AES‑256 hardware encryption
  – Wake‑on‑LAN and Wake‑on‑WAN support
  – Post‑Quantum Cryptography (PQC) ready with hybrid TLS encryption

This Gen3 LOCKERSTOR 8 is a high‑end enterprise NAS, combining Ryzen Embedded CPU power, ECC DDR5 memory, PCIe 4.0 NVMe SSDs, and quad‑port networking (10GbE + 5GbE) for maximum performance, scalability, and reliability in professional environments.
