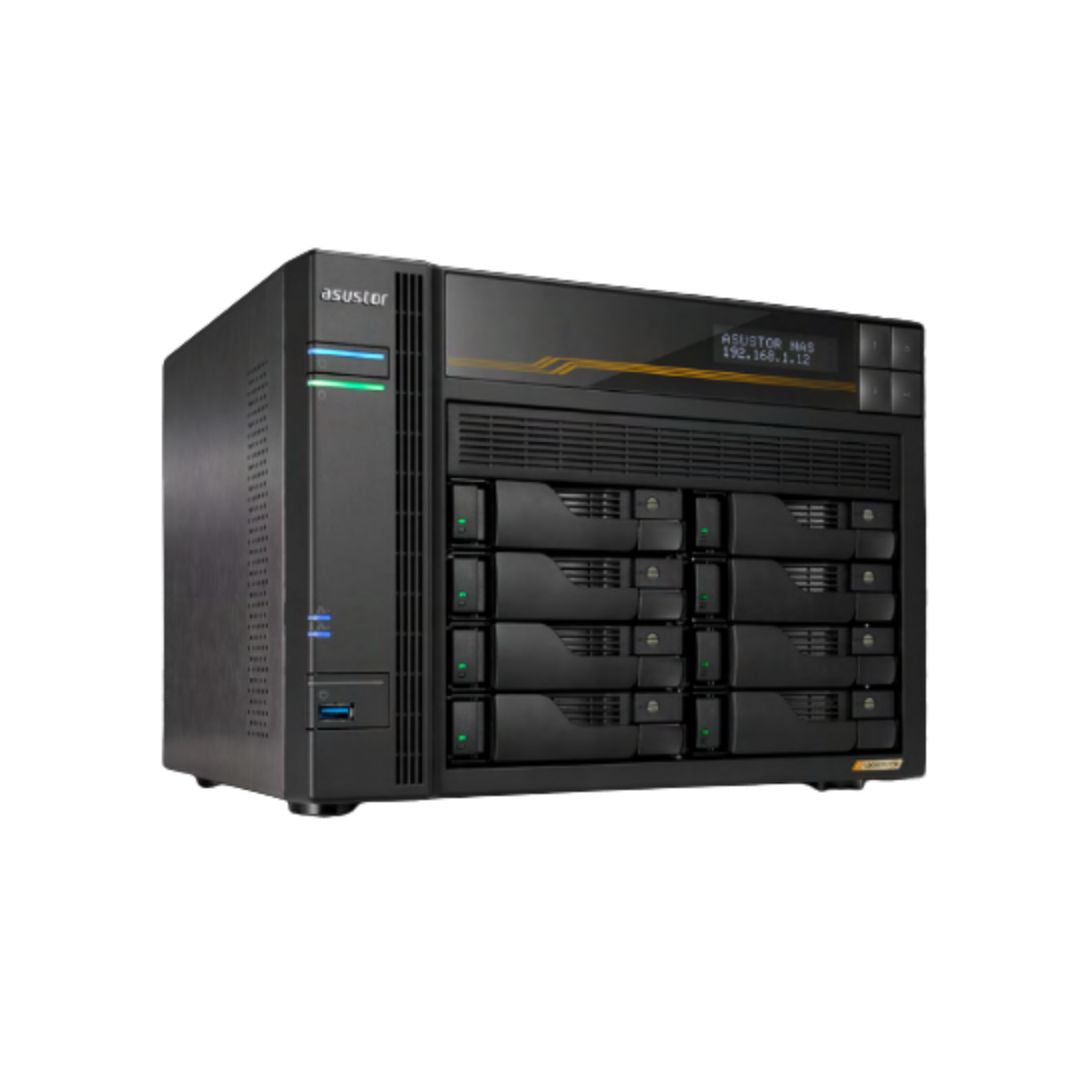

Asustor LOCKERSTOR 10 Server - AS6510T
• Model: Asustor LOCKERSTOR 10 – AS6510T
• Type: 10‑Bay NAS (Enterprise Network Attached Storage)
• CPU: Intel Atom C3538 Quad‑Core, 2.1 GHz (64‑bit, server‑grade)
• Memory: 8 GB DDR4 ECC (expandable up to 64 GB)
• Drive Bays: 10 × 3.5"/2.5" SATA III/II (supports HDD & SSD)
• Maximum Capacity: Up to 180 TB (18 TB × 10, depending on drive support)
• RAID Support: RAID 0, 1, 5, 6, 10, JBOD, Single Disk
• File System: EXT4, Btrfs
• Network:
– 2 × 10‑Gigabit Ethernet ports
– 2 × 2.5‑Gigabit Ethernet ports
• USB Ports:
– 2 × USB 3.2 Gen2 (10 Gb/s)
– 2 × USB 3.2 Gen1
• HDMI Output: 1 × HDMI 2.0a (supports 4K @ 60 Hz playback and transcoding)
• Cooling: Dual 120 mm fans
• Dimensions: 293 × 230 × 300 mm
• Weight: ~9.5 kg
• Power Consumption: ~65 W (operation), ~30 W (HDD hibernation)
• Features:
– ADM OS with App Central (200+ apps)
– ECC DDR4 memory for reliability
– Dual 10GbE + Dual 2.5GbE for enterprise networking throughput
– Hardware‑accelerated 4K transcoding for multimedia
– Snapshot technology with Btrfs for advanced data protection
– AES‑256 hardware encryption
– Wake‑on‑LAN and Wake‑on‑WAN support
– Cloud backup integration (Dropbox, Google Drive, OneDrive)
– Cross‑platform file sharing (Windows, macOS, Linux, Android, iOS)
This LOCKERSTOR 10 – AS6510T is a high‑capacity enterprise NAS, designed for businesses and professional environments that demand large storage, ECC memory reliability, and ultra‑fast networking with dual 10GbE ports.
